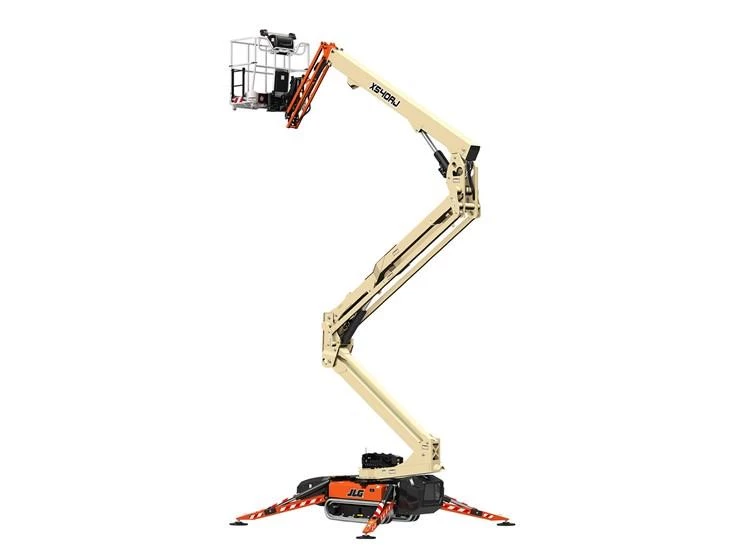

JLG X540AJ Compact Crawler Boom for Sale Our line of electric and hybrid boom lifts are environmentally friendly, energy efficient and help keep productivity high. From job start to completion, JLG has an electric boom lift to meet your needs and keep your job green.
Compact Crawler lifts feature low weight and rubber tracks that allow you to go more places around the job site. They are environmentally friendly with standard AC power, gas or an optional lithium-ion electrical system that doesn’t produce emissions. These lifts climb slopes with ease thanks to their tracked wheel carriage, and their narrow chassis allows for access through gates, yards, standard doorways and public buildings. This makes a Compact Crawler lift ideal for various jobs both indoors and out.
|
| Dimensions | |
|---|---|
| Length | 16.6’ 14’6” (wo/platform) |
| Width | 43.1” (wo/Platform Tracks Extended) 31.3” (wo/Platform Tracks Retracted) 55” (w/platform) |
| Height | 6.6’ |
| Weight | 6,239 lbs. (Diesel) 6,349 lbs. (lithium) 6,592 lbs. (Bi-Energy) |
| Platform Capacity | 500 lbs. |
| Platform Width | 30.4” |
| Platform Extension | 3’ (Length) |
| Platform Rail Height | 3’9” |
| Platform Rotation | 124° (+62, -62 Degrees) |
| Engine/Drivetrain | |
|---|---|
| Engine Make | Kubota (diesel) |
| Engine Type | Diesel: Kubota Electric: Lithium-ion V/120 Ah |
| Horsepower | 14.5 HP |
| Fuel Tank Capacity | 4 Gallons |
| Track Length | 4’10” |
| Drive Speed | 1.6 mph |
| Hydraulic | |
|---|---|
| Hydraulic Capacity | 10.6 Gallons |
| Operational | |
|---|---|
| Stabilizers | Yes |
| Stowed Height | 14’5” |
| Approach Angle | 18° |
| Ground Bearing Pressure | 36 PSI (outriggers) 8.8 PSI (tracks) |
| Outrigger Footprint Length | 9.6’ |
| Outrigger Footprint Width | 9.6’ |
| Outrigger Pad Diameter | 11.8” |
| Depart Angle | 19° |
| Performance | |
|---|---|
| Tracks | Non-marking tracks (standard) |
| Jib | 89° (Range of Articulation) |
| Outriggers | Yes |
| Gradeability | 28% |
| Platform Height | 54’ |
| Swing | 360° |
| Swing Type | Non-Continuous |
| Working Height | 60’ |
| Platform Length | 55” |
| Outreach | 24’ 26’ (working) |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | JLG |
| MODEL | X540AJ |
