JLG X660SJ

New Compact Crawler Boom for Sale

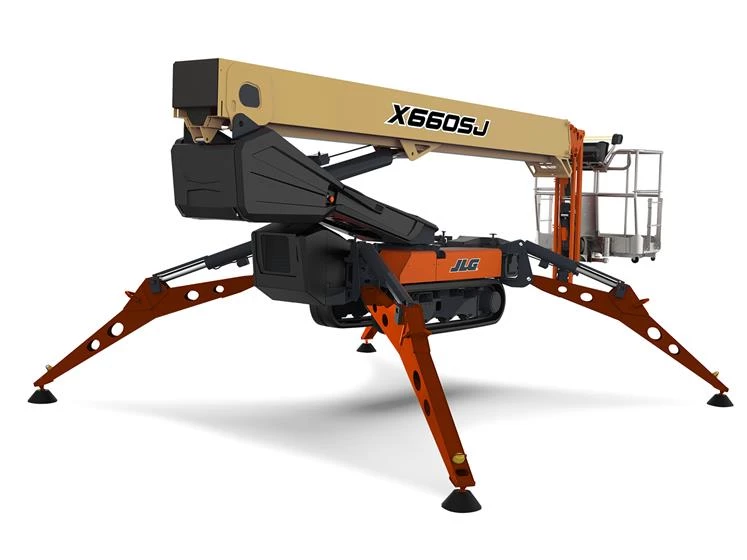

New JLG X660SJ Compact Crawler Boom for Sale

Our line of electric and hybrid boom lifts are environmentally friendly, energy efficient and help keep productivity high. From job start to completion, JLG has an electric boom lift to meet your needs and keep your job green.

  • QuikCharge diesel powered hybrid option provides automatic charging for continuous machine operation
  • Choose from several series with various height and reach specifications to find the right fit for rough, muddy job sites or narrow, congested indoor areas

Compact Crawler lifts feature low weight and rubber tracks that allow you to go more places around the job site. They are environmentally friendly with standard AC power, gas or an optional lithium-ion electrical system that doesn’t produce emissions. These lifts climb slopes with ease thanks to their tracked wheel carriage, and their narrow chassis allows for access through gates, yards, standard doorways and public buildings. This makes a Compact Crawler lift ideal for various jobs both indoors and out.

  • Best in class 500-lb unrestricted platform capacity, with SkyGuard SkyLine™ standard.
  • Environmentally friendly with standard AC powered boom functions with diesel, optional bi-energy or optional lithium-ion electrical system for emission-free operation.
  • Transport with ease by a forklift or crane with forklift pockets and lifting eyes, and fits through double doorway.
  • Enhance efficiency with unique "Go Home" and "Go Back to Work" functions for ease of returning to stowed or recorded work position.
Dimensions
Length 21’11”
19’1” (wo/platform)
Width 2’11”
Height 6’6”
Platform Capacity 500 lbs.
Platform Width 25.5”
Engine/Drivetrain
Engine Make Kubota
Engine Model Z602
Engine Type Diesel
Horsepower 14.5 HP
Fuel Tank Capacity 7.4 Gallons
Track Length 5’7”
Hydraulic
Hydraulic Capacity 10.6 Gallons
Operational
Approach Angle 19°
Leveling Capability 15°
Ground Bearing Pressure 79.7 PSI (Tracks)
9.08 PSI (Outriggers)
Outrigger Footprint Length 14’1”
18’10” (Narrow Length)
Outrigger Footprint Width 13’4”
7’11” (Narrow Width)
Stabilization Area 14’1” x 13’4” (Total for outrigger footprint from outer edge)
18’10” x7’11” (Reduced for outrigger footprint from outer edge)
Outrigger Footprint Weight 7,385 lbs. (Diesel & Bi-Energy)
7,275 lbs. (Lithium Ion)
Outrigger Pad Diameter 9”
Performance
Tracks Standard Non-marking
Max Travel Speed 1.2 MPH (Diesel)
1.6 MPH (Lithium Ion & Bi-Energy)
Jib 89° (0/-89) (Range of Articulation)
Gradeability 40%
Platform Height 65’7”
Swing 360 Degrees Non-continuous
Working Height 71’7”
Platform Length 51.5”
Outreach 39’ (working horizontal outreach)
  • 110V AC Receptacle in Platform 58 x 30-in
  • 360 Degree Non-Continuous Swing
  • 5-ft Articulating Jib
  • AC Motor for Indoor Operation
  • Air/Water Line to Platform
  • Electronic Controls with One-Touch Outrigger Deployment
  • Emergency Lowering Pump
  • Flashing Amber Beacon
  • Fork Lift Pockets
  • Lifting Eyes
  • Load Sensing System
  • Non-Marking Tracks
  • Powered Track Widening
  • Proportional Controls
  • Removable Aluminum Platform Dual Side Entry
  • Removable Controller
  • SkyGuard SkyLine
  • Synthetic Biodegradable Hydraulic Oil
  • Telematics-Ready Harness
  • Tie Down Lugs
  • Bi-Energy: Why choose between engine and battery to power your JLG® Compact Crawler Boom when you can have both!
    • The bi-energy option on select compact crawlers gives you the flexibility to choose your independent power source based on your job site, your needs.  A machine with bi-energy includes the models’ full-size Lithium-Ion battery pack and diesel engine to maintain high performance and peak efficiency.
      • Key Features:
        • Maximize productivity by equipping the machine with two, full-size, independent power sources
        • Peak efficiency while traversing around or to a job site using diesel engine power, environmental-friendly working indoors using Lithium-Ion battery power
        • Ease of familiarity with same joysticks and keyboard as other remotes
        • Optimum design with only two new buttons to switch between the independent power sources

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE JLG
MODEL X660SJ

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

JLG X660SJ

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New JLG X660SJ Compact Crawler Boom for Sale

Our line of electric and hybrid boom lifts are environmentally friendly, energy efficient and help keep productivity high. From job start to completion, JLG has an electric boom lift to meet your needs and keep your job green.

  • QuikCharge diesel powered hybrid option provides automatic charging for continuous machine operation
  • Choose from several series with various height and reach specifications to find the right fit for rough, muddy job sites or narrow, congested indoor areas

Compact Crawler lifts feature low weight and rubber tracks that allow you to go more places around the job site. They are environmentally friendly with standard AC power, gas or an optional lithium-ion electrical system that doesn’t produce emissions. These lifts climb slopes with ease thanks to their tracked wheel carriage, and their narrow chassis allows for access through gates, yards, standard doorways and public buildings. This makes a Compact Crawler lift ideal for various jobs both indoors and out.

  • Best in class 500-lb unrestricted platform capacity, with SkyGuard SkyLine™ standard.
  • Environmentally friendly with standard AC powered boom functions with diesel, optional bi-energy or optional lithium-ion electrical system for emission-free operation.
  • Transport with ease by a forklift or crane with forklift pockets and lifting eyes, and fits through double doorway.
  • Enhance efficiency with unique "Go Home" and "Go Back to Work" functions for ease of returning to stowed or recorded work position.
GENERAL INFORMATION
Manufacturer
JLG
Model Year
Model
X660SJ
Condition
NEW
Dimensions
Length
21’11” 19’1” (wo/platform)
Width
2’11”
Height
6’6”
Platform Capacity
500 lbs.
Platform Width
25.5”
Engine/Drivetrain
Engine Make
Kubota
Engine Model
Z602
Engine Type
Diesel
Horsepower
14.5 HP
Fuel Tank Capacity
7.4 Gallons
Track Length
5’7”
Hydraulic
Hydraulic Capacity
10.6 Gallons
Operational
Approach Angle
19°
Leveling Capability
15°
Ground Bearing Pressure
79.7 PSI (Tracks) 9.08 PSI (Outriggers)
Outrigger Footprint Length
14’1” 18’10” (Narrow Length)
Outrigger Footprint Width
13’4” 7’11” (Narrow Width)
Stabilization Area
14’1” x 13’4” (Total for outrigger footprint from outer edge) 18’10” x7’11” (Reduced for outrigger footprint from outer edge)
Outrigger Footprint Weight
7,385 lbs. (Diesel & Bi-Energy) 7,275 lbs. (Lithium Ion)
Outrigger Pad Diameter
9”
Performance
Tracks
Standard Non-marking
Max Travel Speed
1.2 MPH (Diesel) 1.6 MPH (Lithium Ion & Bi-Energy)
Jib
89° (0/-89) (Range of Articulation)
Gradeability
40%
Platform Height
65’7”
Swing
360 Degrees Non-continuous
Working Height
71’7”
Platform Length
51.5”
Outreach
39’ (working horizontal outreach)
