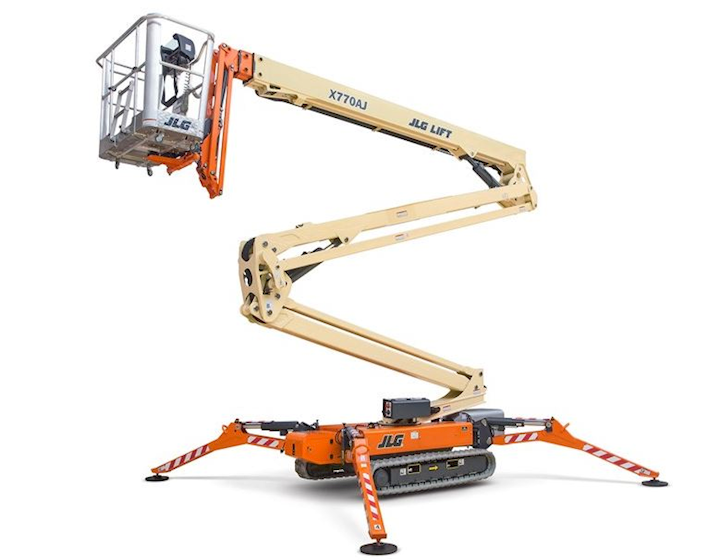

New JLG X770AJ Compact Crawler Boom for Sale

Now you can go more places around the job site thanks to the low weight and rubber tracks on the new Compact Crawler Boom. These machines are environmentally friendly with standard AC power, gas or an optional Lithium-ion electrical system that doesn’t produce emissions. A tracked wheel carriage climbs slopes, and a narrow chassis allows for access through gates, yards, standard doorways and public buildings.
Dimensions
Length 20'9"
Width 3'3"
Height 6'7"
Working Height: 84 ft
Weight 9665 lb
Engine/Drivetrain
Engine Type Diesel: Diesel Kubota D902 21.6 hp
Electric: 100Ah 83V Lithium-Ion
Fuel Tank Capacity 7 gal.
Ground Pressure Bearing Pressure: 8 psi
Bearing Pressure-Outriggers: 65 psi
Performance
Tracks Length: 6'10"
Jib Vertical Jib Rotation-89 Degrees
Outriggers Yes
Footprint Length: 14 ft
Footprint Width: 13 ft 6 in
Gradeability 40 %
Capacity Platform-500 lb
Platform Height 77'5"
Platform Size Platform Dimension A: 4'4"
Platform Dimension B: 2'3"
Swing 360 Degrees
Swing Type Non-Continuous
  • Lift more materials thanks to industry-leading 500 lb capacity
  • Over 84 ft of working height and a rotating platform puts tasks within reach
  • Self-leveling outriggers level machine and non-marking rubber tracks minimize impact over sensitive surfaces
  • Climbs slopes, so you can work indoors or outside, and a narrow chassis fits through doorways and gates
  • Bi-Energy  Power Option – Includes Diesel Engine and Lithium-Ion Battery
  • Black Deep-Tread Tracks
  • Platform, Single-Person 31” x 24”

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE JLG
MODEL X770AJ

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

JLG X770AJ

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New JLG X770AJ Compact Crawler Boom for Sale

Now you can go more places around the job site thanks to the low weight and rubber tracks on the new Compact Crawler Boom. These machines are environmentally friendly with standard AC power, gas or an optional Lithium-ion electrical system that doesn’t produce emissions. A tracked wheel carriage climbs slopes, and a narrow chassis allows for access through gates, yards, standard doorways and public buildings.
GENERAL INFORMATION
Manufacturer
JLG
Model Year
Model
X770AJ
Condition
NEW
Dimensions
Length
20'9"
Width
3'3"
Height
6'7" Working Height: 84 ft
Weight
9665 lb
Engine/Drivetrain
Engine Type
Diesel: Diesel Kubota D902 21.6 hp Electric: 100Ah 83V Lithium-Ion
Fuel Tank Capacity
7 gal.
Ground Pressure
Bearing Pressure: 8 psi Bearing Pressure-Outriggers: 65 psi
Performance
Tracks
Length: 6'10"
Jib
Vertical Jib Rotation-89 Degrees
Outriggers
Yes Footprint Length: 14 ft Footprint Width: 13 ft 6 in
Gradeability
40 %
Capacity
Platform-500 lb
Platform Height
77'5"
Platform Size
Platform Dimension A: 4'4" Platform Dimension B: 2'3"
Swing
360 Degrees
Swing Type
Non-Continuous
