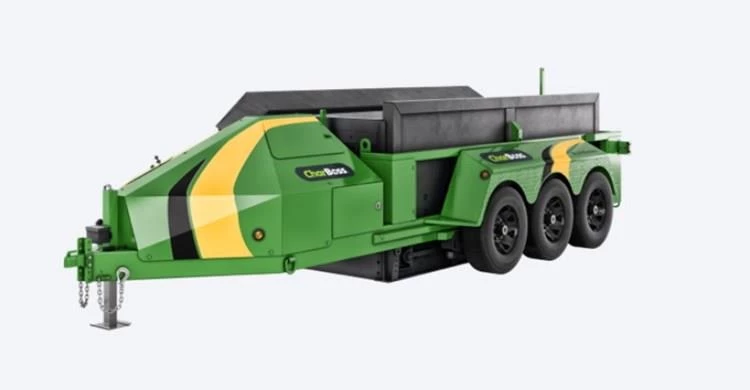

New Air Burners CharBoss T-26 Towable Firebox for Sale The patented CharBoss is a machine design that was developed through a Cooperative Research And Development Agreement (CRADA) between Air Burners and the US Forest Service. Based on the Air Burners “BurnBoss” design, this machine was further developed to automatically produce Biochar while eliminating clean wood and vegetative waste. Currently used primarily in the effort to prevent wildfires. Today, this advanced wood waste reduction equipment is used in many applications, including construction and agriculture. The CharBoss is a self-contained, completely assembled above-ground Air Curtain Burner with a refractory lined burn-container and internal system to create biochar from the waste materials. |
| Specs | |
|---|---|
| Biochar Production | 350 lb./hr. |
| Body | |
|---|---|
| Air Curtain | Custom heavy duty direct coupled air fan; Steel manifold welded in position |
| Tongue Weight | 1,400 lbs. |
| Dimensions | |
|---|---|
| Length | Overall: 21’8” FireBox: 12’ |
| Width | Overall: 7’8” FireBox: 4’ |
| Height | Overall: 6’8” FireBox: 4’ |
| Weight | 17,500 lbs. |
| Wall Size | 4” thick side walls |
| Engine | |
|---|---|
| Engine Make | Hatz |
| Engine Model | 3H50T |
| Engine Type | Diesel Engine Tier 4 |
| Cylinders | 3 |
| Horsepower | 24.6 HP |
| Cooling | Liquid Cooled |
| Fuel Consumption | Approx. 1.1 gal/hr. Ultra Low Sulfur Diesel Fuel Approx. 12 gal/hr. Quenching bin requires minimum 30 gal. at start up |
| Fuel Tank Capacity | 20 Gallons allows for approximately 18 hours of run time |
| Power | Full enclosure; security locks around power source |
| Hydraulic | |
|---|---|
| Hydraulics | Hydraulics operates system to create and expel biochar into external quenching device. |
| Operational | |
|---|---|
| Brakes | Self-adjusting electric brakes on all wheels: Break-away system |
| Hitch | Heavy duty adjustable hitch, pintle or ball type 2 5/16” |
| Jack | Mechanical jack stand |
| Average Throughput | ½-1 t/hr. (Average – See Note) Typical woody feedstock: clean wood waste; forest slash, tree trimmings, vineyard/orchard debris, etc. |
| Firebox | Refractory panels filled with proprietary thermal-ceramic material cast into steel trays; panels kiln cured before assembly with proprietary stress relieving and crack propagation reduction features. Firebox and transport system is raised and lowered by hydraulic actuators |
| Running Gear | Patented trailer design includes a fully welded steel frame, triple torsion axles and heavy duty tires; Standard trailer lighting package |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Air Burners |
| MODEL | CharBoss T-26 |
