Air Burners S119R

Air Burners S119R

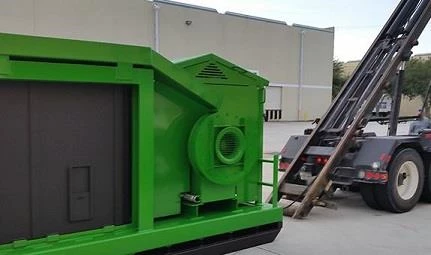

New Air Burner S-119R Towable Firebox for Sale

A self-contained, completely assembled above ground Air Curtain Burner (air curtain incinerator or FireBox) with a refractory lined burn container and double steel floor and fittings for cable-hoist trucks in accordance with ANSI Specification Z245.60 for portable applications. Designed for the high temperature burning of forest slash, agricultural green waste, land clearing debris, storm debris, and other waste streams in compliance with the requirements of US EPA 40CFR60. The FireBox is also used for disaster recovery and Department of Homeland Security contingencies. OUR STANDARD VERSION IS THE CABLE HOIST VERSION. WE ALSO OFFER A HOOK LIFT VERSION. Shipped from the factory completely assembled ready for immediate use.

ELIMINATE WOOD AND VEGETATIVE WASTE WITH NO SETUP TIME

Roll-off versions simplify FireBox transportability. For this reason, they enjoy a special place in the heavy equipment rental business to which smaller businesses would turn for cleanup jobs at constructions and land clearing sites, work that is only carried out for a limited time. At large home development sites, the Roll-off FireBox is delivered in addition to standard dumpsters or cans. The clean, burnable wood waste is eliminated onsite and the remaining trash is taken to landfills in the traditional way. However, the cost of waste management is reduced, as the number of runs to the landfill plus the high tipping fees have been minimized.

Even smaller firms in the site preparation, agriculture or forestry industries that do not own Roll-off trucks may opt for Roll-off FireBoxes over standard units, because it is not difficult to hire a Roll-off truck locally to have it moved from one worksite to another. The Roll-off trucks require no modifications.  Both ANSI compatible cable hoist and hook lifts are available.
Body
Air Curtain Custom heavy duty air fan
Dimensions
Length Overall: 27’6” (Cable-Hoist Version) 27'1" (Hook-Lift Version)
Fire Box: 19’
Width Overall: 7' 2”
Fire Box: 5’
Height Overall: 8’ 3”
Fire Box: 6’
Weight 39,900 lbs.
Engine
Horsepower 49 HP
Fuel Consumption Approx. 1.9 Gal/Hr
Fuel Tank Capacity 58 Gallon
Power Three-cylinder Turbo Diesel Engine approx. 49 HP, HATZ Model 3H50TIC (Requires no DEF) or equivalent engine; Emissions certified US EPA Tier 4 FINAL; Engine mounted PTO
Operational
Average Throughput 3-5 Tons per Hour
Achievable through-put depends on several variables, especially the nature of the waste material, the burn chamber temperature and the loading rate. All weights and dimensions are approximate and metric conversions are rounded. Specifications are subject to change without notice.
Firebox 4" (102 mm) thick refractory panels filled with proprietary thermal ceramic material; Two full height rear doors; Two ignition holes
  • Safety Systems: Engine over temperature and overspeed shut down; Loss of cooling fluid shutdown; Loss of oil pressure shutdown; Lockable steel front deck security enclosure
  • Instrument Panel: MBW electronic engine control with preset throttle settings: key switch, tachometer, hour meter, fuel gauge, oil pressure and water temperature and safety shutdown features
  • Transportation & Set-Up: Shipped completely assembled; Ready for immediate use; Lifting pads provided for crane lifting
  • Ash clean-out rake with standard universal quick disconnect

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
