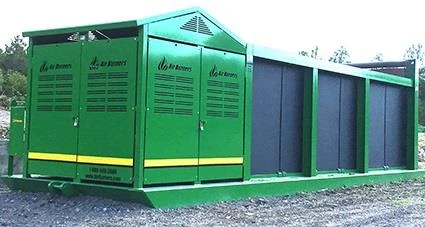

New Air Burner S-220 Towable Firebox for Sale

A self-contained, completely assembled above ground Air Curtain Burner (air curtain incinerator or FireBox) with a refractory lined burn-container for portable and permanent (stationary) applications. Designed for the high temperature burning of forest slash, agricultural green waste, land clearing debris, storm debris, and other waste streams in compliance with the requirements of US EPA 40CFR60. Shipped from the factory completely assembled ready for immediate use and does not require disassembly for relocation. The FireBox is also used for disaster recovery and Department of Homeland Security contingencies. Electrically powered version (S220E) available for permanent (stationary) installations.

ELIMINATE WOOD AND VEGETATIVE WASTE WITH NO SETUP TIME

The fully assembled portable FireBox was invented by Air Burners. Ours are the only machines tested by the U.S. EPA, the U.S. Forest Service, the U.S. Department of Energy, and the U.S. Military to prove their specifications and performance, giving you confidence our machines work. The Air Burners FireBox is the most economical and environmentally sound method of eliminating wood and vegetative waste. The FireBox will reduce your waste to approximately two percent of its original weight, leaving you with a clean carbon ash that can be turned into the local soil.  With other equipment, grinding and hauling to the landfill are a big part and cost of the forest-clearing job.  With the FireBox, land clearing is much easier.  After burning all day only a small amount of ash and BioChar remain, you will be increasing soil health (USDA) if it is turned back into the soil. Job done.

The diesel-powered biomass burning machines are efficient. The 200 Series machines will only consume 2.0 gallons of diesel fuel at full operating speed, and no other fuels are required because the waste is allowed to burn naturally without the addition of hydrocarbon based fuels. The FireBox will save you money on your waste elimination. The 200 Series unit has a frame size of approximately 8 feet high by 8 feet wide. We currently offer only one machine in the 200 Series: the S220. The S220 has a manifold length of 20 feet. They typically ship by flat deck or drop deck trailers for over the road transport. The FireBox can be either dragged onto the trailer with a winch or lifted onto the trailer. Like all of our FireBoxes, this air curtain burner unit can be dragged around the site on its skids. The 200 Series units have two doors at the rear for ash and BioChar removal.
Body
Air Curtain Custom heavy duty fan
Dimensions
Length Overall: 30’1”
Fire Box: 19’8”
Width Overall: 8’6”
Fire Box: 6’2”
Height Overall: 8’6”
Fire Box: 7’1”
Weight 36,650 lbs.
Engine
Cylinders 3
Horsepower 49 HP
Fuel Consumption Approx. 2 Gal/Hr
Fuel Tank Capacity 58 Gallon
Power Two options offered: (1) Three-cylinder Turbo Diesel Engine approx. 49 HP, HATZ Model 3H50TIC (Requires no DEF) or equivalent engine; Emissions certified US EPA Tier 4 FINAL; Engine mounted PTO. (2) Three-phase electric motor with VFD control panel.
Operational
Average Throughput 5-7 Tons per Hour
Achievable through-put depends on several variables, especially the nature of the waste material, the burn chamber temperature and the loading rate. All weights and dimensions are approximate and metric conversions are rounded. Specifications are subject to change without notice.
Firebox 4" (102 mm) thick refractory wall panels filled with proprietary thermal ceramic material; Two full height refractory rear doors; Two ignition holes; FireBox open to the ground
  • Safety Systems: Engine over temperature and overspeed shut down; Loss of cooling fluid shutdown; Loss of oil pressure shutdown; Lockable steel front deck security enclosure
  • Instrument Panel: MBW electronic engine control with preset throttle settings: key switch, tachometer, hour meter, fuel gauge, oil pressure and water temperature and safety shutdown features
  • Transportation & Set-Up: Shipped completely assembled; Ready for immediate use; Lifting pads provided for crane lifting; Unit can be dragged onsite on its skids

Ash clean-out rake with standard universal quick disconnect; Rough-terrain removable dolly; Electric power generating option available

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Air Burners
MODEL S220

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Air Burners S220

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Air Burner S-220 Towable Firebox for Sale

A self-contained, completely assembled above ground Air Curtain Burner (air curtain incinerator or FireBox) with a refractory lined burn-container for portable and permanent (stationary) applications. Designed for the high temperature burning of forest slash, agricultural green waste, land clearing debris, storm debris, and other waste streams in compliance with the requirements of US EPA 40CFR60. Shipped from the factory completely assembled ready for immediate use and does not require disassembly for relocation. The FireBox is also used for disaster recovery and Department of Homeland Security contingencies. Electrically powered version (S220E) available for permanent (stationary) installations.

ELIMINATE WOOD AND VEGETATIVE WASTE WITH NO SETUP TIME

The fully assembled portable FireBox was invented by Air Burners. Ours are the only machines tested by the U.S. EPA, the U.S. Forest Service, the U.S. Department of Energy, and the U.S. Military to prove their specifications and performance, giving you confidence our machines work. The Air Burners FireBox is the most economical and environmentally sound method of eliminating wood and vegetative waste. The FireBox will reduce your waste to approximately two percent of its original weight, leaving you with a clean carbon ash that can be turned into the local soil.  With other equipment, grinding and hauling to the landfill are a big part and cost of the forest-clearing job.  With the FireBox, land clearing is much easier.  After burning all day only a small amount of ash and BioChar remain, you will be increasing soil health (USDA) if it is turned back into the soil. Job done.

The diesel-powered biomass burning machines are efficient. The 200 Series machines will only consume 2.0 gallons of diesel fuel at full operating speed, and no other fuels are required because the waste is allowed to burn naturally without the addition of hydrocarbon based fuels. The FireBox will save you money on your waste elimination. The 200 Series unit has a frame size of approximately 8 feet high by 8 feet wide. We currently offer only one machine in the 200 Series: the S220. The S220 has a manifold length of 20 feet. They typically ship by flat deck or drop deck trailers for over the road transport. The FireBox can be either dragged onto the trailer with a winch or lifted onto the trailer. Like all of our FireBoxes, this air curtain burner unit can be dragged around the site on its skids. The 200 Series units have two doors at the rear for ash and BioChar removal.
GENERAL INFORMATION
Manufacturer
Air Burners
Model Year
Model
S220
Condition
NEW
Body
Air Curtain
Custom heavy duty fan
Dimensions
Length
Overall: 30’1” Fire Box: 19’8”
Width
Overall: 8’6” Fire Box: 6’2”
Height
Overall: 8’6” Fire Box: 7’1”
Weight
36,650 lbs.
Engine
Cylinders
3
Horsepower
49 HP
Fuel Consumption
Approx. 2 Gal/Hr
Fuel Tank Capacity
58 Gallon
Power
Two options offered: (1) Three-cylinder Turbo Diesel Engine approx. 49 HP, HATZ Model 3H50TIC (Requires no DEF) or equivalent engine; Emissions certified US EPA Tier 4 FINAL; Engine mounted PTO. (2) Three-phase electric motor with VFD control panel.
Operational
Average Throughput
5-7 Tons per Hour Achievable through-put depends on several variables, especially the nature of the waste material, the burn chamber temperature and the loading rate. All weights and dimensions are approximate and metric conversions are rounded. Specifications are subject to change without notice.
Firebox
4" (102 mm) thick refractory wall panels filled with proprietary thermal ceramic material; Two full height refractory rear doors; Two ignition holes; FireBox open to the ground
