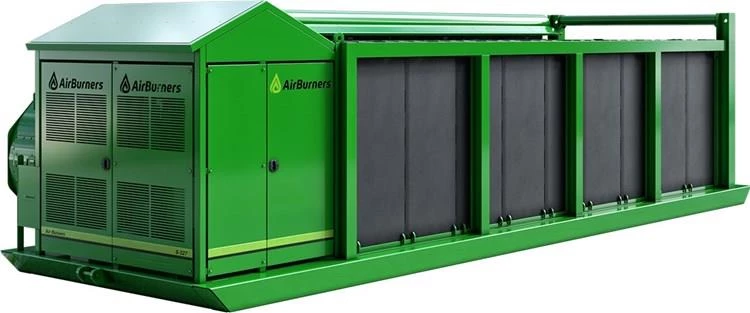

New Air Burner S-330 Towable Firebox for Sale The S330 is AirBurner's largest FireBox that can be shipped from the factory fully assembled. As it is mostly used in stationary placements at landfills and transfer stations, it is often purchased as S330E equipped with a 75 HP electric motor and easy to operate pre-programmed speed controller. As with all our machines, we offer on-site operator training and certification and internet-based remote webinar training. Training by factory instructors can be very helpful in getting a good start with your new machine and to assure safe operation in compliance with local permits and regulations. LARGEST FULLY ASSEMBLED FIREBOXThe fully assembled portable FireBox was invented by Air Burners. Ours are the only machines tested by the U.S. EPA, the U.S. Forest Service, the U.S. Department of Energy, and the U.S. Military to prove their specifications and performance, giving you confidence our machines work. The Air Burners FireBox is the most economical and environmentally sound method of eliminating wood and vegetative waste. The FireBox will reduce your waste to approximately two percent of its original weight, leaving you with a clean carbon ash that can be turned into the local soil. With other equipment, grinding and hauling to the landfill are a big part and cost of the forest-clearing job. With the FireBox, land clearing is much easier. After burning all day only a small amount of ash and BioChar remain, you will be increasing soil health (USDA) if it is turned back into the soil. Job done. The diesel-powered biomass burning machines are efficient. The 300 Series machines will only consume 3.0 gallons of diesel fuel at full operating speed, and no other fuels are required because the waste is allowed to burn naturally without the addition of hydrocarbon based fuels. The FireBox will save you money on your waste elimination. The 300 Series unit has a frame size of approximately 12 feet high by 12 feet wide. We currently offer two machines in the 300 Series: the S327 and the S330. The S327 has a manifold length of 27 feet and the S330 has a manifold length of 30 feet. They typically ship by flat deck, RGN or drop deck trailers for over the road transport. They are very large machines and will require oversize permits for most roads. The FireBox can be either dragged onto the trailer with a winch or lifted onto the trailer. Like all of our FireBoxes, these air curtain burner units can be dragged around the site on their skids. The 300 Series units have two doors at the rear for ash and BioChar removal. |
Body | |
---|---|
Air Curtain | Custom heavy duty fan |
Dimensions | |
---|---|
Length | 40' 4" Overall 30' 2" Fire Box |
Width | 11' 10" Overall 8' 5" Fire Box |
Height | 9' 6" Overall 8' 1" Fire Box |
Weight | 59,000 lb. |
Engine | |
---|---|
Horsepower | 75 HP |
Fuel Consumption | 3.0 gal/hr |
Fuel Tank Capacity | 110 Gallon |
Power | Two options offered: (1) Four-cylinder Turbo Diesel Engine approx. 75 HP, HATZ Model 4H50TIC (Requires no DEF) or equivalent engine; Emissions certified US EPA Tier 4 FINAL; Engine mounted PTO. (2) Three-phase electric motor with VFD control panel. |
Operational | |
---|---|
Average Throughput | 11-13 Tons per Hour Achievable through-put depends on several variables, especially the nature of the waste material, the burn chamber temperature and the loading rate. All weights and dimensions are approximate and metric conversions are rounded. Specifications are subject to change without notice. |
Firebox | 4" (102 mm) thick refractory wall panels filled with proprietary thermal ceramic material; Two full height refractory rear doors; Three ignition holes; FireBox open to the ground |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
Main Technical Specifications | |
---|---|
MAKE | Air Burners |
MODEL | S330 |
