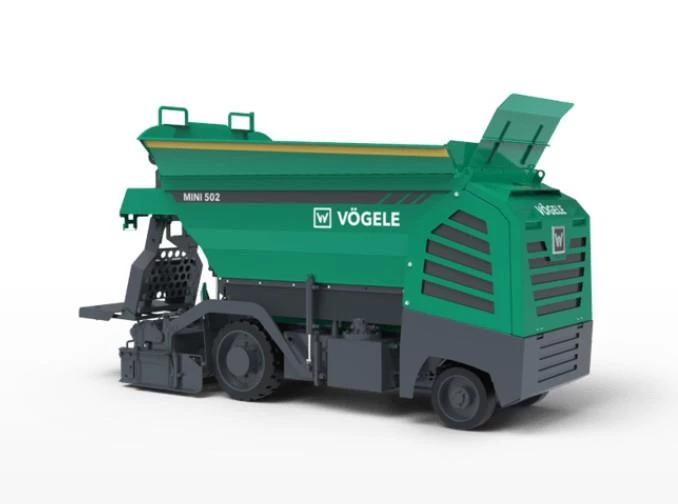

New Vogele MINI 502 Road Paver for Sale The extensive portfolio of VÖGELE pavers is subdivided into five product classes: the Mini, Compact, Universal, Highway, and Special Class. These cover a range of pave widths from 25 cm to 18 m (10 in to 59 ft 1 in). The road pavers of all five classes offer a variety of characteristic equipment options and screeds. Thanks to this, they ideally fulfill the needs of customers on construction projects around the globe. Small and efficient: The Mini Class encompasses VÖGELE’s small pavers, which are designed both for repair work and for the construction of cycle paths, footpaths and farm tracks, minor roads, parking lots and sports grounds. They fill trenches, pave surfaces in halls or underground parking decks and can be used in landscaping projects. Small, compact and manœuvrable on wheels Compact dimensions and variable pave width make the smallest VÖGELE MINI 502 wheeled paver ideal for small-scale construction projects. The MINI paver allows contractors to use a machine to complete even the smallest construction projects, such as paving narrow trenches, to a high standard quickly and efficiently. Highlights
|
Dimensions | |
---|---|
Length | 8’9” (w/footstep folded away) |
Width | 47” |
Height | 57” |
Weight | 2,733 lbs. w/AB 135 2,786 lbs. w/AB 135 with bolt-on extension |
Transport Width | 3.01’ |
Tire Size | Rear: 1’5” x 5” Front: 12” x 4” |
Engine | |
---|---|
Engine Type | Diesel Engine |
Fuel Tank Capacity | 5.01 Gallons |
Engine/Drivetrain | |
---|---|
Engine Make | Kubota |
Engine Model | Z602-E4B-EU-X7 |
Cylinders | 2 |
Cooling | Liquid-cooled |
Speeds | 131 fpm |
Emission Standards | US standard EPA Tier 4f |
Traction Drive | Closed loop hydraulic system |
Auger Height | 4in from the ground to the bottom edge of the augers |
Operational | |
---|---|
Paving Speed | up to 40 m/min, infinitely variable |
Travel Speed - Forward | up to 131 ft/min, infinitely variable |
Feed Height | 55” |
Hopper Width | 4’1” |
Conveyor Drive | separate hydraulic drives |
Layer Thickness | Up to 3.9” |
Augers | Reversible auger rotation |
Laydown Rate | 20 t/h |
Number of Conveyors | 1 |
Number of Augers | 2 |
Auger Drive | Independent hydraulic drives for each conveyor and each auger |
Auger Speed | 94 RPM |
Screed Power | Gas bottle |
Auger Option | independent controls for each conveyor and each auger |
Conveyor Running Speed | 56 fpm 0.633 mph, infinitely variable |
ECO Mode Output | 11 HP |
Lubrication of Track Rollers | 14 HP |
Screed Compacting Systems | V |
Screed Layer Thickness | 4” |
Electrical | |
---|---|
Sound Power | 103 db(A) |
Sound Pressure | 85 db(A) |
Paving | |
---|---|
Tires | Front: Elastic solid rubber tires |
Wheels | Rear: 2, elastic solid rubber tires Front: 2, mounted on bogies |
Paving Width | 5’11” |
Screed Width | 2’7” (Basic) 9.8” (Min) 5’11” (Max) |
Screed | AB 135 |
Screed Heat | Gas heating with 3 burners and electronic ignition |
Hopper | |
---|---|
Hopper Capacity | 2,640 lbs. |
Conveyor | with wear-resistant steel conveyors with reversible running direction |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
Main Technical Specifications | |
---|---|
MAKE | Vogele |
MODEL | MINI 502 |
