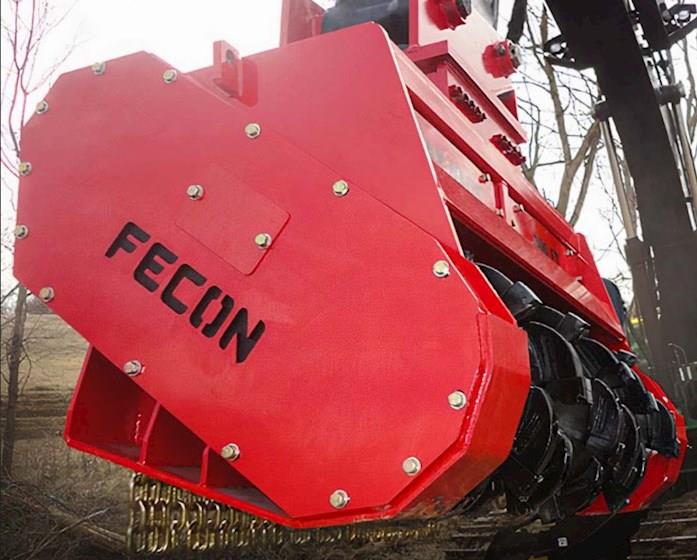

New Fecon Bull Hog Excavator Mulching Head 15-45 Ton for Sale

Tool durability and aggressive teeth ensure you have the toughest excavator mulcher head made.

Add versatility to your business with Bull Hog mulching attachments for excavators.

Our Severe Duty line is by far the strongest built Excavator Mulching attachment available, built to withstand the down pressure capabilities of larger excavators.

For maximum production, many Bull Hog excavator models can be paired with our Fecon BHP270 hp power pack.

  • BUILT TO MAKE IT HAPPEN
    • Attached to an excavator, the Bull Hog forestry mulchers are perfect for clearing trees and brush along roadsides, ravines, creeks, riverbanks, and places that could otherwise be difficult to reach.
    • Fecon offers a free engineering evaluation for your carrier. Contact us for an evaluation today so that we can maximize the performance of your attachment to run off of the power and flow of your excavator mulching head.
  • BENEFITS THAT MAKE A BULL HOG THE IDEAL CHOICE FOR YOUR EXCAVATOR
    • Two rotor systems with many cutting tool options — Double Carbide, High Abrasion, Stone Tool, Viking Sword, and Viking Axe.
    • The Bull Hog is a low-maintenance design and we provide optional mounts that mate to your machine.
    • Includes variable displacement hydraulic motors that optimize rotor speed and torque for maximum production in small or larger material.
    • Fecon has a power pack with 270 hp for dedicated power for higher production and fast cutting on larger diameter material
  • FECON BULL HOG MULCHING HEADS FOR 15-45 TON EXCAVATORS
    • Fecon Grinding Technology (FTG) rotor with Double Carbide tools
    • Variable displacement 55cc hydraulic motor
    • Adjustable hydraulics to match carrier flow and pressure



Models

  • BH40EXC
    • BH40EXC-1V
    • BH40EXC-2V
  • BH80EXC
    • BH80EXC-1V
    • BH80EXC-2V
    • BH80EXC-3V
    • BH80EXC-4V
  • BH200EXCXD
    • BH200EXCXD-2V
    • BH200EXCXD-3V
    • BH200EXCXD-4V
Dimensions
Overall Width BH40EXC-1V & BH40EXC-2V: 51”
BH80EXC-1V, BH80EXC-2V, BH80EXC-3V & BH80EXC-4V: 71”
BH200EXCXD-2V, BH200EXCXD-3V & BH200EXCXD-4V: 77”
Operating Weight BH40EXC-1V: 3,150 lbs.
BH40EXC-2V: 3,250 lbs.
BH80EXC-1V: 3,950 lbs.
BH80EXC-2V: 4,100 lbs.
BH80EXC-3V: 4,050 lbs.
BH80EXC-4V: 4,300 lbs.
BH200EXCXD-2V: 5,400 lbs.
BH200EXCXD-3V: 5,375 lbs.
BH200EXCXD-4V: 5,500 lbs.
Working Width BH40EXC-1V & BH40EXC-2V: 36”
BH80EXC-1V, BH80EXC-2V, BH80EXC-3V & BH80EXC-4V: 56”
BH200EXCXD-2V, BH200EXCXD-3V & BH200EXCXD-4V: 59”
Exc Size BH40EXC-1V & BH40EXC-2V: 15-45 T
BH80EXC-1V, BH80EXC-2V, BH80EXC-3V, BH80EXC-4V: 20-45 T
BH200EXCXD-2V, BH200EXCXD-3V & BH200EXCXD-4V: 20-45 T
Engine
Flow Range BH40EXC-1V: 30-75 GPM/114-190 LPH
BH40EXC-2V: 40-75 GPM/151-284 LPH
BH80EXC-1V: 38-50 GPM/144-190 LPH
BH80EXC-2V: 40-75 GPM/151-284 LPH
BH80EXC-3V: 50-105 GPM/190-398 LPH
BH80EXC-4V: 80-150 GPM/303-568 LPH
BH200EXCXD-2V: 40-75 GPM/151-284 LPH
BH200EXCXD-3V: 50-105 GPM/190-398 LPH
BH200EXCXD-4V: 100-150 GPM/379-568 LPH
Hydraulic
Motor BH40EXC-1V: 1 x 107V
BH40EXC-2V: 1 x 160V
BH80EXC-1V: 1 x 107V
BH80EXC-2V: 1 x 160V
BH80EXC-3V: 2 x 107V
BH80EXC-4V: 2 x 160V
BH200EXCXD-2V: 1 x 160V
BH200EXCXD-3V: 2 x 107V
BH200EXCXD-4V: 2 x 160V
Operational
Number of Tools/Teeth BH40EXC-1V & BH40EXC-2V: 18 (FGT); 14 (DCR/Cubit)
BH80EXC-1V, BH80EXC-2V, BH80EXC-3V & BH80EXC-4V: 30 (FGT); 22 (DCR/Cubit)
BH200EXCXD-2V, BH200EXCXD-3V & BH200EXCXD-4V: 30 (FGT); 28 (DCR/Cubit)
Maximum Pressure 6,000 PSI
Rotor Speed BH40EXC-1V & BH40EXC-2V: 2000 RPM
BH80EXC-1V, BH80EXC-2V, BH80EXC-3V & BH80EXC-4V: 2000 RPM
BH200EXCXD-2V, BH200EXCXD-3V & BH200EXCXD-4V: 1800 RPM
Rotor Diameter BH40EXC-1V & BH40EXC-2V: 20”
BH80EXC-1V, BH80EXC-2V, BH80EXC-3V & BH80EXC-4V: 20”
BH200EXCXD-2V, BH200EXCXD-3V & BH200EXCXD-4V: 22”
Rotor Bearing Size BH40EXC-1V & BH40EXC-2V: SD65
BH80EXC-1V, BH80EXC-2V, BH80EXC-3V & BH80EXC-4V: SD65
BH200EXCXD-2V, BH200EXCXD-3V & BH200EXCXD-4V: SD90
  • 30-150 Flow Range (gpm)
  • 36”, 50” & 56”cutting widths
  • 3,150 lbs-5,500 lbs
  • Efficiently mulch up to 10” material
  • 2 rotor choices: FGT or DCR
  • Rated to 6,000 PSI
  • Variable Displacement Motor Standard
