Rockland Multi-Application Dozer Rake

New Dozer Rake for Sale

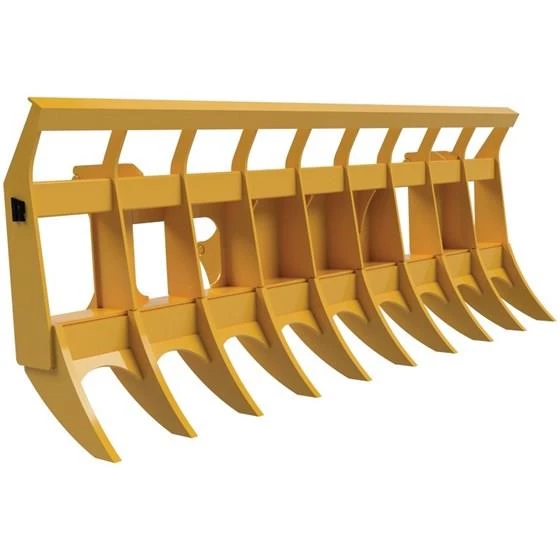

New Rockland Multi-Application Dozer Rake for Sale

Proven on tough land clearing jobs.

The Rockland MA Multi-Application Rake has proven itself on tough land clearing jobs all over the world.  This rugged, fixed tooth rake is ideal for general land clearing as well as stacking and piling. The teeth are long enough for both digging and piling.  The face of the rake and the built-in brushguard are one smooth, continuous curve for maximum rolling action when handling large amounts of brush or debris.

Rockland designed the MA to last. The tough teeth are built of certified, high-strength, heat-treated, alloy steel. The rugged frame and brushguard are built entirely of alloy steel and reinforced at all critical stress areas. Pound for pound, dollar for dollar, there is none finer—specify a Rockland MA MultiApplication rake for years of dependable service.

Ideal for land clearing, stacking, and piling.

  • Fixed, long teeth enable easy digging and piling.
  • Rake face and brush guard are a smooth, continuous curve. This delivers maximum rolling action when pushing large piles of debris and brush.
  • Reinforced at all critical stress areas for years of dependable service.
  • Available with custom tine spacing, custom tine lengths, and additional features upon request.


Specs
Category 10
20
25
30
40
50
60
Dimensions
Height 10/20/25: 54”
30: 56”
40: 60”
50/60: 70”
Weight 10: Bulldozer-980 lbs., Angledozer-1,095 lbs., LGP-1,275 lbs.
20: Bulldozer-1,340 lbs., Angledozer-1,545 lbs., LGP-1,670 lbs.
25: Bulldozer-2,450 lbs., Angledozer-2,575 lbs., LGP-2,785 lbs.
30: Bulldozer-2,450 lbs., Angledozer-2,620 lbs., LGP-2,700 lbs.
40: Bulldozer-3,655 lbs., Angledozer-3,960 lbs., LGP-4,230 lbs.
50: Bulldozer-3,800 lbs., Angledozer-4,280 lbs.
60: Bulldozer-4,040 lbs.
Raking Width 10: Bulldozer-80”, Angledozer-93”, LGP-115”
20: Bulldozer-90”, Angledozer-104”, LGP-120”
25: Bulldozer-114”, Angledozer-124”, LGP-132”
30: Bulldozer-114”, Angledozer-137”, LGP-154”
40: Bulldozer-135”, Angledozer-152”, LGP-166”
50: Bulldozer-140”, Angledozer-158”
60: Bulldozer-144”
Operational
Number of Tools/Teeth 10: Bulldozer-6, Angledozer-7, LGP-7
20: Bulldozer-7, Angledozer-7, LGP-8
25: Bulldozer-7, Angledozer-7, LGP-8
30: Bulldozer-7, Angledozer-8, LGP-8
40: Bulldozer-8, Angledozer-8, LGP-9
50: Bulldozer-8, Angledozer-8
60: Bulldozer-8
Application Agriculture, Logging/Forestry, Site Prep/Land Clearing, Storm Cleanup
Tooth Clearing Spacing 10: Bulldozer-14.5”, Angledozer-14”, LGP-17.7”
20: Bulldozer-13.3”, Angledozer-15.6”, LGP-15.4”
25: Bulldozer-17.3”, Angledozer-19.4”, LGP-17.1”
30: Bulldozer-17.3”, Angledozer-17.9”, LGP-20.3”
40: Bulldozer-17”, Angledozer-19.4”, LGP-18.5”
50: Bulldozer-17.1”, Angledozer-19.7”
60: Bulldozer-17.7”
Tooth Penetration 10: 12
20/25: 14
30: 16
40/50/60: 18
Tooth Thickness 10: 1.25”
20/25/30: 1.5”
40: 2”
50/60: 2.5”

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Rockland
MODEL Multi-Application Dozer Rake

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Rockland Multi-Application Dozer Rake

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Rockland Multi-Application Dozer Rake for Sale

Proven on tough land clearing jobs.

The Rockland MA Multi-Application Rake has proven itself on tough land clearing jobs all over the world.  This rugged, fixed tooth rake is ideal for general land clearing as well as stacking and piling. The teeth are long enough for both digging and piling.  The face of the rake and the built-in brushguard are one smooth, continuous curve for maximum rolling action when handling large amounts of brush or debris.

Rockland designed the MA to last. The tough teeth are built of certified, high-strength, heat-treated, alloy steel. The rugged frame and brushguard are built entirely of alloy steel and reinforced at all critical stress areas. Pound for pound, dollar for dollar, there is none finer—specify a Rockland MA MultiApplication rake for years of dependable service.

Ideal for land clearing, stacking, and piling.

  • Fixed, long teeth enable easy digging and piling.
  • Rake face and brush guard are a smooth, continuous curve. This delivers maximum rolling action when pushing large piles of debris and brush.
  • Reinforced at all critical stress areas for years of dependable service.
  • Available with custom tine spacing, custom tine lengths, and additional features upon request.


GENERAL INFORMATION
Manufacturer
Rockland
Model Year
Model
Multi-Application Dozer Rake
Condition
NEW
Specs
Category
10 20 25 30 40 50 60
Dimensions
Height
10/20/25: 54” 30: 56” 40: 60” 50/60: 70”
Weight
10: Bulldozer-980 lbs., Angledozer-1,095 lbs., LGP-1,275 lbs. 20: Bulldozer-1,340 lbs., Angledozer-1,545 lbs., LGP-1,670 lbs. 25: Bulldozer-2,450 lbs., Angledozer-2,575 lbs., LGP-2,785 lbs. 30: Bulldozer-2,450 lbs., Angledozer-2,620 lbs., LGP-2,700 lbs. 40: Bulldozer-3,655 lbs., Angledozer-3,960 lbs., LGP-4,230 lbs. 50: Bulldozer-3,800 lbs., Angledozer-4,280 lbs. 60: Bulldozer-4,040 lbs.
Raking Width
10: Bulldozer-80”, Angledozer-93”, LGP-115” 20: Bulldozer-90”, Angledozer-104”, LGP-120” 25: Bulldozer-114”, Angledozer-124”, LGP-132” 30: Bulldozer-114”, Angledozer-137”, LGP-154” 40: Bulldozer-135”, Angledozer-152”, LGP-166” 50: Bulldozer-140”, Angledozer-158” 60: Bulldozer-144”
Operational
Number of Tools/Teeth
10: Bulldozer-6, Angledozer-7, LGP-7 20: Bulldozer-7, Angledozer-7, LGP-8 25: Bulldozer-7, Angledozer-7, LGP-8 30: Bulldozer-7, Angledozer-8, LGP-8 40: Bulldozer-8, Angledozer-8, LGP-9 50: Bulldozer-8, Angledozer-8 60: Bulldozer-8
Application
Agriculture, Logging/Forestry, Site Prep/Land Clearing, Storm Cleanup
Tooth Clearing Spacing
10: Bulldozer-14.5”, Angledozer-14”, LGP-17.7” 20: Bulldozer-13.3”, Angledozer-15.6”, LGP-15.4” 25: Bulldozer-17.3”, Angledozer-19.4”, LGP-17.1” 30: Bulldozer-17.3”, Angledozer-17.9”, LGP-20.3” 40: Bulldozer-17”, Angledozer-19.4”, LGP-18.5” 50: Bulldozer-17.1”, Angledozer-19.7” 60: Bulldozer-17.7”
Tooth Penetration
10: 12 20/25: 14 30: 16 40/50/60: 18
Tooth Thickness
10: 1.25” 20/25/30: 1.5” 40: 2” 50/60: 2.5”
