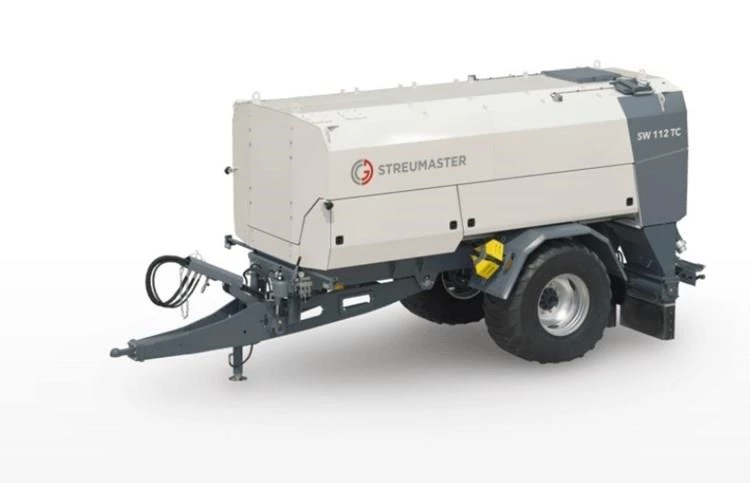

New Wirtgen SW 112 TC Towed Spreader Binding Agent Spreader for Sale

Spreading large quantities of binding agents while adhering to the specified accuracy at the same time is of paramount importance in both soil stabilization and cold recycling. The sophisticated binding agent spreaders from Streumaster meet these requirements with superior ease. In addition, our comprehensive product portfolio takes due account of both different performance requirements and the availability of tractor vehicles. The binding agent spreaders from Streumaster are therefore on offer in various model designs: as attachment units, trailers, built-up units for mounting on a carrier vehicle, or self-propelled spreading machines.

Drawn spreaders are available as both heavy-duty single-axle or tandem-axle trailers. Various trailer drawbars and brake systems, as well as an optional auxiliary engine that can be mounted to the spreader, allow the units to be combined with different towing vehicles – usually with off-road tractors. Their hopper volume ranges from 10 m³ (single-axle trailer) to 16 m³ (tandem-axle trailer).

Precise and powerful binding agent spreading

STREUMASTER binding agent spreaders are suitable both for spreading large quantities of binding agents during soil stabilization and for spreading small quantities of binding agents with maximum precision during cold recycling.

There are various different types and series of binding agent spreaders. Essentially, these can be subdivided according to type into the categories truck-mounted spreaders (M – Mounted) and towed spreaders (T – Towed). In addition to the vehicle type, these types also differ in the form of their spreading units: STREUMASTER primarily offers spreaders with cellular wheel spreading units (C - Cellular wheel).

The TC series binding agent spreaders are available as single-axle and tandem trailers and can be towed by towing vehicles with an engine output of either approx. 132 kW / 178 HP / 180 PS for single-axle or approx. 184 KW / 247 HP / 250 PS for tandem trailers.

With a maximum spreading width of 2,360 mm the TC and MC series achieve spreading rates of up to 60 kg/m² (at a speed of 2 km/h with a binder density of 1 kg/l).

In combination with products from the WIRTGEN GROUP, STREUMASTER binding agent spreaders cover the complete cycle in road construction and earthworks.

  • High-Precision WPT – WIRTGEN Performance Tracker
    • Automatic tracking of spreading performance for precise project accounting and analysis of savings potentials
  • Ideal Filling and Container Shape
    • Different sized containers for different requirements
    • High-speed filling device on both sides to rapidly fill the binder container
    • Specially developed container shape ensures that the material flows perfectly and the container can be fully emptied without any issues
  • Highly Efficient Material Conveying
    • Uniform, efficient lateral distribution and transfer of the binding agent to the cellular wheel, including when using partial spreading widths
    • Chain conveyor consumes minimal power due to optimal chain rotation
    • Self-tensioning chain conveyor eliminates the need to re-tension the chain
  • Maximum Spreading Accuracy
    • Spreading unit in 3 partial spreading widths with self-cleaning dosing sluices in cellular wheel design
    • Separately controllable partial spreading widths with individual spread rate control
    • Fully automatic binding agent metering independent of the travel speed
    • Universal, low-volume, and high-performance spreading units available
    • Weightronic electronic weighing device with automatic spread adjustment
    • Intelligent speed detection to control the spread rate independently of the travel speed
  • Innovative and Multifunctional Operating Concept
    • Easy-to-operate control panel with intuitive user interface
    • Convenient, continuous spread rate control
    • Built-in container fill level monitoring
  • Flexible Drive System
    • Standard drive via the tractor’s Power Beyond hydraulic system for a more cost-effective purchase and less maintenance
    • Optional drive via wide-angle cardan shaft for a closed on-board hydraulic system
    • Autonomous drive through optionally mountable add-on engine
Body
Tongue Weight 6,614 lbs. (on drawbar)
Filling Connector/Line Size 4”
Dimensions
Length 24’4”
Width 9’2”
Height 10’8”
Weight 13,668 lbs. (unladen weight)
28,660 lbs. (permissible gross weight)
39,683 lbs. (technically permissible gross weight)
Transport Length 24’4”
Transport Height 10’8”
Transport Width 9’2”
Container Volume 424 ft³
Chain Conveyor Width 2’11”
Engine
Horsepower 178 HP
Electrical System 12 V/60 A
Shaft Speed 1000 RPM (required cardan)
Spread Rate At 1.2 mph: DN 230-20 spreading unit: 2 to 18 lbs./yd²
At 1.2 mph: DN 230-10 spreading unit: 3 to 42 lbs./yd²
At 1.2 mph: DN 410-17 spreading unit: 5 to 60 lbs./yd²
Hydraulic
Hydraulic Power 37 gal/min x 2900 PSI
Hydraulic Oil Tank Filling Capacity 14.5 Gallons
Operational
Tires 710/50-30.5
Working Width 7’9” (2’8”/2’4”/2’8”) (Partial spreading widths)
Travel Speed-High 15.5 MPH

Working Width/Partial Widths: 7’9” (2’8”/2’4”/2’8”)

Container Capacity: 424 cu ft

Electrical System: 12 V/60 A

Driveshaft Speed: 1,000 RPM

Engine Power: 178 HP (all-wheel drive)

Size of filling connector/filling hose: 4”

Empty Weight: 13,669 lbs.

Spread Rate at 2 km/h (DN230-10 spreading unit): 3 – 42 kg/m²

Spread Rate at 2 km/h (DN230-20 spreading unit): 1 – 10 kg/m²

Spread Rate at 2 km/h (DN 410-17 spreading unit): 5 – 60 kg/m²

Tongue load at towing gear: 6,614 lbs.

Permissible Total Weight: 28,660 lbs.



  • Standard Equipment
    • Container/Chassis
      • High-performance binding agent spreader for soil stabilization and cold recycling as a trailer with one axle
      • Container with a capacity of 424 ft³ (12 m³), including gate valve at the rear binder outlet
      • Double-sided pneumatic high-speed filling device in size R4” with connection coupling and stone screen
      • Exhaust pipe for container ventilation and overpressure flap integrated in the container
      • Sensor-controlled chain conveyor made of drop-forged chain links and transport strips, 2 ft 11 in (900 mm) wide conveyor tunnel, OptiPower chain drive system with automatic load control
      • Two cross augers for transferring the spreading material to the metering sluices
      • Lockable basic storage compartment at the front left in the direction of travel
      • Single-axis chassis with hydraulic drawbar suspension and manual parking brake
      • Hydraulic support foot with hand pump
    • Drive System/Control System/On-Board Computer
      • Container level indicator at the rear of the machine for “almost full” and “full” by means of a signal tone and optical warning lamp
      • Innovative Isobus machine control for monitoring and controlling the binding agent spreader.  It ensures exact spreading of the preselected spread rate in lbs/ft² (kg/m²), regardless of the travel speed.  The binding agent spreader is operated via the tractor’s own Isobus operator terminal.
      • Oil supply of the entire spreader hydraulic system through the load sensing hydraulic system of the towing vehicle (Power Beyond).  Required hydraulic output of the towing vehicle at least 37 gal/min (140 l/min) at 2,900 psi (200 bar).
      • The hydraulic and electrical systems are protected behind lockable doors
    • Spreading Unit
      • Volumetric spread rate metering, fully automatic and independent of travel speed
    • Miscellaneous
      • Collecting trough and suspended weigher for checking the weights
      • Technical documentation in printed and digital form
  • Standard Equipment, can be replaced with optional equipment if required
    • Container/Chassis
      • Low-pressure tires 710/50-30.5
      • Brake system, hydraulic
      • Low-mounting towing device with drawbar eye, 2 in (50 mm) diameter
    • Drive System/Control System/On-Board Computer
      • Drive via the hydraulic system of the towing vehicle.
    • Spreading Unit
      • Universal spreading mechanism DN 230-10, spreading width 7 ft 9 in (2.36 m)
    • Miscellaneous
      • Standard painting in RAL 9001 (cream)
      • Standard warranty
      • WITOS FleetView
      • Prefit for WIRTGEN PERFORMANCE TRACKER WPT
  • Container/Chassis
    • Low-pressure tires 800/45-30.5
    • Low-pressure tires 600/60-30.5
    • Brake system, compressed air
    • Combined brake system, compressed air, and hydraulics
    • Low-mounting towing device with hitch ball towing system K80
    • High-mounting towing device with drawbar eye, 1.6 in (40 mm) diameter
    • High-mounting towing device with hitch ball towing system K80
  • Drive System/Control System/On-Board Computer
    • Spreader hydraulics driven by the towing vehicle’s power take-off shaft
    • Add-on diesel engine, 55 kW – non-labelled
    • Auxiliary diesel engine 55 kW – exhaust emissions category US EPA Tier 4f/EU Stage 5
    • Control panel 12” without tractor Isobus cable harness
    • Control panel 12” with tractor Isobus cable harness
    • Active weight device WeighTronic
    • Display showing the weight of the filling quantity
  • Spreading Unit
    • Minimum quantity spreading mechanism DN 230-20, spreading width 7 ft 9 in (2.36 m)
    • High-performance spreading mechanism DN 410-17, spreading width 7 ft 9 in (2.36 m)
    • Individual spreading quantity regulation for each partial width DSR
  • Drive Adaptors
    • Wide-angle cardan shaft 1-3/8” 6 parts
    • Wide-angle cardan shaft 1-3/4” 6 parts
    • Wide-angle cardan shaft 1-3/4” 20 parts
  • Miscellaneous
    • Painting in one special color (RAL)
    • Special warranty on request
    • German TUV approval for trailers, commercial up to 9 ft 10 in (3.00 m)
    • German Technical Inspection Agency (TUV) approval for trailers, standard
    • Data confirmation of the German inspection authority
    • Mudguards for single-axle trailer, for 25 mph (40 km/h)
    • Compressor HK450
    • High performance compressor M111H
    • Hose filter for filling device
    • Dust separation filter for filling device
    • Version without WITOS telematics solution
    • Version without prefit for WIRTGEN PERFORMANCE TRACKER WPT
    • Printer for recording the job data
    • WIRTGEN PERFORMANCE TRACKER WPT
    • High pressure cleaner
    • Camera system for rear working area
    • 7” monitor for camera system
    • 6 LED working lights
    • Rotary beacon LED
    • Loading hatch for BigBag filling
    • Towing device at the rear of the machine
    • Additional side storage compartments
    • Central lubrication system for single-axle binding agent spreader
