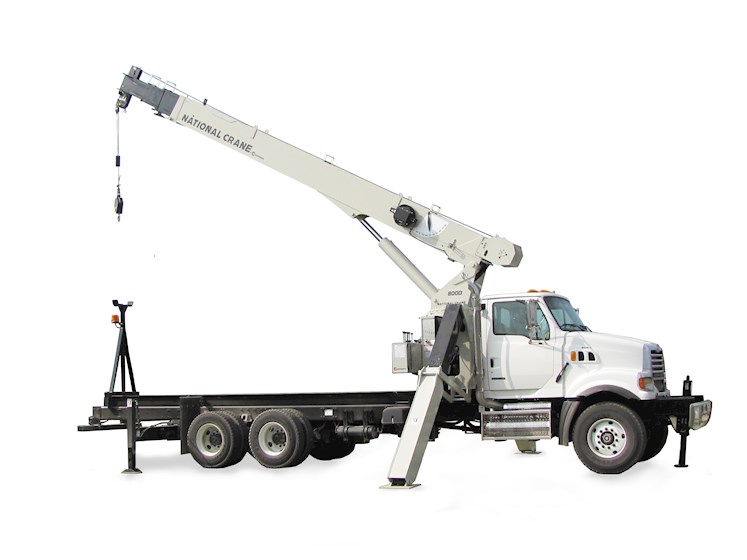

New National Crane 8100D Boom Truck for Sale

With a capacity of 23 USt the 800D offers four basic boom and jib combinations. Boom lengths include 51 ft. 90 ft. and 100 ft. The 25 ft.- 44 ft. jib can be used with the 90 ft. and 100 ft. boom lengths. The 800D is available in three configurations: standard behind cab mount rear mount and tractor mount.

Boom tip: The speedy-reeve boom tip and sheave blocks simplify rigging changes. Load line wedge socket removal is not required for reeving of multi-part line options.

Four-section boom: At 30,48 m (100 ft) the 800D boom is the longest in its size range. The longer boom allows the operator to perform more lifts without the use of a jib, reducing setup time and improving efficiency.

Overload protection: All National Crane boom trucks are equipped with overload protection. A Rated Capacity Limiter (RCL) is required on all machines equipped with jibs or personnel baskets.

Color graphical RCL system: Easy to setup and operate color graphical RCL system with enhanced userability and jog dial menu selection. It also includes enhanced troubleshooting features for ease in serviceability, work area definition system and on-board outrigger monitor system.
Body
Chassis Torsion resistant, high-strength steel sub-frame. Crane frame and sub-frame attached using threaded mounting bolts and drilled and bolted clamp plates for secure attachment to the truck chassis. Rear outriggers attached using bolts to truck frame and subframe to ensure a secure attachment. Rear bumper underride protection standard on factory mounted cranes.
Cab Dual-station ASME B30.5 compliant proportional crane controls with mechanical direct-to-valve control of hoist, lift, telescope and swing functions on both the driver and passenger sides of the crane. Mechanical direct-to-valve controls of all outrigger functions on both the driver and passenger sides of the crane. Burst of speed hoist switch located at each hoist control lever. Sealed electric switches for control of engine start/stop and horn. Throttle pedal located at each side. Load chart(s) located at each station.
Frame Section Modulus (SM) Under Crane with 110,000 psi (758 MPa): 15.9 ci (260.6 cm³)
Section Modulus (SM) Over Rear Stabilizers with 110,000 psi (758 MPa): 13 ci (213 cm³)
Slew One (1) Planetary slewing gear with a low speed high torque motor. Integrated holding valves and spring applied, pressure released brake release circuit; 375°, non-continuous rotation; manually adjustable swing speed needle valve.
Dimensions
Wheelbase 256 in. (650 cm)
Gross Axle Wt Rating (GAWR) Rear: 40,000 lbs.
Max Tip Height 152'
Hydraulic
Hydraulic System Open-center hydraulics system allowing for multifunction operation of all crane functions. One (1) three section gear pump for all functions and optimized system performance.
Shaft input of 2400 RPM generating:
Section #1 (Boom/Telescope/Outriggers): 18 gpm (68 lpm) max flow
Section #2 (Hoist): 34 gpm (128.7 lpm) max flow
Section #3 (Swing): 10 gpm (37.9 lpm) max flow 65 gallon (246 L) hydraulic reservoir with SAE o-ring connections and integrated suction shut-off ball valve for easy maintenance and SAE o-ring hydraulic fittings and hoses.
Jib 8FJ44M, 2-section
Operational
Outriggers Outrigger monitoring system for beam extension standard. Inverted cylinder rods for outrigger jack cylinders to best protection of chromed rod
Capacity 23 T (20.87 t)
Boom Proportional extension via multi-stage hydraulic cylinder and cable operation; four-plate, high-strength steel construction; two-sheave, quick reeve boom nose and Easy-glide wear pads.
Winch Planetary
Boom
Boom Extensions 29.5-100 ft. (8.99-30.48 m)
Boom Type 4-section
Boom Length 100’
Max Tip Height-Boom 109'
Lift Speed 25-147 fpm (8-45 m/min.)
Max Jib Length 44 ft. (13.41 m)
Boom Elevation One (1) double-acting, hydraulic cylinder with holding valve with a range of –10⁰ to +80⁰
Battery
Electrical System Automotive grade, fully wire harnessed 12VDC electrical system using sealed connectors
Measurements
Weight 17,190 lbs. (7,797 kg) dry
17,710 lbs. (8,033 kg) with oil
Turning Radius 180°
  • Three and Four-section booms
  • Internal Anti-two-block
  • Self-lubricating "Easy Glide" Wear Pads
  • Hydraulic Capacity Alert System (HCAS) or Load Moment Indicator system(LMI)
  • Proportional boom extension
  • Planetary "Burst of Speed" winch
  • Options and Lift Solutions
    • Hydraulic hose reels
    • Hydraulic tilting pole grab
    • Factory installed tool box options
    • Bulkhead and flat-bed options
    • One-option hydraulic tool circuit
  • Optional auger attachment
    • Available on the 890D only, the 14,000 ft/lb two speed auger attachment has a maximum digging radius of 39 ft.
  • Outriggers, Sub-frame and Flatbed
    • Single Front Outrigger (SFO)
    • 22 ft (6,7 m) subframe and flatbed for a standard mount
    • Wood, steel and super-duty wood or steel flatbeds
  • Hook blocks
    • 7 ton (6,35 mt) Overhaul ball for single part line operation
    • Single sheave, 12.5 ton (11,3 mt) hook block for 2-3 part reeving
    • Two sheave, 22 ton (19,9 mt) hook block for 4-5 part reeving (includes auxiliary lineblock and pendant link)
    • Three sheave, 30 ton (27,2 mt) quick-reeve hook block for 6-part reeving (includes auxiliary lineblock and pendant link)
  • Jib
    • 25 ft – 44 ft (7,6 m – 13,4 m) telescopic jib with manual pull out section
    • Maximum tip height of 143 ft (43,58 m) with 90 ft boom option
    • Maximum tip height of 153 ft (46,63 m) with 100 ft boom option
  • Hydraulics
    • Oil cooler option for duty-cycle operation
    • 1-option control circuit including valve and control lever
  • Operator Aids
    • Hydraulic Capacity Alert System (HCAS) in lieu of RCL
    • Four-function wireless radio remote control
    • Metric capacity charts
    • Spanish documentation and decals
    • External ATB cable routing Note: available for the 90ft (27,43m) boom only
  • Personnel platforms
    • One (1) or two (2) person steel, non-insulated, gravity hung, platform options
    • Capacities up to 1200 lbs (544,3 kg) on main boom and 600 lb (226,7 kg) on jib
    • Basket test weight sets available for each
    • BSA-1, BSA-R1 (provides rotation), or BSAY-2 (yoke style)
  • Bulkhead
    • Steel 762 mm (30 in) solid wall bulkhead
