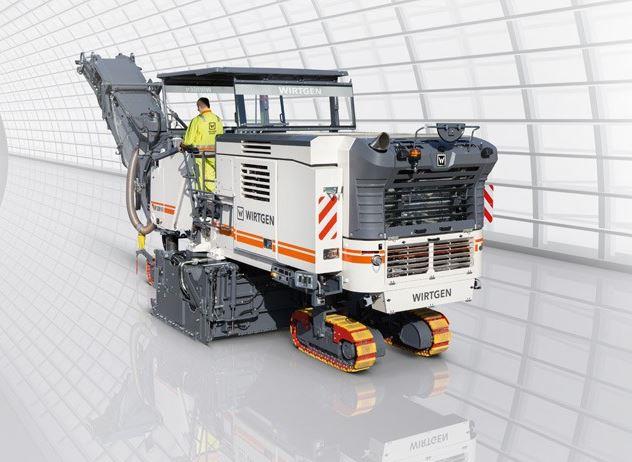

New Wirtgen W 200 Hi Large Milling Machine for Sale
Large milling machines have a milling drum positioned centrally beneath the machine and a two-part front-loading system. Trucks can be loaded quickly and flexibly via the slewing and height-adjustable discharge conveyor. A variety of different milling drums and milling drum assemblies are available to cater to the wide array of milling tasks. They can be exchanged quickly and easily to suit the application. The range of applications extends from wide-scale complete removal down to a depth of 35 cm in a single pass to the rehabilitation of concrete pavements and airport runways as well as fine milling to improve pavement skid resistance.
- The cold milling machine with a working width of 6 ft. 11 in. (2.10 m) features a zero side on the right and left hand side to enable dual flush-to-kerb milling.
- The milling unit can be hydraulically shifted to either side by 15.7 in. (400 mm), enabling maximum flexibility in its use.
- The machine is ideal for major construction sites where trucks have to cut into flowing traffic to remove the milled material.
- The large milling machine is especially suitable for milling on demanding and narrow construction sites in urban environments.
- Three adjustable milling drum rotation speeds allow for high milling output rates under changing demands.
|
|
| Length |
28’9” |
| Width |
8 ft. 2 in. (2,500 mm) |
| Height |
9 ft. 6 in. (2,900 mm) |
| Weight |
65,697 lbs. |
| Engine Make |
Cummins |
| Engine Model |
QSX 15 |
| Engine Type |
EU Stage 4/US EPA Tier 4f |
| Cylinders |
6 |
| Horsepower |
610 hp (433 kW) @ 2,100 rpm |
| Cooling |
Water |
| Displacement |
4 gal. (15 l) |
| Fuel Consumption |
30.6 US gph (at rated power)
12 US gph (field mix) |
| Fuel Tank Capacity |
219 Gallons |
| Water Tank Capacity |
793 Gallons |
| Tracks |
5’4” x 10” x 1’11” (front and rear) |
| Working Speed |
0 - 279 fpm (0 - 85 m/min.) |
| Travel Speed - Forward |
0 - 3.1 mph (0 - 5 km/h) |
| Hydraulic Tank Capacity |
106 Gallons |
| Hydraulic System |
Fluid Tank: 106 gal. (400 l) |
| Cutting Width |
6’11” |
| Cutting Depth |
12” |
| Cutting Diameter |
Drum Diameter With Tools: 35 in. (900 mm) |
| Teeth |
Tools: 190
Tool Spacing: 5/8 in. (15 mm) |
| Conveyor Belt Width |
2’7” (primary)
2’9” (discharge) |
| Drum Diameter |
2’11” (w/tools) |
- Exhaust emissions category: EU Stage 4/US EPA Tier 4f
- Operating weight, CE: 65,697 lbs
- Milling width: 6 ft 11 in
- Milling depth max.: 12 in
- Displacement: 4 Imp.gal
- Max. travel and milling speed: 0 - 273 ft / min (3.1 mph)
- Maximum power: 455 kW / 610 hp
Standard Equipment
- Base Machine
- Basic machine with engine
- Machine chassis with double-sided wasp waist
- Hydraulically opening engine cover with noise insulation
- Air compressor system
- Battery operated hydraulic unit for emergency functions
- Cooling system with temperature-controlled fan speed
- Storage compartments for pick buckets
- Milling Drum Unit
- Milling drum housing FB2100
- Milling drum housing with infinitely variable lateral shift function permits milling up to the edge on the right or left side of the machine. The total adjustment is 2 ft. 7.5 in. (15.75 in. left/15.75 in. right)(800 mm. (400 mm left/400 mm right))
- Hydrostatic drive of the milling drum
- Three milling drum rotation speeds with electric on/off function
- Hydraulic material depressor with conveyor lifting function
- Hydraulically movable and positionable scraper plate
- Hydraulically lifting side plate, clearance 1 ft. 4 in. (420 mm) right and left
- Triple-divided water sprinkling strip in the milling drum unit, segments individually switchable
- Milled-Out Material Loading
- Conveyor belt system with manually or automatically controllable transport speed
- Water sprinkling system in the primary conveyor
- Slewing angle discharge conveyor ±60°
- Machine Control and Leveling System
- Multi-function control display showing important machine operating conditions
- Extensive machine diagnosis in the control display
- Milling power control with automatic on/off function
- Two exterior panels for operating functions by ground personnel
- Milling depth regulation with LEVEL PRO leveling system, with one operating display as well as one electrical height sensor in the hydraulic cylinder right and left on side plate
- Operator’s Stand
- Operator’s stand with complete flexible mounting
- Convenient, individually adjustable operating panel
- Convenient footstep to the operator’s stand, right and left
- Covers for operating panels with lock
- Two mirrors front and one mirror in rear area of the machine
- Under-carriage and Height Adjustment
- PTS – machine automatically guided parallel with the road surface
- ISC – intelligent track speed control with hydraulic four chain drive
- High machine stability due to quadruple pendulum axle
- Freely selectable steering functions for the four-track steering
- Extremely wear-resistant, two-piece EPS polyurethane track pads
- Others
- Lighting package with 5 halogen floodlights and 4 LED lights in the area of the milling unit
- “Welcome” and “Go home” lights feature including LED lighting in the area of the operator’s access and platform
- Large tool package in lockable tool box
- Total of 6 EMERGENCY STOP switches at sensible positions on the machine
- Water high-pressure system with automatic on/off function, 18 bat, 17.7 gallons/min (67 l/min)
- Machine preparations for installing the control unit for WITOS FleetView. “WIRTGEN Road Technologies Telematics and on-site Solutions (WITOS) is the intelligent telematics system of the WIRTGEN Road Technologies for efficient fleet and service management worldwide
- European type test certificate, GS mark and CE conformity
Standard Equipment, replaceable with optional equipment
- Milling Drums
- Milling drum FB2100 HT22 LA15 with 190 picks
- Milled-Out Material Loading
- Discharge conveyor, 25 ft. 11 in. (7,900 mm) long, 2 ft. 9.5 in. (850 mm) wide
- Operator’s Stand
- Operator’s stand with single standing seats
- Exterior mirror standard
- Others
- Water tank filling from rear of machine
- Paint standard cream white RAL 9001
- Halogen lighting package 24 V with rotary beacons
- Milling Drum Unit
- Transport carriage for FCS milling drums from FB2000 to FB2200
- Milling Drums
- Milling drum FB2100 HT22 LA18 with 169 picks
- Milled-Out Material Loading
- Discharge conveyor, 25 ft. 11 in. (7,900 mm) long, 2 ft. 9 in. (850 mm) wide, with hydraulic folding device
- Shortened discharge conveyor 23 ft. 11 in. (7,300 mm) long, 2 ft. 7 in. (800 mm) wide, with hydraulic folding device
- VCS extraction system
- Machine Control and Leveling System
- One ultrasonic sensor for scanning in front of the milling drum right or left
- Two ultrasonic sensors for scanning in front of the milling drum right + left
- One Sonic-Ski sensor for scanning in front of the milling drum right or left
- Two Sonic-Ski sensors for scanning in front of the milling drum right + left
- Operating display LEVEL PRO
- Multiplex preliminary equipment comprising 4 sensor sockets
- Multiplex 3-way right with 2 ultrasonic sensors, including Multiplex preliminary equipment
- Multiplex 3-way right + left with 4 ultrasonic sensors, including Multiplex preliminary equipment
- Basic equipment laser leveling without laser transmitter
- Level control 3D leveling pre-equipment
- Slope control sensor
- Milling depth measurement and display in the LEVEL PRO display
- Operator’s Stand
- Operator’s stand with large storage compartment and single standing seats
- Operator’s stand with comfort seat package
- Exterior mirror folding with signal lights
- Weather canopy folds in electrohydraulically
- Hot air heating footwell of the operator’s stand
- Monitor system with 2 cameras
- Monitor system with 6 cameras and additional monitor
- Others
- Water tank filling with hydraulic filling pump
- Paint in one special color (RAL)
- Paint in two special colors (RAL)
- Paint in maximum two special colors with substructure in special color (RAL)
- Powerful LED lighting package 24 V with rotary beacons
- Additional weight 2,425 lbs. (1,100 kg)
- Large storage compartment on rear of machine
- Electric preheating of the fuel filter
- High-pressure water cleaner, 150 bar 4 gallons/min (15 l/min)
- Hydraulic pick ejector drift
- Pneumatic hammer with pick ejector/inserter
- Additional seats for pick change with storage compartment
- Diesel tank filling pump with 16 ft 5 in. (5.0 m) suction hose
- WITOS FleetView telematics system incl. 3-year operating period (EU)
- WITOS FleetView telematics system incl. 3-year operating period (USA)
WITOS FleetView telematics system incl. 3-year operating period – PROMOTION
