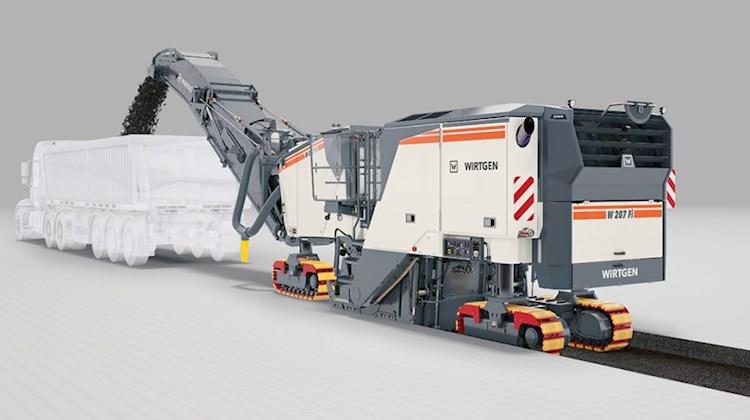

New Wirtgen W 207 Fi Large Milling Machine for Sale
Large milling machines have a milling drum positioned centrally beneath the machine and a two-part front-loading system. Trucks can be loaded quickly and flexibly via the slewing and height-adjustable discharge conveyor. A variety of different milling drums and milling drum assemblies are available to cater to the wide array of milling tasks. They can be exchanged quickly and easily to suit the application. The range of applications extends from wide-scale complete removal down to a depth of 35 cm in a single pass to the rehabilitation of concrete pavements and airport runways as well as fine milling to improve pavement skid resistance.
- The easy-to-operate, compact cold milling machine is suitable for a wide range of applications, from surface layer rehabilitation to complete pavement removal and fine milling.
- The innovative MILL ASSIST machine control system enables efficient machine operation in automatic mode, with high output and user-friendly handling.
- Thanks to the LEVEL PRO ACTIVE advanced leveling system, the machine completes milling jobs with maximum precision.
- The innovative MCS BASIC system makes it possible to change milling drums extremely quickly and offers tremendous flexibility in use for greater machine utilization.
- Large track units and maximum conveyor capacity with conveyor swing angles of up to 65° to the left and right ensure high productivity.
|
|
| Length |
27’9” |
| Width |
8’2” |
| Height |
9’10” |
| Weight |
63,150 lbs.
65,500 lbs. (net weight wo/operating agents)
68,300 lbs. (shipping) |
| Engine Make |
Cummins |
| Engine Model |
QSX 15 |
| Engine Type |
EU Stage 5/US EPA Tier 4f |
| Cylinders |
6 |
| Horsepower |
630 HP |
| Cooling |
Water |
| Displacement |
4 gallons |
| Fuel Consumption |
32.5 gallons(at rated power)
12.5 gal/h (field mix) |
| Fuel Tank Capacity |
317 Gallons |
| Water Tank Capacity |
865 gallons |
| Tracks |
5’8” x 11.8” x 2’ (front and rear) |
| Travel Speed - Forward |
3.7 MPH |
| Hydraulic Tank Capacity |
22.5 Gallons (oil) |
| Cutting Width |
7’3” (standard)
4’11” (optional 1)
6’7” (optional 2) |
| Cutting Depth |
13” |
| Cutting Diameter |
3’4” |
| Conveyor Belt Width |
2’9” (Primary & Discharge) |
| Electrical System |
Voltage Supply: 24 V |
- Exhaust emissions category: EU Stage 5/US EPA Tier 4f
- Operating weight, CE: 63,150 lbs
- Milling width: 7 ft 3 in
- Milling depth max.: 13 in
- Displacement: 4 Imp.gal
- Net weight of the machine without operating agents: 65,500 lbs
- Max. travel and milling speed: 0 – 330 ft/min (3.7 mph)
- Maximum power: 470 kW / 630 hp
- Shipping weight, US standard (full fuel tanks, without water): 68,300 lbs
Standard Equipment
- Basic Machine
- Basic machine with engine
- Machine frame featuring a single wasp at the rear right, and a dual wasp waist at the front
- Hydraulically opening, soundproof engine cowling
- Air compressor system
- Two cooling fans to minimize power consumption of the cooling system
- Milling Drum Unit
- Adjustment of material depressor contact pressure via the control panel or automatically via the MILL ASSIST feature to reduce chunk formation
- Electrical adjustment of scraper contact pressure via the control panel
- Automatically controlled locking feature of scraper
- Single-piece water spray bar in the milling drum unit for reliable pick cooling and to prevent dust development
- Automatic control of the water quantity via the MILL ASSIST feature
- Height adjustment stroke increased by 5.9 in (150 mm) to facilitate pick replacement and the exchange of milling drum units
- Pre-fitting to allow the quick exchange of milling drum units
- Hydraulically lifting side plates, clearance right 1 ft 6 in (450 mm), clearance left 1 ft 1 in (330 mm)
- Loading of the Milled Material
- Increased conveyor slewing angles of 65° each to the left and right
- Discharge conveyor with adjustable conveying speed
- Boost feature for a temporary increase of the belt speed and conveying performance of the discharge conveyor by 20%
- Water spray system in the primary conveyor
- Larger conveyor pump for a constant belt speed even at a low engine speed of 1,300 rpm
- Discharge conveyor, 25 ft 11 in (7,900 mm) long, 2 ft 9 in (850 mm) wide, with hydraulic folding device
- Machine and Leveling Control
- User-friendly control panel including 7” color screen
- LEVEL PRO ACTIVE leveling system with numerous automated and complementary features relieving the operator of a part of his workload
- LEVEL PRO ACTIVE – automatic height control in transport mode
- LEVEL PRO ACTIVE – ramp milling and auto-start feature for the second milling cut
- RAPID SLOPE cross-slope sensor for LEVEL PRO ACTIVE leveling system
- MILL ASSIST assistance system for automatic adjustment of the milling drum speed in accordance with the main area of application and the parameters selected in terms of engine load, advance rate, milling volume and quality of the milling pattern
- Comprehensive machine diagnostics integrated into the control panel including, for example, a diagnostic system for the CAN bus
- Voltmeter integrated into the control panel for voltage measurement in the event of a malfunction
- Two control panels for operating functions performed by ground crew
- Operator’s Stand
- Convenient access to the operator’s platform, right and left
- Anti-vibration mounted operator’s platform across the full width of the machine including fold-out railing, right
- Electrical control cabinet on the operator’s platform for optimum accessibility and fast troubleshooting
- Two mirrors at the front, one mirror at the rear of the machine
- Crawler Unit and Height Adjustment
- PTS – automatic alignment of the machine parallel to the pavement surface
- ISC – intelligent track speed control including hydraulic four-track drive
- Fourfold full-floating axle for high machine stability
- High travel speed of up to 328.1 ft/min (100 m/min) at low engine speeds (1,350 rpm), reduced diesel consumption and low noise emissions
- Lifting speed of the height adjustment feature increased by 60%
- Four track units type B3 with EPS polyurethan track pads
- Miscellaneous
- “Welcome” and “Go home” lights feature in the area of the operator’s platform and access
- High-pressure water system with automatic on/off function, 261 psi (18 bar), 17 gal/min (67 l/min)
- Good accessibility to all maintenance points on the engine station
- Pneumatic hammer with pick extractor/inserter
- Comprehensive toolkit in lockable toolbox
- A total of six EMERGENCY STOP switches in appropriate positions on the machine
- Pre-fitting for installing the WITOS FleetView control unit
- European design type certification, EuroTest mark and CE conformity
- Extended LED lighting system with 37,600 lumens
Extended Equipment (US standard)
- Milling Drum Unit
- Quick-change milling drum unit FB2200 (7 ft 3 in) MCS BASIC
- Extension of MCS BASIC with a hydraulically opening side door for FB2200 (7 ft 3 in)
- Electrically switchable sectional water spray bar for FB2200 (7 ft 3 in)
- Hydraulic pick extractor
- Milling Drums
- Milling drums MCS BASICFB2200 (7 ft 3 in) HT22 LA15 with 176 picks
- Loading of the Milled Material
- VCS extraction system
- Support device for discharge conveyor
- Machine and Leveling Control
- Actual milling depth measurement and display on the LEVEL PRO ACTIVE panel
- Active floating position for the side plates, left and right
- 7” control panel for displaying the machine control system and for controlling the leveling system (2 units)
- Extended functionality of the control panels at the bottom right and left with start-stop engine feature, level indicator for the water tank and time display
- Extension of LEVEL PRO ACTIVE with two hydraulic sensors mounted no the right and left
- 4-fold camera system with 10” control panel
- Miscellaneous
- Water tank filling from rear of machine
- Standard painting in RAL 9001 (cream)
- WITOS FleetView – professional telematics solution to optimize machine use and servicing
- Extended electro-hydraulic unit
- Two-piece additional weight totaling 3,500 lbs (1,600 kg)
- Storage compartment close to the rear track units for 8 pick containers
- Milling drum rotation device
- Milling Drum Unit
- Milling drum housing FB1500 (4 ft 11 in)
- Quick-change milling drum unit FB2000 (6 ft 7 in) MCS BASIC
- Extension of MCS BASIC with a hydraulically opening side door for FB2000 (6 ft 7 in)
- Electrically switchable sectional water spray bar for FB2000 (6 ft 7 in)
- Wear protection rollers for side plates
- Milling Drums
- Milling drum FB1500 (4 ft 11 in) HT22 LA15 with 136 picks
- Milling drum MCS BASIC FB2000 (6 ft 7 in) HT22 LA15 with 162 picks
- Milling drum MCS BASIC FB2000 (6 ft 7 in) HT22 LA18 with 146 picks
- Milling drum MCS BASIC FB2200 (7 ft 3 in) HT22 LA18 with 155 picks
- Milling drum FB1500 (4 ft 11 in) HT22 LA8 with 210 picks
- Milling drum FB1500 (4 ft 11 in) HT22 LA25 with 106 picks
- Milling drum FB1500 (4 ft 11 in) HT5 LA6X2 with 512 picks
- Milling drum FB2000 (6 ft 7 in) HT22 LA8 with 274 picks
- Milling drum FB2000 (6 ft 7 in) HT22 LA25 with 124 picks
- Milling drum FB2000 (6 ft 7 in) HT5 LA6X2 with 672 picks
- Milling drum FB2200 (7 ft 3 in) HT22 LA8 with 298 picks
- Milling drum FB2200 (7 ft 3 in) HT22 LA25 with 134 picks
- Milling drum FB2200 (7 ft 3 in) HT5 LA6X2 with 740 picks
- Milling drum MCS BASIC FB2000 (6 ft 7 in) HT22 LA8 with 272 picks
- Milling drum MCS BASIC FB2000 (6 ft 7 in) HT22 LA25 with 126 picks
- Milling drum MCS BASIC FB2000 (6 ft 7 in) HT5 LA6X2 with 672 picks
- Milling drum MCS BASIC FB2000 (6 ft 7 in) HT22 LA15 with 18 standard picks and 144 PCD tools
- Milling drum MCS BASIC FB2200 (7 ft 3 in) HT22 LA8 with 297 picks
- Milling drum MCS BASIC FB2200 (7 ft 3 in) HT22 LA25 with 121 picks
- Milling drum MCS BASIC FB2200 (7 ft 3 in) HT22 LA6X2 with 740 picks
- Milling drum MCS BASIC FB2200 (7 ft 3 in) HT22 LA15 with 18 standard picks and 158 PCD tools
- Machine and Leveling Control
- Overload sensors installed on the scraper
- Extension of LEVEL PRO ACTIVE with leveling booms and one Sonic Ski sensor
- Extension of LEVEL PRO ACTIVE with two ultrasonic sensors for multiplex scanning
- Extension of LEVEL PRO ACTIVE with four ultrasonic sensors for multiplex scanning
- Extension of LEVEL PRO ACTIVE with pre-fitting for 3D leveling for machines without canopy
- Extension of LEVEL PRO ACTIVE with pre-fitting for 3D leveling for machines with canopy
- Extension of LEVEL PRO ACTIVE with two laser receivers
- 8-fold camera system with 10” control panel
- Operator’s Stand
- Operator’s platform with simple stand-up seat and weather canopy
- Miscellaneous
- Hydraulically operated filling pump for water refilling
- Painting in one special color (RAL)
- WIRTGEN PERFORMANCE TRACKER including WITOS FleetView – precise tracking of the milling performance for machines without canopy or with operator’s cabin
- WIRTGEN PERFORMANCE TRACKER including WITOS FleetView – precise tracking of the milling performance for machines with canopy
- Large storage compartment at the rear of the machine for 69 pick containers
- Milling drum mounting and transport carriage FB1500 (4 ft 11 in) to FB2500 (9 ft 2 in)
- Powerful high-pressure water cleaner, 2,175 psi (150 bar), 4 gal/min (15 l/min)
- Electrical preheating of the fuel filter
- Electrical diesel suction and pressure pump including 24 ft 7 in. (7.50 m) suction hose
- License plate holder with LED lighting
