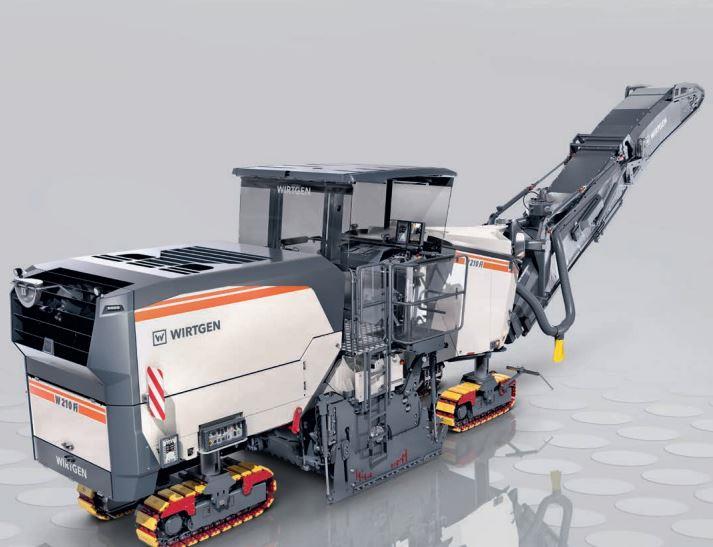

New Wirtgen W 210 Fi Large Milling Machine for Sale
Large milling machines have a milling drum positioned centrally beneath the machine and a two-part front-loading system. Trucks can be loaded quickly and flexibly via the slewing and height-adjustable discharge conveyor. A variety of different milling drums and milling drum assemblies are available to cater to the wide array of milling tasks. They can be exchanged quickly and easily to suit the application. The range of applications extends from wide-scale complete removal down to a depth of 35 cm in a single pass to the rehabilitation of concrete pavements and airport runways as well as fine milling to improve pavement skid resistance.
- The powerful cold milling machine offers compact dimensions and caters to a wide range of applications from surface course rehabilitation and pavement removal at full depth all the way to fine milling operations.
- The range of applications is broadened even further thanks to the quick exchange of milling drum units and exceptionally rapid exchange of milling drums offering milling widths of 6 ft 7 in (2.0 m), 7 ft 3 in (2.2 m) or 8 ft 2 in (2.5 m) as part of MCS – Multiple Cutting System.
- The innovative MILL ASSIST machine control system always adjusts the most favorable relationship between performance and cost when operating in automatic mode. An operating strategy can additionally be selected in terms of cost, performance or quality.
- Thanks to the unique DUAL SHIFT powershift transmission with extended milling drum speed, the W 210 F i is the ideal candidate for exceptionally challenging milling jobs.
- The new LEVEL PRO ACTIVE leveling system integrated in the machine’s control system optimizes precision in both height control and machine positioning.
|
|
| Length |
28’10” |
| Width |
8’2” |
| Height |
9’10” |
| Weight |
64,500 lbs.
67,100 lbs. (net weight wo/operating agents)
69,700 lbs. (shipping) |
| Engine Make |
Caterpillar |
| Engine Model |
C18 ATAAC |
| Engine Type |
US EPA Tier 4f |
| Cylinders |
6 |
| Horsepower |
755 HP |
| Cooling |
Water |
| Displacement |
4.8 gallons |
| Fuel Consumption |
38.8 gal/h (at rated power)
15.5 gal/h (field mix) |
| Fuel Tank Capacity |
317 Gallons |
| Water Tank Capacity |
865 gallons |
| Tracks |
5’8” x 11.8” x 2’ (front and rear) |
| Travel Speed - Forward |
6 km/h |
| Hydraulic Tank Capacity |
26.5 Gallons (oil) |
| Cutting Width |
7’3” (standard)
6’7” (optional 1)
8’2” (optional 2) |
| Cutting Depth |
13” |
| Cutting Diameter |
3’4” |
| Conveyor Belt Width |
2’9” (Primary & Discharge) |
| Electrical System |
Voltage Supply: 24 V |
- Exhaust emissions category: US EPA Tier 4f
- Operating weight, CE: 64,500 lbs
- Milling width: 7 ft 3 in
- Milling depth max.: 13 in
- Displacement: 4.8 Imp.gal
- Net weight of the machine without operating agents: 67,100 lbs
- Max. travel and milling speed: 0 – 100 m/min (6 km/h)
- Maximum power: 563 kW / 755 hp
- Shipping weight, US standard (full fuel tanks, without water): 69,700 lbs
Standard Equipment
- Basic Machine
- Machine frame featuring a single wasp waist at the rear right, and a dual wasp waist at the front
- DUAL SHIFT two-speed powershift transmission for efficient engine speeds combined with powerful milling drum speeds
- Automatic pressure adjustment of the cylinder pump in accordance with performance requirements for reduced diesel consumption
- Hydraulically opening, soundproof engine cowling
- Air compressor system
- Battery-operated hydraulic unit for auxiliary drive
- Two cooling fans to minimize power consumption of the cooling system
- Milling Drum Unit
- Adjustment of material depressor contact pressure via the control panel or automatically via the MILL ASSIST feature to reduce chunk formation
- Electrical adjustment of scraper contact pressure via the control panel
- Automatically controlled locking feature of scraper
- Milling drum rotation device with electro-hydraulic milling drum for slowly turning the milling drum during pick replacement
- Single-piece water spray bar in the milling drum unit for reliable pick cooling and to prevent dust development
- Automatic control of the water quantity via the MILL ASSIST feature
- Height adjustment stroke increased by 5.9 in (150 mm) to facilitate pick replacement and the exchange of milling drum units
- Pre-fitting to allow the quick exchange of milling drum units
- Hydraulically lifting side plates, clearance right 1 ft 6 in (450 mm), clearance left 1 ft 1 in (330 mm)
- Loading of the Milled Material
- Increased conveyor slewing angles of 65° each to the left and right
- Discharge conveyor with adjustable conveying speed and two slewing speeds for precise loading
- Boost feature for a temporary increase of the belt speed and conveying performance of the discharge conveyor by 20%
- Water spray system in the primary conveyor
- Larger conveyor pump for a constant belt speed even at a low engine speed of 1,300 rpm
- Discharge conveyor, 25 ft 11 in (7,900 mm) long, 2 ft 9 in (850 mm) wide, with hydraulic folding device
- Machine and Leveling Control
- User-friendly control panel including 7” color screen
- LEVEL PRO ACTIVE leveling system with numerous automated and complementary features relieving the operator of a part of his workload
- LEVEL PRO ACTIVE leveling system – automatic height control in transport mode
- LEVEL PRO ACTIVE leveling system – ramp milling and auto-start feature for the second milling cut
- RAPID SLOPE cross-slope sensor for LEVEL PRO ACTIVE leveling system
- MILL ASSIST assistance system for automatic adjustment of the milling drum speed in accordance with the main area of application and the parameters selected in terms of engine load, advance rate, milling volume and quality of the milling pattern
- Automatic start-stop feature of the milling drum to reduce diesel consumption
- Comprehensive machine diagnostics integrated into the control panel including, for example, a diagnostic system for the CAN bus
- Voltmeter integrated into the control panel for voltage measurement in the event of a malfunction
- Two control panels for operating functions performed by ground crew
- Operator’s Stand
- Convenient access to the operator’s platform, right and left
- Anti-vibration mounted operator’s platform across the full width of the machine including fold-out railing, right
- Electrical control cabinet on the operator’s platform for optimum accessibility and fast troubleshooting
- Electrical level indicator for the water tank on the external control panels
- Time display on the main control panel and on the exterior control panels
- Two mirrors at the front, one mirror at the rear of the machine
- Crawler Unit and Height Adjustment
- PTS – automatic alignment of the machine parallel to the pavement surface
- ISC – intelligent track speed control including hydraulic four-track drive
- Fourfold full-floating axle for high machine stability
- High travel speed of up to 100 m/min at low engine speeds (1,350 rpm), reduced diesel consumption and low noise emissions
- Lifting speed of the height adjustment feature increased by 60%
- Miscellaneous
- “Welcome” and “Go home” lights feature in the area of the operator’s platform and access
- High-pressure water system with automatic on/off function, 261 psi (18 bar), 17 gal/min (67 l/min)
- Good accessibility to all maintenance points on the engine station
- Pneumatic hammer with pick extractor/inserter
- Comprehensive toolkit in lockable toolbox
- Pre-fitting for installing the WITOS FleetView control unit
- European design type certification, EuroTest mark and CE conformity
Extended Equipment (US standard)
- Milling Drum Unit
- Quick-change milling drum unit FB2200 (7 ft 3 in) MCS BASIC
- Extension of MCS BASIC with a hydraulically opening side door for FB2200 (7 ft 3 in)
- Electrically switchable sectional water spray bar for FB2200 (7 ft 3 in)
- Hydraulic pick extractor
- Milling Drums
- Milling drum MCS BASIC fB2200 (7 ft 3 in) HT22 LA15 with 176 picks
- Loading of the Milled Material
- VCS extraction system
- Support device for discharge conveyor
- Machine and Leveling Control
- Actual milling depth measurement and display on the LEVEL PRO ACTIVE panel
- Active floating position for the side plates, left and right
- 7” control panel for displaying the machine control system and for controlling the leveling system (2 units)
- Extension of LEVEL PRO ACTIVE with two hydraulic sensors mounted on the right and left
- 4-fold camera system with 10” control panel
- Operator’s Stand
- Operator’s platform with functional stand-up seat, large storage compartment and weather canopy
- Miscellaneous
- Water tank filling from rear of machine
- Standard painting in RAL 9001 (cream)
- WITOS FleetView – professional telematics solution to optimize machine use and servicing
- Extended LED lighting system with 37,600 lumens
- Two-piece additional weight totaling 3,500 lbs (1,600 kg)
- Storage compartment close to the rear track units for 8 pick containers
- Milling Drum Unit
- Quick-change milling drum unit FB2000 (6 ft 7 in) MCS BASIC
- Quick-change milling drum unit FB2500 (8 ft 2 in) MCS BASIC
- Extension of MCS BASIC with a hydraulically opening side door for FB2000 (6 ft 7 in)
- Extension of MCS BASIC with a hydraulically opening side door for FB2500 (8 ft 2 in)
- Electrically switchable sectional water spray bar for FB2000 (6 ft 7 in)
- Electrically switchable sectional water spray bar for FB2500 (8 ft 2 in)
- Quick-change milling drum unit FB2000 (6 ft 7 in) MCS and milling MCS BASIC FB2000 (6 ft 7 in) LA15
- Quick-change milling drum unit FB2200 (7 ft 3 in) MCS and milling MCS BASIC FB2200 (7 ft 3 in) LA15
- Quick-change milling drum unit FB2500 (8 ft 2 in) MCS and milling MCS BASIC FB2500 (8 ft 2 in) LA18
- Milling Drums
- Milling drum MCS BASIC FB2000 (6 ft 7 in) HT22 LA15 with 162 picks
- Milling drum MCS BASIC FB2000 (6 ft 7 in) HT22 LA18 with 146 picks
- Milling drum MCS BASIC FB2200 (7 ft 3 in) HT22 LA18 with 155 picks
- Milling drum MCS BASIC FB2500 (8 ft 2 in) HT22 LA18 with 171 picks
- Milling drum FB2000 (6 ft 7 in) HT22 LA8 with 274 picks
- Milling drum FB2000 (6 ft 7 in) HT22 LA25 with 124 picks
- Milling drum FB2000 (6 ft 7 in) HT5 LA6X2 with 672 picks
- Milling drum FB2200 (7 ft 3 in) HT22 LA8 with 298 picks
- Milling drum FB2200 (7 ft 3 in) HT22 LA25 with 134 picks
- Milling drum FB2200 (7 ft 3 in) HT5 LA6X2 with 740 picks
- Milling drum MCS BASIC FB2000 (6 ft 7 in) HT22 LA8 with 272 picks
- Milling drum MCS BASIC FB2000 (6 ft 7 in) HT22 LA25 with 126 picks
- Milling drum MCS BASIC FB2000 (6 ft 7 in) HT5 LA6X2 with 672 picks
- Milling drum MCS BASIC FB2000 (6 ft 7 in) HT22 LA15 with 18 standard picks and 144 PCD tools
- Milling drum MCS BASIC FB2200 (7 ft 3 in) HT22 LA8 with 297 picks
- Milling drum MCS BASIC FB2200 (7 ft 3 in) HT22 LA25 with 121 picks
- Milling drum MCS BASIC FB2200 (7 ft 3 in) HT5 LA6X2 with 740 picks
- Milling drum MCS BASIC FB2200 (7 ft 3 in) HT22 LA15 with 18 standard picks and 158 PCD tools
- Milling drum MCS BASIC FB2500 (8 ft 2 in) HT22 LA8 with 335 picks
- Milling drum MCS BASIC FB2500 (8 ft 2 in) HT22 LA25 with 148 picks
- Milling drum MCS BASIC FB2500 (8 ft 2 in) HT22 LA18 with 18 standard picks and 152 PCD tools
- Loading of the Milled Material
- Mounting aid for lifting out the primary conveyor when changing the milling drum unit
- Machine and Leveling Control
- Overload sensors installed on the scraper
- 5” control panel for controlling the leveling system
- 2” control panel including “Favorites” keys
- Extension of LEVEL PRO ACTIVE with leveling booms and one Sonic Ski sensor
- Extension of LEVEL PRO ACTIVE with two ultrasonic sensors for multiplex scanning
- Extension of LEVEL PRO ACTIVE with four ultrasonic sensors for multiplex scanning
- Extension of LEVEL PRO ACTIVE with pre-fitting for 3D leveling for machines without canopy
- Extension of LEVEL PRO ACTIVE with pre-fitting for 3D leveling for machines with canopy
- Extension of LEVEL PRO ACTIVE with pre-fitting for 3D leveling for machines with cabin
- Extension of LEVEL PRO ACTIVE with two laser receivers
- Operator’s Stand
- Operator’s platform with functional stand-up seat, a large storage compartment and weather protection canopy
- Warm air heating close to the operator’s hands and feet
- Additional stand-up seat for operator’s platform
- Miscellaneous
- Hydraulically operated filling pump for water refilling
- Painting in one special color (RAL)
- WIRTGEN PERFORMANCE TRACKER including WITOS FleetView – precise tracking of the milling performance for machines without canopy or with operator’s cabin
- WIRTGEN PERFORMANCE TRACKER including WITOS FleetView – precise tracking of the milling performance for machines with canopy
- High-performance LED lighting system with 50,000 lumens, including LED lighting balloon
- Large storage compartment at the rear of the machine for 69 pick containers
- Milling drum mounting and transport carriage FB1500 (4 ft 11 in) to FB2500 (8 ft 2 in)
- Signal lights for visual “Stop” and “Go” instructions to the truck driver
- Powerful high-pressure water cleaner, 2175 psi (150 bar), 4 gal/min (15 l/min)
- 8-fold camera system with 10” control panel
- Dual starter system
- Electrical diesel suction and pressure pump including 24 ft 7 in (7.50 m) suction hose
- License plate holder with LD lighting
