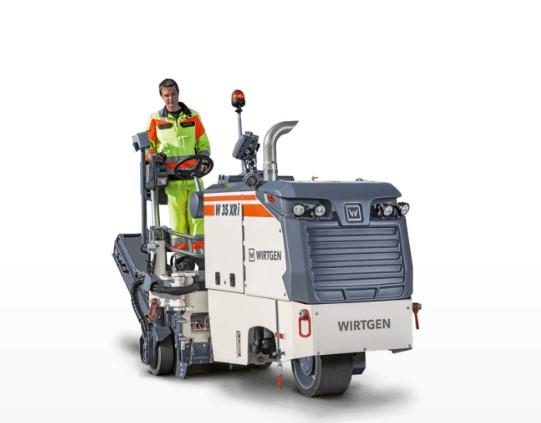

Wirtgen W 35 XRi

New Wirtgen W 35 XRi for Sale

New Wirtgen W 35 XRi Milling Machine for Sale

Asphalt and concrete pavements can be cost-effectively removed with cold milling machines. The range of applications extends from the complete removal of asphalt and concrete to the layer-by-layer removal and levelling of asphalt and concrete surfaces. With WIRTGEN cold milling machines, it is possible to machine working widths from 1 ft 2 in up to 14 ft 5 in and working depths up to 1 ft 2 in in a single pass. In addition, a large number of different milling drums, such as ECO cutters or fine milling drums, ensure that machines can be used with a high degree of flexibility.

Small milling machines are equipped with a wheeled chassis and a milling drum positioned at the rear. The granulated RAP which is broken up by the rotating milling drum is transferred to a slewing and height-adjustable discharge conveyor and immediately loaded onto waiting transport vehicles. The compact rear loaders are highly maneuverable and their rear right wheel can be swiveled in when milling flush to the edges of obstacles. A variety of different milling drums are available, enabling the small milling machines to cover a wide range of applications extending from partial pavement rehabilitations and tie-in milling to the rehabilitation of industrial floors.

Universal cold milling machine for a wide variety of applications

  • The highly maneuverable cold milling machine is perfect for milling jobs in confined spaces.
  • The machine’s range of applications can be extended through the use of a variety of different milling drums with milling drum housing widths of 14 in (0.35 m) or 20 in (0.5 m).
  • The machine is also suitable for renovation work in industrial warehouses or parking garages.
  • The W 35 XRi stands out for its low machine weight with additional weights that can be used as required for optimum ballasting and traction to meet varying requirements.
  • The LEVEL PRO PLUS leveling system fully integrated into the machine control system guarantees high-precision milling results.
Dimensions
Length 9’7”
Width 3’11”
Height 6’8”
Weight 10,252 lbs.
Engine
Engine Make Deutz AG
Engine Model TCD 2.9 L4
Cylinders 4
Horsepower 60 HP
Cooling Wasser
Displacement 176 in³
Fuel Consumption 3.5 gph at rated power
2.3 gph during a mixture of job site operations
Fuel Tank Capacity 18.5 Gallons
Water Tank Capacity 72.6 Gallons
Emission Standards US EPA Tier 4f
Drivetrain
Working Speed 0.9 mph (Milling Speed)
Tires Front: 20” x 10”
Rear: 16” x 5”
Travel Speed - Forward 3.7 mph
Hydraulic
Hydraulic Tank Capacity 8.5 Gallons
Operational
Cutting Width 14”
Cutting Depth 4”
Cutting Diameter 18”
Conveyor Belt Width 10”
Electrical
Power Supply 24 V
  • Exhaust emissions category: US EPA Tier 4f
  • Operating weight: 10,252 lbs.
  • Milling width: 14”
  • Milling depth max: 4”
  • Displacement: 176 in³
  • Max. travel speed: 3.7 mph
  • Max. milling speed: 0.9 mph
  • Maximum power: 60 HP



STANDARD EQUIPMENT

  • Basic Machine
    • Basic machine with engine
    • Robust machine chassis
    • Wide opening engine cowlins, with gas spring support and highly effective noise insulation
    • Radiator with temperature-dependent fan speed
    • Integrated 72 gal (275 liter) water tank
    • Integrated 18 gal (70 liter) diesel tank
    • Loading and tie-down points integrated in the chassis
    • Exhaust after-treatment diesel oxidation catalyic converter DOC
  • Milling Drum Assembly
    • Water sprayingstrip with on/off function for pick cooling with water pump with load-dependent control
    • Wide opening milling drum door with automatic electrcial safety shut-down
    • Right side plate in hinged configuration in conjunction with centering pin system on the milling drum holder for quick and easy change of milling drums
    • The right-hand side plate can be easily lifted using the foot pedal on the operator's stand
  • Machine Control and Leveling System
    • WIDRIVE machine controller to reduce operator workload and increase performance`
  • Operator's Platform
    • Flexibly mounted operator's platform on the top of the machine
    • Multi-function armrest on right with up/down and front/back adjustment with joystick and various controls ergonomically arranged
    • Display for important machine parameters on the left control panel
    • Convenient operating console with practical switches
    • Convenient footsetp to the operator's platform
    • Operator's platform with vibration damping
    • Steering console with adjustable inclination
    • Lockable control panel covers
  • Track Unit and Height Adjustment
    • Hydraulic 3-wheel all-wheel drive with hydraulic flow distributor
    • Two manually engageable milling speeds as well as one traveling gear
    • Hydraulic, easy front wheel steering
    • Hydraulic spring-loaded multi-disc brake
    • Hydraulic height adjustment with two speeds at the rear track units
    • Manually folding-in rear right wheel
  • Miscellaneous
    • Lockable toolbox with toolkit for maintenance and servicing
    • Additional mount for a pick container
    • Device for towing away for releasing the spring-loaded multi-disc brake
    • Reversing horn
    • Extensive safety package with EMERGENCY STOP switch
    • Pre-fitting for installing the WITOS FleetView control unit
    • European type certification , EuroTest mark and CE conformity



STANDARD EQUIPMENT, CAN BE REPLACED W/OPTIONAL EQUIPMENT IF DESIRED

  • Milling Drum Assembly
    • Ancillary parts for milling drum housing FB350 - for operation without discharge conveyor
  • Milling Drums
    • Milling drum FB350 HT08 LA 15 with 31 picks
  • Machine Control and Leveling System
    • Mechanical milling depth display right and left
  • Miscellaneous
    • Machine without additional hydraulic drive
    • Standard painting in RAL 9001 (cream)
    • WITOS FleetView - professional telematics solution for machine operation and service optimisation
    • Halogen lighting system including rotating beacon
  • Milling Drum Assembly
    • Ancillary parts for milling drum housing FB350 - for operation with discharge conveyor
    • Ancillary parts for milling drum housing FB500 - for operation without discharge conveyor
    • Ancillary parts for milling drum housing FB500 - for operation with discharge conveyor
  • Milling Drums
    • Milling drum FB500 HT08 LA15 with 39 picks
    • Side milling ring FB80, milling depth 7 in (180 mm) complete
    • Ancillary parts rail milling Ri59N
    • Milling drum FB25 with 6 picks rail milling
    • Milling drum FB45 with 24 picks rail milling
    • Saw blade FB14 rail milling
    • Saw blade FB19 rail milling
    • Adapter with saw blade FB14, MD100
    • Adapter with saw blade FB19, MD100
    • Fine milling drum FB350 HT5 LA6 with 57 picks
    • Microfine milling drum FB350 HT4 lA3 with 117 picks
    • Microfine milling drum gutter profile, FB150+2x25 (lateral taper) HT4 lA3 with 67 picks
    • Milling drum FB200+2x25 HT4 LA3 with 83 picks
    • Milling drum FB250+2x25 HT4 LA3 with 99 picks
    • Milling drum FB300+2x25 HT4 LA3 with 117 picks
    • Milling drum FB80 HT02 MD110 with 12 picks
    • Fine milling drum FB500 HT05 LA6 with 82 picks
    • Milling drum FB450+2x25 HT4 LA3 with 166 picks
  • Loading of the Milled Material
    • Discharge conveyor, 6 ft 2 in (1,870 mm) long, conveyor belt width 10 in (250 mm(), includes rope winch height adjustment
    • Connection pipe Ø 5 in (120 mmm) for dust extraction
  • Machine Control and Leveling System
    • LEVEL PRO PLUS leveling system right and left
    • Pre-fitting for laser leveling with two laser receiver - without laser transmitter
    • RAPID SLOPE cross-slope sensor for LEVEL PRO ACTIVE leveling system
    • Pre-programmable height positions with automatic positioning
  • Operator's Platform
    • Equipment of the operator's platform with a stand-up seat
    • Additional scraper plate FB350 required for footboard unit (for machine with discharge conveyor)
    • Additional scraper plate FB500 required for footboard unit (for machine with discharge conveyor)
    • Operator's platform in lowered position behind the machine
  • Miscellaneous
    • Hydraulic drive for discharge conveyor or hydraulic jack hammer
    • Painting in one special color (RAL)
    • Painting in two special colors (RAL)
    • Model without WITOS FleetView
    • High-power lighting system LED including rotating beacon
    • Modular additional weight 3,087 lbs (1,400 kg)
    • Hydraulic hammer including 32 ft 10 in (10-m) connecting hose
    • License plate holder with LED lighting
