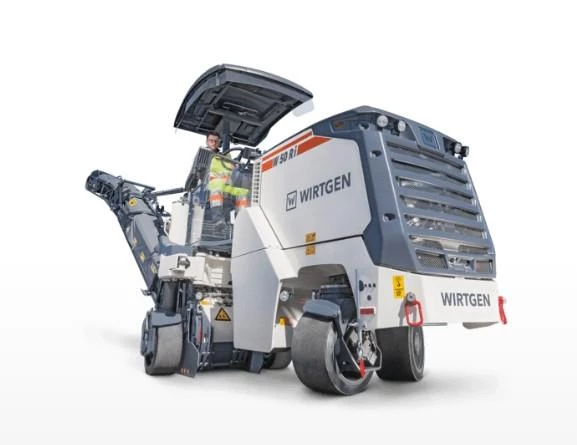

New Wirtgen W 50 Ri-US Small Milling Machine for Sale Asphalt and concrete pavements can be cost-effectively removed with cold milling machines. The range of applications extends from the complete removal of asphalt and concrete to the layer-by-layer removal and levelling of asphalt and concrete surfaces. With WIRTGEN cold milling machines, it is possible to machine working widths from 1 ft 2 in up to 14 ft 5 in and working depths up to 1 ft 2 in in a single pass. In addition, a large number of different milling drums, such as ECO cutters or fine milling drums, ensure that machines can be used with a high degree of flexibility. Small milling machines have a wheeled chassis and a milling drum positioned at the rear. The granulated RAP broken up by the rotating milling drum is transferred to a height-adjustable discharge conveyor that can be slewed to either side for direct loading onto waiting transport vehicles. The compact rear loaders are highly maneuverable and feature a right rear wheel that can be swiveled inwards for milling flush to the edges of obstacles. A wide range of different milling drums enables the small milling machines to cover a broad spectrum of applications ranging from partial pavement rehabilitation and milling tie-ins to the rehabilitation of floors in industrial buildings. High-Performance Rear Loader for Professional Milling Operations
Cold Milling with Small Milling Machines: Small milling machines are equipped with a wheeled chassis and a milling drum positioned at the rear of the machine. The granulated RAP separated by the rotating milling drum is collected by a slewing discharge belt located at the rear of the machine and immediately conveyed to waiting trucks. That is why small milling machines are also called rear loaders. The compact rear loaders are designed to be operated by a single person. In addition, they are usually extremely maneuverable and have a retractable right rear wheel. Wirtgen Cutting Technology: High quality results are the goal of every construction project. This applies to road rehabilitation using cold milling machines and cold recyclers as well as to soil stabilization and the extraction of minerals with surface miners. In order to remove pavement with precision and efficiency, it is essential that the drum, pick holder, and pick work together perfectly. Wirtgen is the market leader in cutting technology and offers customers high-performance cutting systems whose components are designed to be fully compatible. In addition, Wirtgen continuously makes advancements to these cutting technology components, incorporating its practical experience and feedback from customers into the process. Wirtgen Leveling Technology: Wirtgen’s leveling technology adjusts heigh, depth, and pitch for extremely accurate results. In the process the system permanently compares the actual values to predefined target values and adjusts the deviations proportionally. This state-of-the-art machine technology consistently guarantees outstanding leveling results and significantly reduces the machine operator’s workload. Wirtgen offers customers reliable hardware and software developed in-house. In this context, a variety of systems are used depending on the construction project and local conditions at the job site. Control Technology: All Wirtgen machines feature a built-in, high-quality machine control system. The fact that the majority of its software is developed in-house plays a key role in this regard – Wirtgen has placed a special focus on ongoing development, thus significantly increasing the operational reliability of its machines. Many years of experience in software and hardware development also makes it possible to achieve more flexible and sophisticated machine functionality in terms of the range of applications and individual customer requirements. |
| Dimensions | |
|---|---|
| Length | 31’8” |
| Width | 4’5” |
| Height | 11’8” |
| Weight | 15,278 lbs. |
| Engine | |
|---|---|
| Engine Make | Deutz |
| Engine Model | TCD 4.1 L4 |
| Cylinders | 4 |
| Horsepower | 141 HP |
| Cooling | Water |
| Displacement | 250.2 in³ |
| Fuel Consumption | 7.4 GPH 3 GPH (during a mixture of job site operations) |
| Fuel Tank Capacity | 60.8 Gallons |
| Water Tank Capacity | 158.5 Gallons |
| Emission Standards | US EPA Tier 4f |
| Drivetrain | |
|---|---|
| Working Speed | 0-1.8 MPH |
| Tires | Front Tire: 21” x 12” Rear Tire: 22” x 10” |
| Travel Speed - Forward | 5 MPH (3-wheeled version) 7.5 MPH (4-wheeled version) |
| Operational | |
|---|---|
| Cutting Width | 20” |
| Cutting Depth | 8” |
| Cutting Diameter | 2’6” |
| Conveyor Belt Width | 14” |
| Electrical | |
|---|---|
| Electrical System | 24 V |
| Sound Level | ≤ 101 dB (A) |
Exhaust emissions: US EPA Tier 4f
Operating weight: 15,278 lbs.
Milling Width: 20”
Milling Depth: 8”
Maximum Power: 141 HP
Max. Travel Speed 3-wheeled Model: 5 MPH
Max. Milling Speed: 0-1.8 MPH
Rated Power: 141 HP 2,300 min-1
STANDARD EQUIPMENT
Basic Machine
Milling Drum Unit
Loading of the Milled Material
Operator’s Platform
Track Unit and Height Adjustment
Miscellaneous
STANDARD EQUIPMENT, CAN BE REPLACED WITH OPTIONAL EQUIPMENT IF DESIRED
Milling Drum Unit
Milling Drums
Loading of the Milled Material
Machine Control and Leveling System
Operator’s Platform
Track Unit and Height Adjustment
Miscellaneous
Milling Drum Unit
Milling Drums
Loading of the Milled Material
Machine Control and Leveling System
Operator’s Platform
Track Unit and Height Adjustment
Miscellaneous
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Wirtgen |
| MODEL | W 50 Ri-US |
