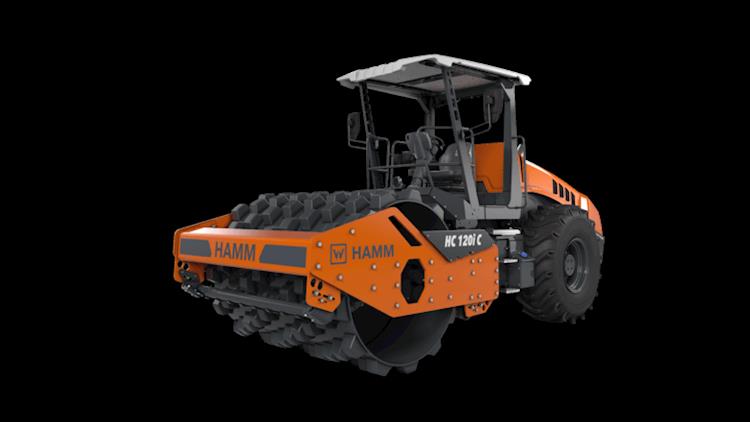

Kirby-Smith Machinery has a Hamm HC 120i C P Compactor for Sale. The compactors of the HC series offer an innovative and powerful complete package for earthmoving. With impressive compaction performance, intuitive handling and maximum driving comfort, the single-drum compactors are ideally suited for almost all earthmoving tasks. The compactors of the HC series are also characterized by environmentally friendly and modern engines.
|
Dimensions | |
---|---|
Length | 240.8” |
Width | 97.4” |
Height | 120.2” |
Weight | 25,787 lbs. (no cab, wo/ROPS) |
Wheelbase | 128.6” |
Ground Clearance | 18.1” |
Inside Turning Radius | 162.6” |
Curb Clearance | 18.8” (left/right) |
Centrifugal force | 34,875 lbs. (Front, II) 56,250 lbs. (Front, I) |
Width over Tires | 84.8” |
Tire Size | TR 23.1-26 12 PR |
Front Slope Angle | 33.7° |
Rear Slope Angle | 23.7° |
Engine | |
---|---|
Engine Make | John Deere |
Engine Model | JDPS 4045EWS |
Cylinders | 4 |
Horsepower | 114 HP |
Fuel Tank Capacity | 74 GPM |
Emission Standards | EU Stage V/EPA Tier 4 |
Rated Power | 2000 RPM |
Drivetrain | |
---|---|
Tires | 2 |
Steering | Articulated |
Speeds | 0-7.4 MPH |
Climbing ability | 66% |
Drive Regulation | Hammtronic |
Operational | |
---|---|
Drum Width | 84.3” |
Drum Diameter | 66.4” |
Drum Shell Thickness | 0.8” |
Vibration Frequency | 2,160 VPM (Front, II) 1,800 VPM (Front, I) |
Static Linear Drum Load | 185.9 lbs./in |
Drum Type | Compactor with padfoot drum |
Amplitude | 0.031” (Front, II) 0.071” (Front, I) |
Number of Padfeet | 140 |
Padfeet Height | 3.9” |
Weights | |
---|---|
Operating Weight | 27,386 lbs. (w/ROPS) 27,937 lbs. (w/cab) 31,576 lbs. (max.) |
Axle Load | 12,271 lbs. (Rear) 15,667 lbs. (Front) |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
Main Technical Specifications | |
---|---|
MAKE | Hamm |
MODEL | HC 120i C P |
