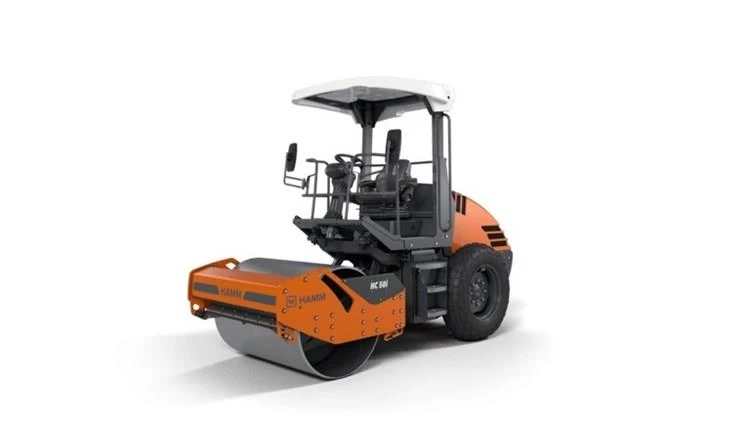

New Hamm HC 50i Compactor for Sale

The small compactors HC 50i and HC 70i offer impressive gradeability, optimum driving characteristics and a comfortable, spacious cab. The 5 t and 7 t machines are extremely easy to operate and offer ergonomically optimised workstations. This also makes the HC CompactLine series ideal for machine rental.

  • 3-point articulation for excellent traction and cross-country mobility
  • Simple, intuitive and language-neutral control
  • Compact dimensions
  • Excellent view of machine and construction site
  • High climbing ability



  • Three-point articulation: Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints.  This allows optimum steering, excellent driving safety and maximum driving comfort.
  • Smart Compaction: In the Smart Compaction product range, HAMM offers various solutions for intelligent and simple compaction, compaction measurement, and documentation.  The focus here is on digital interfaces between the driver and the machine as well as various assistants.  The innovations offered here (such as Smart Doc) contribute significantly to meeting the increasing demands for high compaction quality in modern earthworks and road construction, and directly integrating the megatrends of digitalization and resource conservation into daily construction site activity.
Dimensions
Length 159.1”
Width 79.4” (w/cab)
Height 111.7” (w/cab)
111.5” (w/ROPS & loading)
Wheelbase 85.4”
Ground Clearance 10.9”
Turning Radius 132.9”
Steering Angle +/-10°
Curb Clearance 13.0” (left/right)
Centrifugal force 14,949 lbs. (front)
Width over Tires 59.1”
Tire Size AW 12.4-24 8 PR
Front Slope Angle 44°
Rear Slope Angle 35°
Engine
Engine Make Deutz
Engine Model TD 2.9 L4
Cylinders 4
Horsepower 73.4 HP (Power ISO 14396)
72.4 HP (Power SAE J1349)
Fuel Tank Capacity 32.5 GPM
Emission Standards EPA Tier 4
Rated Power 2200 RPM
Drivetrain
Tires 2 (rear)
Steering Articulated
Speeds 0.0-7.8 (transportation gear)
0.0-3.7 (working gear)
Climbing ability 60% wo/vibration
Operational
Drum Width 53.9”
Drum Diameter 39.4”
Drum Shell Thickness 0.8"
Vibration Frequency 1800 VPM
Working Width 53.9”
Static Linear Drum Load 111.6 lbs./in.
Drum Type Smooth Drum
Amplitude 0.062” (front)
Weights
Operating Weight 13,539 lbs.
10,937 lbs. (w/ROPS)
10,352 lbs. (no cab, wo/ROPS)
11,455 lbs. (w/cab)
Axle Load 5,435 lbs. (rear)
6,020 lbs. (front)
Weight on Tires 2,718 lbs.
  • Description: Compactor with smooth drum
  • Exhaust Emissions Category: EPA Tier 4
  • Weight: 11,455 lbs.
  • Drum Width: 53.9”
  • Total Length: 159.1”
  • Width: 53.9” (working); 79.4” (w/cab)
  • Total Height: 111.7”
  • Height, loading, min: 111.5”



  • 12 V outlets (double)
  • 2 large working and rear view mirrors
  • 3-point articulation
  • Tray behind the driver’s seat
  • Storage bin under the driver’s seat
  • Trays
  • Anti-slip control
  • Dashboard with displays, indicator lights and switches
  • Fixture for cooler
  • ECO mode
  • Spring-mounted driver's seat with armrest and safety belt
  • Cup holder
  • Large angle of driving slope at front and rear
  • Hose protection on front vehicle
  • Vibration-isolated operator’s platform
  • Maintenance points, central on one machine side
  • ROPS cabin with heating and air conditioning, FOPS-approved (level I)
  • Safety belt monitoring device
  • Bluetooth interface for Smart Doc
  • Protective roof
  • Dozer blade
  • Speedometer
  • Automatic engine-off function
  • Camera system
  • Back-up alarm
  • JDLink
  • Working light
  • Battery isolating switch

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
