Hamm HC 50i P

Hamm HC 50i P

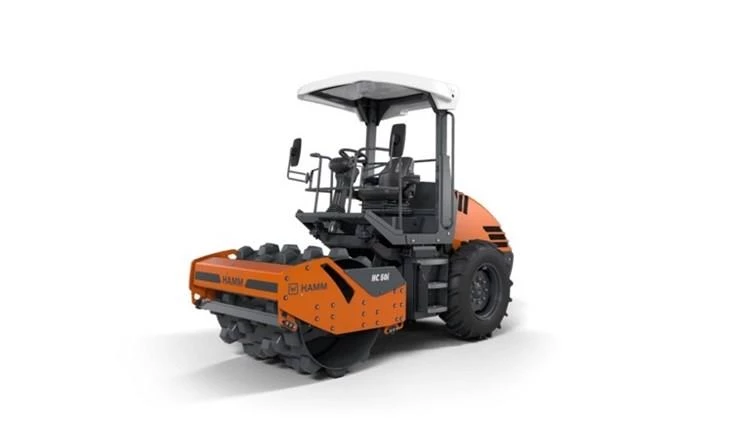

New Hamm HC 50i P Compactor for Sale

The small compactors HC 50i and HC 70i offer impressive gradeability, optimum driving characteristics and a comfortable, spacious cab. The 5 t and 7 t machines are extremely easy to operate and offer ergonomically optimised workstations. This also makes the HC CompactLine series ideal for machine rental.

  • High climbing ability
  • Excellent view of machine and construction site
  • Compact dimensions
  • Simple, intuitive and language-neutral control
  • 3-point articulation for excellent traction and cross-country mobility



  • Three-point articulation: Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints.  This allows optimum steering, excellent driving safety and maximum driving comfort.
  • Smart Compaction: In the Smart Compaction product range, HAMM offers various solutions for intelligent and simple compaction, compaction measurement, and documentation.  The focus here is on digital interfaces between the driver and the machine as well as various assistants.  The innovations offered here (such as Smart Doc) contribute significantly to meeting the increasing demands for high compaction quality in modern earthworks and road construction, and directly integrating the megatrends of digitalization and resource conservation into daily construction site activity.
Dimensions
Length 159.1”
Width 79.4” (w/cab)
Height 111.7” (w/cab)
111.5” (w/ROPS & loading)
Wheelbase 85.4”
Ground Clearance 10.9”
Turning Radius 132.9”
Steering Angle +/-10°
Curb Clearance 13.0” (left/right)
Centrifugal force 14,940 lbs. (front)
Width over Tires 59.1”
Tire Size TR 12.4-24 8 PR
Front Slope Angle 43°
Rear Slope Angle 36°
Engine
Engine Model TD 2.9 L4
Cylinders 4
Horsepower 73.4 HP (Power ISO 14396)
72.4 HP (Power SAE J1349)
Fuel Tank Capacity 32.5 GPM
Emission Standards EPA Tier 4
Rated Power 2200 RPM
Drivetrain
Tires 2 (rear)
Steering Articulated
Speeds 0.0-7.8 (transportation gear)
0.0-3.7 (working gear)
Climbing ability 60% wo/vibration
Operational
Drum Width 53.9”
Drum Diameter 45.5”
Drum Shell Thickness 0.6"
Vibration Frequency 1800 VPM
Working Width 53.9”
Drum Type Padfoot Drum
Amplitude 0.059” (front)
Number of Padfeet 60
Padfeet Height 3.1"
Weights
Operating Weight 12,943 lbs.
11,411 lbs. (w/ROPS)
10,827 lbs. (no cab, wo/ROPS)
11,929 lbs. (w/cab)
Axle Load 5,4335 lbs. (rear)
6,494 lbs. (front)
Weight on Tires 2,718 lbs.
  • Description: Compactor with padfoot drum
  • Exhaust Emissions Category: EPA Tier 4
  • Weight: 11,929 lbs.
  • Drum Width: 53.9”
  • Total Length: 159.1”
  • Width: 53.9” (working); 79.4” (w/cab)
  • Total Height: 111.7”
  • Height, loading, min: 111.5”



  • 12 V outlets (double)
  • 2 large working and rear view mirrors
  • 3-point articulation
  • Tray behind the driver’s seat
  • Storage bin under the driver’s seat
  • Trays
  • Anti-slip control
  • Dashboard with displays, indicator lights and switches
  • Fixture for cooler
  • ECO mode
  • Spring-mounted driver's seat with armrest and safety belt
  • Cup holder
  • Large angle of driving slope at front and rear
  • Hose protection on front vehicle
  • Vibration-isolated operator’s platform
  • Maintenance points, central on one machine side
  • ROPS cabin with heating and air conditioning, FOPS-approved (level I)
  • Safety belt monitoring device
  • Bluetooth interface for Smart Doc
  • Protective roof
  • Dozer blade
  • Speedometer
  • Automatic engine-off function
  • Camera system
  • Back-up alarm
  • JDLink
  • Working light
  • Battery isolating switch

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Hamm
MODEL HC 50i P

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Hamm HC 50i P

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Hamm HC 50i P Compactor for Sale

The small compactors HC 50i and HC 70i offer impressive gradeability, optimum driving characteristics and a comfortable, spacious cab. The 5 t and 7 t machines are extremely easy to operate and offer ergonomically optimised workstations. This also makes the HC CompactLine series ideal for machine rental.

  • High climbing ability
  • Excellent view of machine and construction site
  • Compact dimensions
  • Simple, intuitive and language-neutral control
  • 3-point articulation for excellent traction and cross-country mobility



  • Three-point articulation: Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints.  This allows optimum steering, excellent driving safety and maximum driving comfort.
  • Smart Compaction: In the Smart Compaction product range, HAMM offers various solutions for intelligent and simple compaction, compaction measurement, and documentation.  The focus here is on digital interfaces between the driver and the machine as well as various assistants.  The innovations offered here (such as Smart Doc) contribute significantly to meeting the increasing demands for high compaction quality in modern earthworks and road construction, and directly integrating the megatrends of digitalization and resource conservation into daily construction site activity.
GENERAL INFORMATION
Manufacturer
Hamm
Model Year
Model
HC 50i P
Condition
NEW
Dimensions
Length
159.1”
Width
79.4” (w/cab)
Height
111.7” (w/cab) 111.5” (w/ROPS & loading)
Wheelbase
85.4”
Ground Clearance
10.9”
Turning Radius
132.9”
Steering Angle
+/-10°
Curb Clearance
13.0” (left/right)
Centrifugal force
14,940 lbs. (front)
Width over Tires
59.1”
Tire Size
TR 12.4-24 8 PR
Front Slope Angle
43°
Rear Slope Angle
36°
Engine
Engine Model
TD 2.9 L4
Cylinders
4
Horsepower
73.4 HP (Power ISO 14396) 72.4 HP (Power SAE J1349)
Fuel Tank Capacity
32.5 GPM
Emission Standards
EPA Tier 4
Rated Power
2200 RPM
Drivetrain
Tires
2 (rear)
Steering
Articulated
Speeds
0.0-7.8 (transportation gear) 0.0-3.7 (working gear)
Climbing ability
60% wo/vibration
Operational
Drum Width
53.9”
Drum Diameter
45.5”
Drum Shell Thickness
0.6"
Vibration Frequency
1800 VPM
Working Width
53.9”
Drum Type
Padfoot Drum
Amplitude
0.059” (front)
Number of Padfeet
60
Padfeet Height
3.1"
Weights
Operating Weight
12,943 lbs. 11,411 lbs. (w/ROPS) 10,827 lbs. (no cab, wo/ROPS) 11,929 lbs. (w/cab)
Axle Load
5,4335 lbs. (rear) 6,494 lbs. (front)
Weight on Tires
2,718 lbs.
