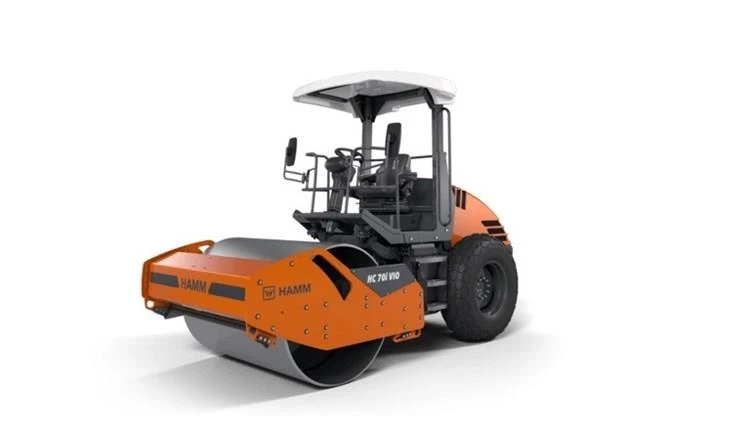

New Hamm HC 70i Compactor for Sale

The small compactors HC 50i and HC 70i offer impressive gradeability, optimum driving characteristics and a comfortable, spacious cab. The 5 t and 7 t machines are extremely easy to operate and offer ergonomically optimised workstations. This also makes the HC CompactLine series ideal for machine rental.

  • Simple, intuitive and language-neutral control
  • Excellent view of machine and construction site
  • 3-point articulation for excellent traction and cross-country mobility
  • Compact dimensions
  • High climbing ability



  • Three-point articulation: Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints.  This allows optimum steering, excellent driving safety and maximum driving comfort.
  • Smart Compaction: In the Smart Compaction product range, HAMM offers various solutions for intelligent and simple compaction, compaction measurement, and documentation.  The focus here is on digital interfaces between the driver and the machine as well as various assistants.  The innovations offered here (such as Smart Doc) contribute significantly to meeting the increasing demands for high compaction quality in modern earthworks and road construction, and directly integrating the megatrends of digitalization and resource conservation into daily construction site activity.
Dimensions
Length 174.8”
Width 79.4” (w/cab)
Height 113.5” (w/cab)
113.3” (w/ROPS & loading)
Wheelbase 92”
Ground Clearance 12.7”
Turning Radius 130.3”
Steering Angle +/-10°
Curb Clearance 14.0" (left/right)
Centrifugal force 21,308 lbs. (Front II)
26,550 lbs. (Front I)
Width over Tires 65.6”
Tire Size AW 14.9-24 6 PR
Front Slope Angle 38°
Rear Slope Angle 40°
Engine
Engine Model TD 2.9 L4
Cylinders 4
Horsepower 73.4 HP (Power ISO 14396)
72.4 HP (Power SAE J1349)
Fuel Tank Capacity 32.5 GPM
Emission Standards EPA Tier 4
Rated Power 2200 RPM
Drivetrain
Tires 2 (rear)
Steering Articulated
Speeds 0.0-7.8 (transportation gear)
0.0-3.7 (working gear)
Climbing ability 60% wo/vibration
Operational
Drum Width 66.1”
Drum Diameter 47.9”
Drum Shell Thickness 1"
Vibration Frequency 2520 VPM (Front II)
1800 VPM (Front I)
Working Width 66.1”
Static Linear Drum Load 141.3 lbs./in.
Drum Type Smooth Drum
Amplitude 0.026” (Front II)
0.067” (Front I)
Weights
Operating Weight 18,147 lbs.
15,049 lbs. (w/ROPS)
14,355 lbs. (no cab, wo/ROPS)
15,567 lbs. (w/cab)
Axle Load 6,218 lbs. (rear)
9,349 lbs. (front)
Weight on Tires 3,109 lbs.
  • Description: Compactor with smooth drum
  • Exhaust Emissions Category: EPA Tier 4
  • Weight: 15,567 lbs.
  • Drum Width: 66.1”
  • Total Length: 174.8”
  • Width: 66.1” (working); 79.4” (w/cab)
  • Total Height: 113.5”
  • Height, loading, min: 113.3”



  • 12 V outlets (double)
  • 2 large working and rear view mirrors
  • 3-point articulation
  • Tray behind the driver’s seat
  • Storage bin under the driver’s seat
  • Trays
  • Anti-slip control
  • Dashboard with displays, indicator lights and switches
  • Fixture for cooler
  • ECO mode
  • Spring-mounted driver's seat with armrest and safety belt
  • Cup holder
  • Large angle of driving slope at front and rear
  • Hose protection on front vehicle
  • Vibration-isolated operator’s platform
  • Maintenance points, central on one machine side
  • ROPS cabin with heating and air conditioning, FOPS-approved (level I)
  • Safety belt monitoring device
  • Bluetooth interface for Smart Doc
  • Protective roof
  • Dozer blade
  • Speedometer
  • Automatic engine-off function
  • Camera system
  • Back-up alarm
  • JDLink
  • Working light
  • Battery isolating switch

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Hamm
MODEL HC 70i

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Hamm HC 70i

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Hamm HC 70i Compactor for Sale

The small compactors HC 50i and HC 70i offer impressive gradeability, optimum driving characteristics and a comfortable, spacious cab. The 5 t and 7 t machines are extremely easy to operate and offer ergonomically optimised workstations. This also makes the HC CompactLine series ideal for machine rental.

  • Simple, intuitive and language-neutral control
  • Excellent view of machine and construction site
  • 3-point articulation for excellent traction and cross-country mobility
  • Compact dimensions
  • High climbing ability



  • Three-point articulation: Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints.  This allows optimum steering, excellent driving safety and maximum driving comfort.
  • Smart Compaction: In the Smart Compaction product range, HAMM offers various solutions for intelligent and simple compaction, compaction measurement, and documentation.  The focus here is on digital interfaces between the driver and the machine as well as various assistants.  The innovations offered here (such as Smart Doc) contribute significantly to meeting the increasing demands for high compaction quality in modern earthworks and road construction, and directly integrating the megatrends of digitalization and resource conservation into daily construction site activity.
GENERAL INFORMATION
Manufacturer
Hamm
Model Year
Model
HC 70i
Condition
NEW
Dimensions
Length
174.8”
Width
79.4” (w/cab)
Height
113.5” (w/cab) 113.3” (w/ROPS & loading)
Wheelbase
92”
Ground Clearance
12.7”
Turning Radius
130.3”
Steering Angle
+/-10°
Curb Clearance
14.0" (left/right)
Centrifugal force
21,308 lbs. (Front II) 26,550 lbs. (Front I)
Width over Tires
65.6”
Tire Size
AW 14.9-24 6 PR
Front Slope Angle
38°
Rear Slope Angle
40°
Engine
Engine Model
TD 2.9 L4
Cylinders
4
Horsepower
73.4 HP (Power ISO 14396) 72.4 HP (Power SAE J1349)
Fuel Tank Capacity
32.5 GPM
Emission Standards
EPA Tier 4
Rated Power
2200 RPM
Drivetrain
Tires
2 (rear)
Steering
Articulated
Speeds
0.0-7.8 (transportation gear) 0.0-3.7 (working gear)
Climbing ability
60% wo/vibration
Operational
Drum Width
66.1”
Drum Diameter
47.9”
Drum Shell Thickness
1"
Vibration Frequency
2520 VPM (Front II) 1800 VPM (Front I)
Working Width
66.1”
Static Linear Drum Load
141.3 lbs./in.
Drum Type
Smooth Drum
Amplitude
0.026” (Front II) 0.067” (Front I)
Weights
Operating Weight
18,147 lbs. 15,049 lbs. (w/ROPS) 14,355 lbs. (no cab, wo/ROPS) 15,567 lbs. (w/cab)
Axle Load
6,218 lbs. (rear) 9,349 lbs. (front)
Weight on Tires
3,109 lbs.
