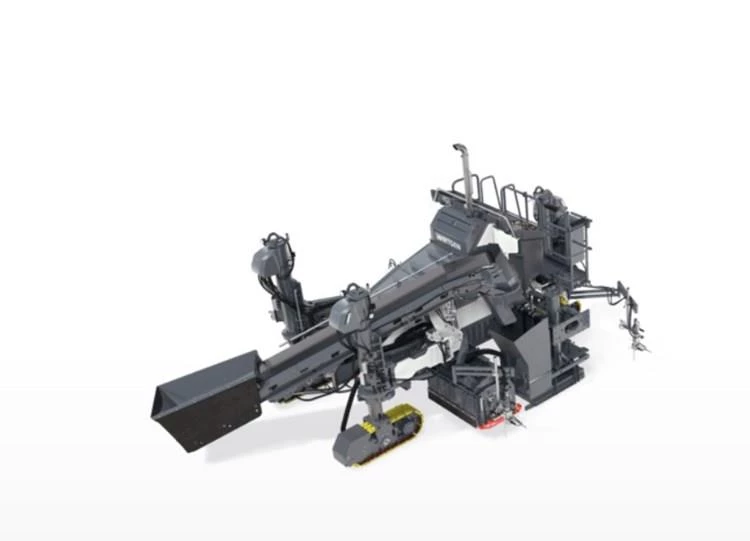

Wirtgen SP 33

New Wirtgen Paver

New Wirtgen SP 33 Paver for Sale

Continuous paving of concrete surfaces and monolithic profiles

Offset pavers are used to produce monolithic concrete profiles such as protective concrete walls, kerb profiles, gutters or narrow paths. Thanks to numerous options, such as for concrete feeding or slipforming, offset slipform pavers are extremely versatile. Inset pavers cost-effectively produce concrete pavements, such as for motorways, arterial roads, runways or railway lines. In addition to single-layer concrete paving, bottom-layer and top-layer concrete can also be paved synchronously in two layers ‘wet on wet’.

Offset slipform pavers

With offset slipform pavers, the concrete is transported into the offset mold via a loading conveyor or a conveyor auger. The offset mold can be mounted on the left or right-hand side of the machine. A number of molds in a wide range of different shapes and sizes are available for individual applications. The offset profiles are continually produced monolithically, with or without reinforcements. Machine features include a top-quality machine control system, a practical steering and drive system and stringline-free concrete paving.

Versatile, high-quality paving of monolithic profiles

The compact slipform paver can pave a wide range of monolithic concrete profiles such as curbs, curb-gutter profiles, rectangular profiles, concrete safety barriers up to a height of 52 in (1.3 m), drainage channels, and gutter profiles.

In the offset configuration, concrete surfaces up to a paving width of 7 ft (2.2) can also be realized in combination with a width of up to 8 ft (2.44 m) – even slabs with a paving width of up to 10 ft (3.0 m) can be realized in crosspave configuration without a Trimmer.

The slipform paver is ideal for construction sites where a high degree of maneuverability, tight radii and maximum flexibility are required.

Two crawler units with parallelogram swing legs at the front and a laterally adjustable crawler unit at the rear enable zero-clearance paving and maximum flexibility.

The machine can be precisely controlled via stringline scanning, without a stringline using WIRTGEN AutoPilot 2.0, or with third-party 3D applications.

Intuitive Human-Machine interface (MMI)

  • Interactive display of current machine parameters
  • Intuitive operating concept
  • Rugged 8” color touchscreen display
  • Alternative operating option with pushbuttons/rotary switches
  • Increased operational reliability through hardware/software redundancy
  • Vibrator adjustment integrated in the HMI
  • Programmable machine information and favorites buttons
  • Guided operating for transportation, set-up, and concrete paving
  • Easily adjustable speed control function

Outstanding Operating Comfort and Smart All-Round Visibility Concept

  • Spacious, raised operator’s platform for an ideal overview and freedom of movement
  • Convenient lateral extension of the operator’s platform
  • Generously dimensioned stowage compartments
  • Main control panel positionable at the right or left
  • Quick and easy lockable vandalism protection
  • 2” control panel for ground crew for setting up various machine functions

Perfection in Environmental Protection, Safety, and Serviceability

  • ECO-Mode diesel engine control for minimization of fuel consumption and CO2 and noise emissions
  • Easily accessible service and maintenance points
  • Vibration-protected operator’s platform and sound-proofed engine compartment
  • Comprehensive premium lighting concept
  • Welcome and Go Home light
  • Integrated flashing lights

Maximum Flexibility on the Construction Site

  • Choice of either belt conveyor or auger conveyor
  • New slider bed belt conveyor for low wear operation, a better overview, and easy cleaning
  • Freely-positionable crawler units
  • Optional premium mold suspension with hydraulic clamping and extended telescoping capability
  • Height-adjustable offset mold suspension
  • Hydraulically operated quick-change system for offset-and crosspave molds

Increased Versatility Thanks to Crosspave Capability

  • 90° rotatable crawler units for paving concrete slabs up to 10 ft (3.0 m) wide  in crosspave configuration
  • Easy machine transportation
  • Minimal reconfiguration effort for switching between offset and crosspave applications
  • Crosspave mold can also be used for offset-paving applications
  • Optionally up to eight hydraulic vibrators

Precise and Efficient Leveling and Steering

  • Latest-generation valve technology
  • Fast, precise, and rugged cylinder steering for a variety of steering modes
  • Finely controlled track steering in crosspave configuration
  • AutoPilot 2.0 machine control system – developed by Wirtgen
  • Integrated standard 3D interface

High-Performance Trimmer

  • Optional Trimmer for ground preparation to a trimming width of up to 8 ft (2.44 m)
  • Improved geometry enables exceptionally high material flow rate
  • Wide range of adjustment options and easy reconfiguration
  • Continuous trimmer drum speed adjustment
  • Wear-resistant flat picks for long service life and improved material flow
Body
Configuration Left or Right (Concrete Equipment for Offset Paving)
Number of Tracks 3
Track Arrangements 2 x front/1 x rear
Dimensions
Length 24’4”
Width 9’10”
Height 13’1”
Weight 27,778 lbs. (Offset configuration, w/belt conveyor wo/Trimmer)
33,069 lbs. (Offset configuration, w/auger conveyor and Trimmer)
31,967 lbs. (Crosspave configuration, with pre-fitting for Trimmer installation and grout box auger USA)
Operating Weight 22,046-37,479 lbs.
Transport Length 18’5” (Base machine wo/concrete feeding system)
25’4” (Base machine w/belt conveyor)
23’2” (Base machine w/auger conveyor)
18’2” (Belt conveyor wo/chute)
16’9” (Auger conveyor wo/chute)
4’6” (Min Trimmer)
10’6” (Max Trimmer)
Transport Height 9’1” (Base machine wo/concrete feeding system)
9’10” (Base machine w/belt conveyor)
9’3” (Base machine w/auger conveyor)
2’8” (Belt conveyor wo/chute)
42” (Auger conveyor wo/chute)
2’9” (Min Trimmer)
2’9” (Max Trimmer)
Transport Width 8’4” (Base machine wo/concrete feeding system)
8’4” (Base machine w/belt conveyor)
8’4” (Base machine w/auger conveyor)
40” (Belt conveyor wo/chute)
44” (Auger conveyor wo/chute)
2’4” (Min Trimmer)
2’4” (Max Trimmer)
Height Adjustment 39” (hydraulic-machine)
11” (mechanical-machine)
16” (Hydraulic-Trimmer)
15” (Mechanical-Trimmerl)
Conveyor Length Belt: 16’1” (Concrete Feeding)
Auger: 15’1” (Concrete Feeding) (Optional)
Crosspave Mold 7’5”-10’ (Concrete Equipment for Crosspave (Optional))
Lateral Mold Adjustment 2-steps, up to 47 in; 1st step-2’4”, 2nd step-20” (Concrete Equipment for Offset Paving)
Lateral Trimmer Adjustment 52”
Trimmer Width 2’ (standard)
8’ (max)
Trimmer Working Depth 0-4”
Engine
Fuel Tank Capacity 55.5 Gallons
Rated Power 95 kW/127 hp 2,100 min-1
Engine/Drivetrain
Working Speed 0-49 ft/min
Engine Make Deutz
Engine Model TCD 4.1 L4
Cylinders 4
Horsepower 127 HP
Cooling Water
Displacement 247 in³
Fuel Consumption 6.6 gal/h under full load
2.3 gal/h on-site mix
Emission Standards EU Stage 5/US EPA Tier 4f
Operational
Cutting Diameter 2’
Travel Speed - Forward 0-115 ft/min
Application Offset/Crosspave
Belt Conveyor Width 2’ (Concrete Feeding)
Auger Diameter 16” (Concrete Feeding Conveyor) (Optional)
Water Capacity 42.3 Gallons
Hopper Wall 7’5”-10’ (Concrete Equipment for Crosspave (Optional))
Vibrators Connectors Hydraulic-6
Hydraulic Crosspave (Optional)-8, when used together with Trimmer-6
Electric (optional)-6
Electrical
Electrical System 24 V
Sound Power ≤ 99 dB(A) according to EN 500-6
≥ 80 dB (A) on operator’s platform
Paving
Paving Width 7’
Paving Depth 52”
Spreader/Auger 7’5”-10’ (Concrete Equipment for Crosspave (Optional))
Track Size L x W x H
4’5” x 10” x 22” (Standard)
4’5” x 10” x 22” (Optional)
5’4” x 12” x 23” (Optional)
Paving Height 0-12”
Paving Thickness 12” (Concrete Equipment for Crosspave (Optional))

Exhaust emissions category: EU Stage 5/US EPA Tier 4f

Number of Crawler Tracks: 3

Paving Height: 0-12”

Height adjustment, hydraulic: 39”

Paving Width: 7”

Paving Depth: 52”

Height adjustment, mechanical: 11”

Rated Power: 95 kW/127 HP 2,100 min-1



Standard Equipment

  • Base Machine
    • 58 gal (220 l) fuel tank
    • 58 gal (220 l) hydraulic oil tank
    • Electrical system (24V)
    • A pressure and flow-rate controlled open circuit hydraulic pump for driving the track units
    • A pressure and flow-rate controlled open circuit hydraulic pump for driving the hydraulic or electric vibrators
    • A pressure-controlled open circuit hydraulic pump for all cylinder functions
    • A proportionally controlled closed circuit hydraulic pump for driving the auger conveyor or belt conveyor
  • Main Frame and Height Adjustment
    • Robustly-constructed machine frame for accommodating two track units at the front and one track unit at the rear
  • Track Unit and Chassis Linkage
    • Three hydraulically driven 3-roller crawler units, 4 ft 5 in (1.34 m) long; optionally, a 5 ft 3 in (1.61 m) long 4-roller crawler unit can also be used at the rear (for even better traction and lower ground pressure); gear ratio 1:42; including towing cable attachment
    • Continuously adjustable paving speed from 0 to 49 ft/min (0 to 15 m/min)
    • Continuously adjustable transport speed from 0 to 115 ft/min (0 to 35 m/min)
    • Three hydraulic leveling cylinders with a stroke of 39 in (1.00 m) and integrated position measuring system
    • The rear crawler unit can be moved along the rear suspension in order to select the most favorable position for the particular application it can also be moved hydraulically with a position measuring system as an additional option for even easier setup and display of the actual position of the crawler unit
  • Machine Control, Leveling, and Steering
    • CAN bus-based control and regulation system with touch-enabled 8” color display for intuitive machine operation, interactive machine display for set-up, transport, and concreting process, very clear set-up and diagnostics zone, choice of 11 different operating languages
    • Proportional electro-hydraulic leveling and steering by means of an SPS system including two leveling sensors, two steering sensors, and one slope sensor
    • Sensor mountings adjustable in height and range
  • Concrete Equipment for Offset Paving
    • Offset molds can be mounted on the left or right side of the machine
    • With the standard suspension, the mold can be telescoped outwards by 2 ft 4 in (0.70 m) at each side
  • Miscellaneous
    • Water tank with 42 gal (160 l) capacity and additional water tank with 77 gal (290 l) capacity
    • Machine pre-fitted for installation of the John Deere Operations Center control unit
    • European type certification, EuroTest mark, and CE conformity
    • Pre-fitted electrics and hydraulics for concrete feeding inside the machine



Standard Equipment, can be replaced with optional equipment if desired

  • Track Unit and Chassis Linkage
    • Configuration with one rigid and one slewing front crawler unit connection (parallelogram arm)
    • Three crawler units (3 rollers) with triple-grouser track pads (steel)
  • Vibrators
    • Hydraulic vibrator driven for up to 6 vibrators
    • 2x straight vibrators D66, hydraulically driven
  • Concrete Feeding
    • Slider bed belt conveyor 16 ft 1 in x 2 ft (4.90 m x 0.60 m) with reversible hydraulic drive, hydraulically adjustable
    • Steel chute
  • Concrete Equipment for Offset Paving
    • Mechanical standard mold suspension
    • Offset paving mold up to 2 ft (0.60 m) wide, max. height 16 in (0.40 m)
  • Miscellaneous
    • Standard paint finish RAL 9001 (cream)
    • John Deere Operations Center: Digital solutions for process, machine, and service optimization
    • High-performance lighting system with 4 LED working lights, 24V
  • Track Unit and Chassis Linkage
    • Two slewing front track units (parallelogram arms)
    • Three crawler units (3 rollers at the front, 4 rollers at the rear) with triple-grouser track pads (steel)
    • Three crawler units (3 rollers) with polyurethane track pads
    • Three crawler units (3 rollers at the front, 4 rollers at the rear) with polyurethane track pads
  • Machine Control, Leveling, and Steering
    • Hydraulic components, rear 90°-steering
    • Two slab tracers
    • Third height and steering sensor for tight cornering
    • Pre-fitted for installation of AutoPilot or a third-party 3D system
  • Vibrators
    • Electric vibrator drive with 10 kVA generator for up to 6 vibrators
    • Hydraulic vibrator drive for up to 8 vibrators
    • 2x bent vibrators D66, hydraulic
    • 2x straight vibrators D66, electric
    • 2x bent vibrators D66, electric
    • Straight vibrator D66, hydraulic
    • Bent vibrator D66, hydraulic
    • Straight vibrator D66, electric
    • Bent vibrator D66, electric
  • Concrete Equipment for Slab Paving
    • Crosspave mold, metric – base width 7 ft 5 in (2.25 m)
    • Mold suspension without additional height adjustment
    • Mold suspension with additional height adjustment
    • Crosspave mold – 10 in (0.25 m) extension element
    • Crosspave mold – 20 in (0.50 m) extension element
    • One-piece grout box auger – base width 7 ft 5 in (2.25 m)
    • Grout box auger – 10 in (0.25 m) extension element
    • Grout box auger – 20 in (0.50 m) extension element
  • Concrete Feeding
    • 15 ft 1 in x 16 in (4.60 m x 0.40 m) auger conveyor with reversible hydraulic drive, hydraulically adjustable
    • Steel-rubber chute for feeding concrete into the offset mold
  • Concrete Equipment for Offset Paving
    • Hydraulically shiftable standard mold suspension
    • Fully hydraulic premium mold suspension
    • Height adapter for split offset molds
    • Height-adjustable suspension with 20 in (0.50 m) lift for split offset mold
    • Hydraulic quick-change system for offset molds (for one-part mold)
    • Additional adapter plate for quick-change system
    • Hydraulic quick-change system for offset mold (two-part mold)
    • Height adapter for split offset molds for use with Trimmer
    • Split offset mold up to 24 in (0.60 m) wide, max. height 16 in (0.40 m)
    • Offset mold  from 24 in (0.60 m) to 47 in (1.20 m) wide, max. height 16 in (0.40 m)
    • Offset mold from 47 in (1.20 m) to 5 ft 11 in (1.80 m) wide, max. height 16 in (0.40 m)
    • Offset mold up to 35 in (0.90 m high), max. base width 24 in (0.60 m), including hopper
    • Offset mold up to 52 in (1.30 m) high, max. base width 24 in (0.60 m), including hopper
    • Split offset mold from 24 to 47 in (0.60 m to 1.20 m) wide, max. height 16 in (0.40 m)
    • Split combined offset mold up to 2 ft 6 in (0.75 m) wide and max. hiehgt of 16 in (0.40 m)
    • Split combined offset mold up to 43 in (1.10 m) wide and max. height of 16 in (0.40 m)
    • Offset paving mold up to 24 in (0.60 m) wide, max. height 16 in (0.40 m)
    • Bottom part for split offset paving mold (AV) up to 24 in (0.60 m) wide (max. height 16 in (0.40 m)
    • Bottom part for split offset paving mold (AV) from 24 to 47 in (0.60 m to 1.20 m) wide (max. height 16 in (0.40 m))
    • Profile insert for split combined offset mold up to 30 in (0.75 m) in width
    • Profile insert for split combined offset mold up to 43 in (1.10 m) in width
    • Set of hydraulic components for adjusting the side plates of an EV offset mold
    • Set of hydraulic components for adjusting the side plate of an AV offset mold
  • Offset Trimmer
    • Trimmer, basic width 24 in (0.61 m), for mounting on the left
    • Trimmer, basic width 24 in (0.61 m), for mounting on the right
    • Pre-fitted electrics and hydraulics for Trimmer
    • 12 in (0.30 m) Trimmer extension for mounting on the left
    • 18 in (0.45 m) Trimmer extension for mounting on the left
    • 24 in (0.61 m) Trimmer extension for mounting on the left
    • 12 in (0.30 m) Trimmer extension for mounting on the right
    • 18 in (0.45 m) Trimmer extension for mounting on the right
    • 24 in (0.61 m) Trimmer extension for mounting on the right
  • Operator’s Platform
    • Weather canopy for operator’s platform
  • Miscellaneous
    • One special paint color (RAL)
    • Custom painting in two colors (RAL)
    • Version without John Deere Operations Center
    • High-performance lighting system with 11 LED working lights, 24V
    • High-pressure cleaner
    • Additional water pump, 24V
    • Favorites panel (up to 5)
    • Additional control panel housing with storage option on the operator’s platform
    • Additional walkway extension
    • LED floodlight, 24V
    • Stringline tensioning system, complete with 3,281 ft (1,000 m) steel wire rope
    • Additional tensioning winch for the stringline tensioning system
    • Stringline tensioning system, complete with 4 x 984 ft (300 m) nylon cord
    • Radius kit, fiberglass rod as stringline alternative for paving in corners with different radii

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Wirtgen
MODEL SP 33

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Wirtgen SP 33

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Wirtgen SP 33 Paver for Sale

Continuous paving of concrete surfaces and monolithic profiles

Offset pavers are used to produce monolithic concrete profiles such as protective concrete walls, kerb profiles, gutters or narrow paths. Thanks to numerous options, such as for concrete feeding or slipforming, offset slipform pavers are extremely versatile. Inset pavers cost-effectively produce concrete pavements, such as for motorways, arterial roads, runways or railway lines. In addition to single-layer concrete paving, bottom-layer and top-layer concrete can also be paved synchronously in two layers ‘wet on wet’.

Offset slipform pavers

With offset slipform pavers, the concrete is transported into the offset mold via a loading conveyor or a conveyor auger. The offset mold can be mounted on the left or right-hand side of the machine. A number of molds in a wide range of different shapes and sizes are available for individual applications. The offset profiles are continually produced monolithically, with or without reinforcements. Machine features include a top-quality machine control system, a practical steering and drive system and stringline-free concrete paving.

Versatile, high-quality paving of monolithic profiles

The compact slipform paver can pave a wide range of monolithic concrete profiles such as curbs, curb-gutter profiles, rectangular profiles, concrete safety barriers up to a height of 52 in (1.3 m), drainage channels, and gutter profiles.

In the offset configuration, concrete surfaces up to a paving width of 7 ft (2.2) can also be realized in combination with a width of up to 8 ft (2.44 m) – even slabs with a paving width of up to 10 ft (3.0 m) can be realized in crosspave configuration without a Trimmer.

The slipform paver is ideal for construction sites where a high degree of maneuverability, tight radii and maximum flexibility are required.

Two crawler units with parallelogram swing legs at the front and a laterally adjustable crawler unit at the rear enable zero-clearance paving and maximum flexibility.

The machine can be precisely controlled via stringline scanning, without a stringline using WIRTGEN AutoPilot 2.0, or with third-party 3D applications.

Intuitive Human-Machine interface (MMI)

  • Interactive display of current machine parameters
  • Intuitive operating concept
  • Rugged 8” color touchscreen display
  • Alternative operating option with pushbuttons/rotary switches
  • Increased operational reliability through hardware/software redundancy
  • Vibrator adjustment integrated in the HMI
  • Programmable machine information and favorites buttons
  • Guided operating for transportation, set-up, and concrete paving
  • Easily adjustable speed control function

Outstanding Operating Comfort and Smart All-Round Visibility Concept

  • Spacious, raised operator’s platform for an ideal overview and freedom of movement
  • Convenient lateral extension of the operator’s platform
  • Generously dimensioned stowage compartments
  • Main control panel positionable at the right or left
  • Quick and easy lockable vandalism protection
  • 2” control panel for ground crew for setting up various machine functions

Perfection in Environmental Protection, Safety, and Serviceability

  • ECO-Mode diesel engine control for minimization of fuel consumption and CO2 and noise emissions
  • Easily accessible service and maintenance points
  • Vibration-protected operator’s platform and sound-proofed engine compartment
  • Comprehensive premium lighting concept
  • Welcome and Go Home light
  • Integrated flashing lights

Maximum Flexibility on the Construction Site

  • Choice of either belt conveyor or auger conveyor
  • New slider bed belt conveyor for low wear operation, a better overview, and easy cleaning
  • Freely-positionable crawler units
  • Optional premium mold suspension with hydraulic clamping and extended telescoping capability
  • Height-adjustable offset mold suspension
  • Hydraulically operated quick-change system for offset-and crosspave molds

Increased Versatility Thanks to Crosspave Capability

  • 90° rotatable crawler units for paving concrete slabs up to 10 ft (3.0 m) wide  in crosspave configuration
  • Easy machine transportation
  • Minimal reconfiguration effort for switching between offset and crosspave applications
  • Crosspave mold can also be used for offset-paving applications
  • Optionally up to eight hydraulic vibrators

Precise and Efficient Leveling and Steering

  • Latest-generation valve technology
  • Fast, precise, and rugged cylinder steering for a variety of steering modes
  • Finely controlled track steering in crosspave configuration
  • AutoPilot 2.0 machine control system – developed by Wirtgen
  • Integrated standard 3D interface

High-Performance Trimmer

  • Optional Trimmer for ground preparation to a trimming width of up to 8 ft (2.44 m)
  • Improved geometry enables exceptionally high material flow rate
  • Wide range of adjustment options and easy reconfiguration
  • Continuous trimmer drum speed adjustment
  • Wear-resistant flat picks for long service life and improved material flow
GENERAL INFORMATION
Manufacturer
Wirtgen
Model Year
Model
SP 33
Condition
NEW
Body
Configuration
Left or Right (Concrete Equipment for Offset Paving)
Number of Tracks
3
Track Arrangements
2 x front/1 x rear
Dimensions
Length
24’4”
Width
9’10”
Height
13’1”
Weight
27,778 lbs. (Offset configuration, w/belt conveyor wo/Trimmer) 33,069 lbs. (Offset configuration, w/auger conveyor and Trimmer) 31,967 lbs. (Crosspave configuration, with pre-fitting for Trimmer installation and grout box auger USA)
Operating Weight
22,046-37,479 lbs.
Transport Length
18’5” (Base machine wo/concrete feeding system) 25’4” (Base machine w/belt conveyor) 23’2” (Base machine w/auger conveyor) 18’2” (Belt conveyor wo/chute) 16’9” (Auger conveyor wo/chute) 4’6” (Min Trimmer) 10’6” (Max Trimmer)
Transport Height
9’1” (Base machine wo/concrete feeding system) 9’10” (Base machine w/belt conveyor) 9’3” (Base machine w/auger conveyor) 2’8” (Belt conveyor wo/chute) 42” (Auger conveyor wo/chute) 2’9” (Min Trimmer) 2’9” (Max Trimmer)
Transport Width
8’4” (Base machine wo/concrete feeding system) 8’4” (Base machine w/belt conveyor) 8’4” (Base machine w/auger conveyor) 40” (Belt conveyor wo/chute) 44” (Auger conveyor wo/chute) 2’4” (Min Trimmer) 2’4” (Max Trimmer)
Height Adjustment
39” (hydraulic-machine) 11” (mechanical-machine) 16” (Hydraulic-Trimmer) 15” (Mechanical-Trimmerl)
Conveyor Length
Belt: 16’1” (Concrete Feeding) Auger: 15’1” (Concrete Feeding) (Optional)
Crosspave Mold
7’5”-10’ (Concrete Equipment for Crosspave (Optional))
Lateral Mold Adjustment
2-steps, up to 47 in; 1st step-2’4”, 2nd step-20” (Concrete Equipment for Offset Paving)
Lateral Trimmer Adjustment
52”
Trimmer Width
2’ (standard) 8’ (max)
Trimmer Working Depth
0-4”
Engine
Fuel Tank Capacity
55.5 Gallons
Rated Power
95 kW/127 hp 2,100 min-1
Engine/Drivetrain
Working Speed
0-49 ft/min
Engine Make
Deutz
Engine Model
TCD 4.1 L4
Cylinders
4
Horsepower
127 HP
Cooling
Water
Displacement
247 in³
Fuel Consumption
6.6 gal/h under full load 2.3 gal/h on-site mix
Emission Standards
EU Stage 5/US EPA Tier 4f
Operational
Cutting Diameter
2’
Travel Speed - Forward
0-115 ft/min
Application
Offset/Crosspave
Belt Conveyor Width
2’ (Concrete Feeding)
Auger Diameter
16” (Concrete Feeding Conveyor) (Optional)
Water Capacity
42.3 Gallons
Hopper Wall
7’5”-10’ (Concrete Equipment for Crosspave (Optional))
Vibrators Connectors
Hydraulic-6 Hydraulic Crosspave (Optional)-8, when used together with Trimmer-6 Electric (optional)-6
Electrical
Electrical System
24 V
Sound Power
≤ 99 dB(A) according to EN 500-6 ≥ 80 dB (A) on operator’s platform
Paving
Paving Width
7’
Paving Depth
52”
Spreader/Auger
7’5”-10’ (Concrete Equipment for Crosspave (Optional))
Track Size
L x W x H 4’5” x 10” x 22” (Standard) 4’5” x 10” x 22” (Optional) 5’4” x 12” x 23” (Optional)
Paving Height
0-12”
Paving Thickness
12” (Concrete Equipment for Crosspave (Optional))

Legal Notice: Manufacturer Name, Logo and Model Information are Registered Trademarks of the Manufacturer.
Specifications and other information are subject to change without notice. No representation of accuracy is made.
Image is believed to be in the public domain or used with permission.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
LOCATIONS
CAREERS
CONTACT
