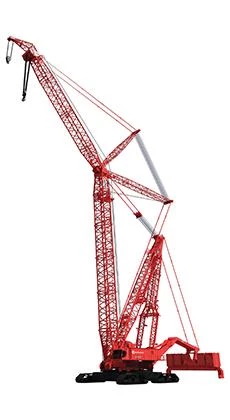

New Manitowoc 31000 Crane for Sale

As the largest capacity crawler ever designed and built by Manitowoc the new 31000 employs an innovative self-supporting counterweight. This feature called the Variable Position Counterweight system minimizes the crane's footprint and ground preparation.

Variable Position Counterweight (VPC): U.S. Patent 7,546,928 The Manitowoc 31000 features the only self-supporting counterweight system in the industry. By suspending the counterweights above the ground, site preparation is greatly reduced.  As load increases on the hook, the VPC is automatically repositioned to maintain a balanced load moment

CraneStar: CraneSTAR is an exclusive and innovative crane asset management system that helps improve your profitability and reduce costs by remotely monitoring critical crane data. Visit www.cranestar.com for more information.

Power plant: Two 447 kW (600 hp) Cummins diesel engines deliver power.

Crawlers: Four independent, trunnion mounted crawlers.

Transportation: The Manitowoc 31000 is designed to be efficiently transported globally
Body
Cab The operator’s cab is a fully enclosed and insulated steel module integral with the engine enclosure. Cab and engine enclosure are mounted on the left side of the rotating bed. Standard equipment includes; two 10.4" RCL and crane function displays, drum rotation indicators, travel cruise control, swing and travel alarms, RCL tower indicator light, sliding entry door, large safety glass windows, aluminum window covers, window washers and wipers, side mirrors, fire extinguisher, 6-way power seat with heat and massage, tablet-style personal computer with mounting bracket, one-way loud hailer/speaker, 240 VAC air conditioner, 240 VAC heater, defroster fans, dome lights, aluminum storage cabinets, fold-down jump seat, and AM/FM radio with CD player.
The operator’s station, including operator’s seat and crane controls, tilt up to 20°.
Seven closed circuit cameras provided; one to observe each of the two main load hoist drums, boom hoist drum, rigging assist drum, VPC, to view the load from the boom top, and the interior of the power plant enclosure. Camera information is displayed on two 10" and three 7" color monitors.
Frame Carbody: 5-section, high strength welded steel
Dimensions
Length 66 ft. 5 in.
Width 50’7”
Height 27 ft. 5 in.
Track Width 80 in.
Capacity 2,535 T
Engine
Engine Make Two Cummins
Engine Model Two QSX15
Engine Type In-line diesel
Cylinders 6
Horsepower 600 hp (447 kW)
Max Travel Speed 0.37 mph
Fuel Tank Capacity 600 gal.
Control System Modulating electronic over hydraulic controls provide infinite speed response directly proportional to the operator’s control lever movement. Controls include Manitowoc’s exclusive EPIC® Electronically Processed Independent Control system with CANBus technology providing microprocessor driven control logic, variable displacement pump and motor control, on-board diagnostics, and service information.
Block up limit control is provided for load hoist and whip lines.
The integrated Rated Capacity Limiter (RCL) is provided for main boom. The RCL for the extended upper boom point, luffing jib, and fixed jib is provided with each of these optional configurations.
Travel, swing and VPC alarms are standard.
Hydraulic
Hydraulic Capacity 460 Gallons
Hydraulic System High-pressure variable displacement piston pumps, driven by two (one per engine) multi-pump transmissions, provide independent closed-loop hydraulic power for load hoist drums, boom hoist, VPC, swing, crawlers, and optional luffing hoist. Accessory hydraulic power, for actuation of cylinders and powered pins, is provided by two variable displacement piston pumps. It is also shared with the crawler drive.
Each function is equipped with relief valves to protect the circuit from overload or shock.
Replaceable, ten micron (absolute) full flow tank filters are standard. All hydraulic fluid is filtered prior to returning to the reservoir.
The hydraulic system includes a hydraulic fluid heat exchanger designed for high cooling during ambient
Operational
Counterweight Max.: 2,126,000 lbs.
Drum The basic crane is equipped with two independent load hoist drums. Each drum is 1 785 mm (70-1/4") wide, 1 118 mm (44") diameter, and grooved for 50 mm wire rope.
Power is provided by four variable displacement axial piston motors driving two planetary reduction gearboxes. Each motor is coupled to its mating gearbox through a spring applied, hydraulically released wet multi-disc brake.
Standard line pull is 490 kN (110,230 lb).
Maximum main load drum line speed of 139 m/min (456 fpm) on the eighth layer.
Drum rotation indicator, third wrap indicator (bail limit), and pressure rollers are standard for each drum
Swing Eight swing drives are utilized. Each is powered by a fixed displacement axial piston motor coupled to a planetary reduction gearbox. The motor is connected to the mating gearbox through a spring applied, hydraulically released wet multi-disc brake and mechanical disconnect.
Four swing drives (two on each side) are mounted to each of the front and rear roller carriers. Each drive is equipped with a swing pinion aligning directly with ring gear teeth for optimum control and smooth swing
Swing Speed .50 RPM
Boom
Max Boom Length 361’
Max Jib Length 374’ (Luffing)
Max Capacity 2535 USt
Fixed Jib on Main Boom 137.8’
Boom Hoist An independent boom hoist drum, constructed with a common barrel divided equally by a center flange, is driven by four variable displacement axial piston motors through two planetary reduction gearboxes. Each motor is coupled to the mating gearbox through a spring applied, hydraulically released wet multi-disc brake.
The drum is grooved for 34 mm wire rope, continuously reeved with 28 parts of boom hoist
Electrical
Electrical System A 240 volt, 60 Hz, single phase
  • Variable position counterweight 8 m (28 ft) fully retracted to 29 m (95 ft) full extended
  • Four trunnion-mounted crawlers
  • Dual 447 kW (600 hp) Cummins engines
  • EPIC controls with CAN-Bus technology
  • Fast efficient self-assembly and disassembly
  • Meets global transportation requirements
  • Blocks and hooks.
    • 50 t (55 USt) swivel hook and weight ball and single hook with hook latch, weighing 5 000 kg (11,023 lb).
    • 200 t (220 USt) hook block with three 1 310 mm (51.6") diameter roller bearing sheaves grooved for 50 mm diameter wire rope, duplex swivel hook with hook latches, 90° swivel lock, and 250 t (275 USt) rated shackle hole, weighing 3 300 kg (7,275 lb).
      • Note: Supplied with a 4 400 kg (9,700 lb) weight kit for a total hook block weight of 7 700 kg (16,976 lb).
    • 2 000 t (2,205 USt) modular hook block assembly with twenty-two 1 310 mm (51.6") diameter roller bearing sheaves; grooved for 50 mm diameter wire rope and grouped into six block assemblies, two 1 000 t (1,102 USt) rated duplex hooks with hook latches (one hook provided with 90° swivel lock) and 1 250 t (1,378 USt) rated shackle holes.  Total weight of 55 t (60 USt).
      • Note: The 2 000 t (2,205 USt) rated hook block can be reconfigured into 1 400 t (1,543 USt), 1 200 t (1,323 USt), 1 000 t (1,102 USt), 600 t (661 USt), and 500 t (551 USt) rated hook block assemblies from the supplied parts.
      • Note: Supplied with a five piece shackle kit; 2 t (2.2 USt), 9,5 t (10.5 USt), 12 t (13.2 USt), 35 t (38.6 USt), and 85 t (93.7 USt)
    • 500 t (551 USt) rated link plates, when combined with one 5-sheave block and a 1 000 t (1,102 USt) duplex hook (with 90° swivel lock) from the 2 000 t (2,205 USt) modular hook block assembly, provides a compact 500 t (551 USt) rated hook block configuration for use during two hook operation. Weight of link components 12 t (13.2 USt) for a total assembled 500 t (551 USt) rated hook block weight of 22 t (24.3 USt).
  • 250 t (275 USt) rated wide body shackle assembly.
  • 1 250 t (1,378 USt) rated wide body shackle assembly.
  • Hydraulic Test Kit.
  • Service Interval Kits.
  • Lighting package(s), consult factory for available options.
  • Special Paint Color (other than Manitowoc standard red and black.)
  • Special Customer Decals: custom vinyl decal(s) of name and/or logo from artwork supplied by customer.
  • Export Packaging: basic crane, boom and jib sections
  • Engine
    • Optional: 240 VAC, 50 Hz, single phase,
    • hydraulically driven auxiliary generator.
    • Optional: 240 VAC, 50 Hz, single phase, diesel
    • engine driven standby generator.
  • Drums
    • Optional: Third load hoist drum
  • Variable Position Counterweight
    • Optional: Cast iron counterweight boxes
  • Operator’s Cab
    • Optional: One closed circuit camera to view the
    • third load hoist drum.
    • Optional: One closed circuit camera to view the
    • luffing hoist drum.
  • No. 90 heavy-lift boom
    • Optional: One 5 m (16' 5") No. 90 boom insert with steel suspension straps and FACT connection system.
    • Optional: 10 m (32' 10") No. 90 boom inserts with steel suspension straps and FACT connection system.
    • Optional: 200 t (220 USt) detachable upper boom point with two 1 321 mm (52") diameter roller bearing sheaves grooved for 50 mm diameter wire rope.
  • No. 91 Fixed Jib
    • Optional: Components to make up 24 m (78' 8") of basic fixed jib which includes a 10 m (32' 10”) No. 91 butt, 6 m (19' 8") No. 91 insert, an 8 m (26' 3") No. 91 top, wire rope guides, jib strut, basic fixed jib steel suspension straps, and FACT connection system.
    • Optional: 6 m (19' 8") No. 91 and 12 m (39'4") No. 91 inserts with steel suspension straps and FACT connection system.
    • Optional: 200 t (220 USt) detachable upper boom point with two 1 321 mm (52”) diameter roller bearing sheaves grooved for 50 mm diameter wire rope
  • No. 91 Luffing Jib
    • Optional: Components to make up 36 m (118' 1") of basic luffing jib includes a 10 m (32'10”) No. 91 butt, 6 m (19' 8") No. 91 insert, 12 m (39' 4") No. 91 insert, an 8 m (26' 3") No. 91 top, jib strut, main strut, main strut jib stop, luffing jib stop, basic luffing jib steel suspension straps, luffing jib raising beam, luffing drum assembly, 34 mm luffing hoist wire rope, and wire rope guides.
    • Optional: 6 m (19' 8") No. 91 and 12 m (39' 4") No. 91 inserts with steel suspension straps and FACT connection system.
    • Optional: 200 t (220 USt) detachable upper boom point with two 1 321 mm (52”) diameter roller bearing sheaves grooved for 50 mm diameter wire rope.
  • No. 90-91 Long Reach Boom
    • Optional: 10 m (32' 10") No. 90 transition insert with steel suspension straps and FACT connection system.
    • Optional: 8 m (26' 3") No. 91 jib top with steel suspension straps and FACT connection system.
    • Optional: One 6 m (19' 8") No. 91 insert with steel suspension straps and FACT connection system.
    • Optional: One 12 m (39' 4") No. 91 insert with  steel suspension straps and FACT connection  system.
    • Optional: 200 t (220 USt) detachable upper boom point with two 1 321 mm (52”) diameter roller bearing sheaves grooved for 50 mm diameter wire rope.
