Manitowoc MLC150-1

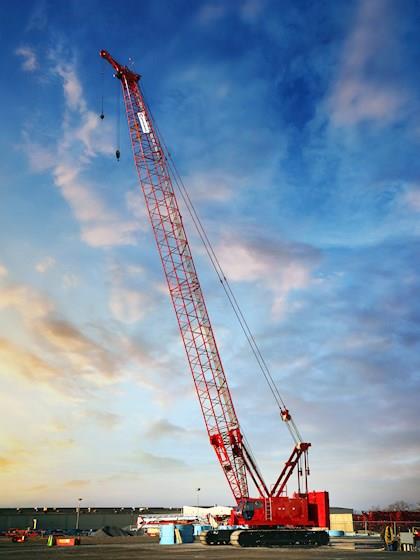

New Manitowoc Crane under the sky for Sale

New Manitowoc MLC150-1 Crane for Sale

The MLC150-1 is a competitive offering from Manitowoc in the 150 mt (165 USt) crawler crane market. Featuring self-assembly capabilities and button style wire rope terminations allow for quick and easy assembly. Additionally, new wide body cab and improved accessibility increase operator comfort and ease of maintenance.

Crane Control System (CCS) technology.  CCS includes: The seven components are: crane controller, safety controller, small IO (input/output), large IO, joysticks, jog-dial and display. Each can be easily replaced if necessary, or even switched from another machine for the purposes of completing a job.

Comfortable Cab Design

  • 10% more legroom for operator
  • Full high back seat with headrest and moveable riser supports operator comfortably
  • Utilizes Crane Control System (CCS)
  • Storage shelving located in the rear of the cab
  • Redesigned consoles providing more legroom
  • Left side console rotates for improved egress
  • Six-way electric seat riser/slider
  • Common with the MLC100-1

Efficient Self-Assembly

  • Gantry raised counterweight reduces components and maintenance
  • Boom butt mounted sheaves allow for reeving assembly hook without installing boom top
  • Button style wire rope terminations for easy reeving
  • Steel straps provide easy assembly and storage of boom suspension
Body
Cab New wider cab provides 10% increased operator legroom. Fully enclosed and galvaneeled steel insulated module is equipped with sliding door, large safety glass windows on all sides and roof. Signal horn, cab space heater, front and roof windshield wipers, air conditioning, dome light, sun visor and shade, fire extinguisher and air circulating fan are standard.
Optional: External RCI light, electronic level indicator, radio and camera system
Dimensions
Length 26’3”
Width 21’6”
Engine
Engine Make Cummins
Engine Model QSB6.7L
Engine Type Tier 4 Final (Stage V), Diesel
Cylinders 6
Horsepower 325 HP
Fuel Tank Capacity 125 Gallons
Control System The Crane Control System (CCS) offers a user-friendly interface, two full graphic displays mounted vertically for better visibility, a jog dial for easier data input and ergonomic joysticks. Block-up limit control is standard for hoist and whip lines. Travel and swing alarms are standard. RCL/RCI (Rated Capacity Limiter/Rated Capacity Indicator) system is standard.
Hydraulic
Hydraulic Capacity 115 Gallons
Hydraulic System Three high-pressure pumps are driven by the engine. Two pumps provide “open loop” hydraulic power enabling simultaneous multi-function capability. One pump provides independent “closed loop” hydraulic power for the swing system. An additional pump provides hydraulic power for the cooler fan and an additional pump is included with free fall. Hydraulic reservoir capacity is 115 gallon (436 liter) and is equipped with breather, sight and electrical level indicator, clean out access, and internal diffuser. Replaceable, full flow tank filters are furnished in the hydraulic circuit. All oil is filtered prior to return to the hydraulic reservoir. Hydraulic system also includes hydraulic oil cooler.
Operational
Counterweight The upperworks counterweight is attached to rotating bed with remote controlled hydraulically actuated pins. The upperworks counterweight consists of a one-piece tray and four upper counterweight boxes. Carbody counterweight boxes are each attached to carbody
Series 1 - Upper counterweight (6 pieces+tray) 75,300 lb (34,155 kg)
Series 2 - Upper counterweight (10 pieces+tray) 110,500 lb (50,120 kg)
Carbody counterweight (2 pieces) 35,000 lb (15,880 kg)
Total counterweight 145,500 lb (66,000 kg)
Drum Two 29.5 inch (750 mm) width drums are driven by independent variable displacement axial piston hydraulic motors through planetary reduction. Drums are grooved for 26 mm rope and mounted in rotating bed. Powered hoisting/lowering operation is standard with automatic (spring applied, hydraulically released) multi-disc brakes, and drum rotation indicators.
Optional: free-fall operation for front and/or rear drums.
Optional: auxiliary (third) hydraulic powered drum mounted in rotating bed. Drum is grooved for 26 mm rope. All hydraulic and electrical components to equip drum come along with the drum.
Swing Independent single swing drive mounted in rotating bed is powered by a hydraulic motor driving a spur gear through a planetary reduction with internal brake
Swing Speed 2.0 RPM
Boom
Max Boom Length 256’
Hoist 26 mm hoist rope
Max Jib Length Luffing: 170’
Max Capacity 165 USt
Fixed Jib on Main Boom 80’
Hoist Line Pull 29,600 lb. rated linepull on drum 1 & 2”
Boom Hoist Independent boom hoist consists of a single drum grooved for 0.875 inch diameter wire rope. Includes 0.875 inch diameter wire rope for boom hoist reeving. Drum is powered by a fixed displacement hydraulic motor coupled to an internal brake and planetary gearbox equipped with ratchet and pawl.
  • Efficient Self Assembly: Gantry raised counterweight; boom butt mounted sheaves for assembly block reeving; button style wire rope terminations and luffing jib, boom cap and struts ship as single package reducing connections during assembly.
  • Versatile Performance – 80 ft (24.3 m) No. 134 fixed jib and 170 ft (51.8 m) No. 135 luffing jib common with other Manitowoc cranes; Proven QSB6.7L Tier 4F/Stage V engine; Available free fall hoists for drums 1 and 2.
  • Comfortable Cab Design – 10% more legroom; full high back seat with moveable risers; Optional tilt cab available.
  • Superior Serviceability – CCS (Crane Control System) provides individual function hour tracking and onboard diagnostics for improved troubleshooting and maintenance; easily accessible site glasses and quick drains allow for easy oil level checks and quick and clean oil changes.
  • Spotter circuits for pile driving
  • Pile driving lead adapters
  • Powerpack mounting approvals
  • Backup power unit
  • Detachable upper boom point with one 30 in diameter tapered roller bearing sheave for No. 350 boom top
  • Blocks and hooks:
    • 6.5 USt (15 mT) cylindrical weight ball with swivel hook.
    • 33.1 USt (30 mT) hook block with one 24 in sheaves for 26 mm wire rope with swivel hook and hook latch.
    • 93.7 USt (85 mT) hook block with three 24 in sheaves for 26 mm wire rope with swivel hook and hook latch.
    • 148.8 USt (135 mT) hook block with five 24 in sheaves for 26 mm wire rope with swivel hook and hook latch.
  • Hydraulic test kit: recommended to properly analyze the performance of the hydraulic system
  • Service interval kits: including the items necessary to perform general scheduled maintenance, available through Crane Care
  • Special paint color: other than Manitowoc standard red and black
  • Special customer decals: custom vinyl decal(s) of name and/or logo from artwork supplied by customer
  • Export packaging: basic crane, boom and jib sections

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
