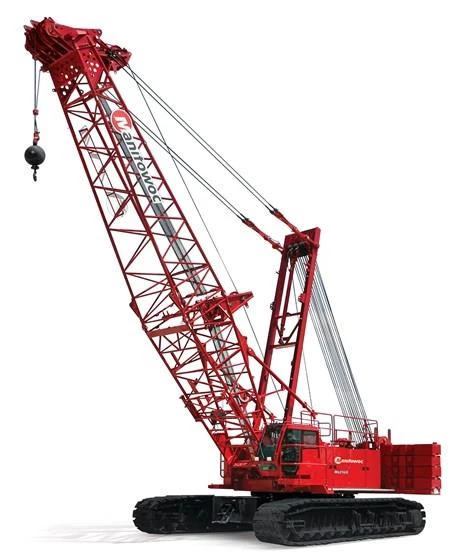

New Manitowoc MLC165-1 Crane for Sale

The Manitowoc MLC165-1 provides a broad range of features that will undoubtedly be translated into jobsite benefits that increase productivity and save money.

Crawler Connection: Each crawler is FACT™ aligned and securely fastened to the carbody with hydraulic powered pins for fast, easy assembly. Hydraulic connections utilize screw style quick disconnect couplers.

Counterweight: Single part number for upperworks counterweight can be stacked in any order, and raised into position using optional self-assembly counterweight raising cylinders.  Counterweight tray is retained in position using hydraulic powered pins with incorporated locking system for quick and hasselfree installation.

Asset Utilization: The MLC165-1 is able to be equipped with attachments that are already in common in the field. The No. 134 fixed jib has been used on the 777, 888, 999, 14000 and MLC165. In addition the No. 135 luffing jib has been used on the 888, 999, 14000 and MLC165

CraneSTAR is an exclusive and innovative crane asset management system that helps improve your profitability and reduce costs by remotely monitoring critical crane data.  Visit www.cranestar.com for more information.
Body
Cab Fully enclosed and galvaneeled steel insulated module is equipped with sliding door, large safety glass windows on all sides and roof. Signal horn, cab space heater, front and roof windshield wipers, air conditioning, dome light, sun visor and shade, fire extinguisher and air circulating fan are standard.
Additional optional: External RCI light.
Dimensions
Length 37’10”
Width 9 ft. 10 in.
Height 10 ft. 6 in.
Weight 84,000 lbs.
Track Width Crawler: 4 ft. 4 in.
Engine
Engine Make Cummins
Engine Model QSL9-310
Engine Type Tier 4 Final
Cylinders 6
Horsepower 325 HP
Max Travel Speed 1.9 mph
Fuel Tank Capacity 163 gal.
Control System Hydraulic pilot controls provide infinite speed response directly proportional to control lever movement. Controls include Manitowoc’s CANBUS operating system providing microprocessor driven control logic, pump control, on-board diagnostics and service information. Block-up limit control is standard for hoist and whip lines. RCL/RCI (Rated Capacity Limiter/Rated Capacity Indicator) system is standard for main boom and upper boom point. “Function cut-out” or “warning only” operation is available via programmable configuration. Travel and swing alarms are standard
Hydraulic
Hydraulic Capacity 158 Gallons
Hydraulic System Three high-pressure pumps are driven by the engine. Two pumps provide hydraulic power enabling simultaneous multi-function capability. One pump provides independent "closed loop" hydraulic power for the swing system. An additional fourth pump is required for free fall. Hydraulic reservoir capacity is 158 gallon and is equipped with breather, sight and electrical level indicator, clean out access, and internal diffuser. Each function is equipped with relief valves to protect the hydraulic circuit from overload or shock. Replaceable, ten micron (absolute) full flow tank filter is furnished in the hydraulic circuit. All oil is filtered prior to return to the hydraulic reservoir. Hydraulic system also includes hydraulic oil cooler.
Operational
Counterweight Counterweight raising cylinders are mounted in the rotating bed with chain connecting the top of the cylinders and the counterweight tray. The upper counterweight is secured to the rotating bed with hydraulically actuated pins. Upper counterweight consists of a one-piece tray and eight upper counterweight boxes. Series 2 carbody counterweight boxes are attached to carbody (each side) and weigh 22,500 lb
Series 1: Upper counterweight (6 pieces+tray) 101,450 lb
Series 2: Upper counterweight (8 pieces+tray) 123,500 lb
Carbody counterweight (2 pieces) 45,000 lb
Total counterweight 168,500 lb
Drum Two equal width winches are driven by independent variable displacement axial piston hydraulic motors through planetary reduction. Drums are grooved for 26 mm rope. Powered hoisting/lowering operation is standard with automatic (spring applied, hydraulically released) multi-disc brakes, and drum rotation indicators.
Optional: free-fall operation for front and/or rear drums.
Optional: auxiliary (third) hydraulic powered drum mounted in boom butt. Includes third drum control system. Auxiliary drum may be used as the luffing hoist when machine is equipped with a luffing jib.
Optional: auxiliary drum preparation includes electric wiring, controls, hydraulic selector valve and plumbing.
Swing Independent single swing drive mounted in rotating bed is powered by a hydraulic piston type motor driving a spur gear through a planetary reduction. Internal brake and four position manual swing lock is provided.
Swing Speed 2.5 RPM
Boom
Jib Max. Fixed: 80 ft.
Max. Luffing: 170 ft.
Max Boom Length 275 ft.
Max Jib Length Luffing: 170’
Max Capacity 182 USt
Fixed Jib on Main Boom 80’
Boom Hoist Independent boom hoist consists of a single drum grooved for 22 mm diameter wire rope. Includes 22 mm diameter wire rope for 18 part line reeving. Drum is powered by a fixed displacement hydraulic motor coupled to an internal brake and planetary gearbox equipped with ratchet and pawl.
  • Mirrors for viewing drum operation and surroundings from operator’s cab
    • Camera system includes: drum cameras and monitor
    • Handrails and ladder to allow easy access to machinery from top of enclosures.
    • Self-erect system includes: carbody jacking cylinders with pads, controls, self assembly cylinder, boom-butt installation support, counterweight cylinders and crawler handling chain.
  • Detachable upper boom point with one 30" diameter tapered roller bearing sheave for No. 74 boom top (this is same upper boom point used on 555, 777, 999, 2250,16000 and 18000).
  • Blocks and hooks –
    • 60 USt hook block with two 30" sheaves for 26 mm wire rope with swivel hook, hook latch and swivel lock.
    • 100 USt hook block with three 30" sheaves for 26 mm wire rope with swivel hook, hook latch, and swivel lock.
    • 165 USt hook block with five 30" sheaves for 26 mm wire rope with single barb swivel hook, hook latch, and swivel lock.
    • 220 USt hook block with seven 30” sheaves for 26 mm wire rope with duplex swivel hook, hook latch, and swivel lock.
  • Hydraulic Test Kit: recommended to properly analyze the performance of the hydraulic system.
  • Service Interval Kits including the items necessary to perform general scheduled maintenance.
  • Special Paint Color (other than Manitowoc standard red and black.)
  • Zinc rich primer (marine applications) for corrosion resistance.
  • Special Customer Decals: custom vinyl decal(s) of name and/or logo from artwork supplied by customer.
  • Export Packaging: basic crane, boom and jib sections

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Manitowoc
MODEL MLC165-1

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Manitowoc MLC165-1

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Manitowoc MLC165-1 Crane for Sale

The Manitowoc MLC165-1 provides a broad range of features that will undoubtedly be translated into jobsite benefits that increase productivity and save money.

Crawler Connection: Each crawler is FACT™ aligned and securely fastened to the carbody with hydraulic powered pins for fast, easy assembly. Hydraulic connections utilize screw style quick disconnect couplers.

Counterweight: Single part number for upperworks counterweight can be stacked in any order, and raised into position using optional self-assembly counterweight raising cylinders.  Counterweight tray is retained in position using hydraulic powered pins with incorporated locking system for quick and hasselfree installation.

Asset Utilization: The MLC165-1 is able to be equipped with attachments that are already in common in the field. The No. 134 fixed jib has been used on the 777, 888, 999, 14000 and MLC165. In addition the No. 135 luffing jib has been used on the 888, 999, 14000 and MLC165

CraneSTAR is an exclusive and innovative crane asset management system that helps improve your profitability and reduce costs by remotely monitoring critical crane data.  Visit www.cranestar.com for more information.
GENERAL INFORMATION
Manufacturer
Manitowoc
Model Year
Model
MLC165-1
Condition
NEW
Body
Cab
Fully enclosed and galvaneeled steel insulated module is equipped with sliding door, large safety glass windows on all sides and roof. Signal horn, cab space heater, front and roof windshield wipers, air conditioning, dome light, sun visor and shade, fire extinguisher and air circulating fan are standard. Additional optional: External RCI light.
Dimensions
Length
37’10”
Width
9 ft. 10 in.
Height
10 ft. 6 in.
Weight
84,000 lbs.
Track Width
Crawler: 4 ft. 4 in.
Engine
Engine Make
Cummins
Engine Model
QSL9-310
Engine Type
Tier 4 Final
Cylinders
6
Horsepower
325 HP
Max Travel Speed
1.9 mph
Fuel Tank Capacity
163 gal.
Control System
Hydraulic pilot controls provide infinite speed response directly proportional to control lever movement. Controls include Manitowoc’s CANBUS operating system providing microprocessor driven control logic, pump control, on-board diagnostics and service information. Block-up limit control is standard for hoist and whip lines. RCL/RCI (Rated Capacity Limiter/Rated Capacity Indicator) system is standard for main boom and upper boom point. “Function cut-out” or “warning only” operation is available via programmable configuration. Travel and swing alarms are standard
Hydraulic
Hydraulic Capacity
158 Gallons
Hydraulic System
Three high-pressure pumps are driven by the engine. Two pumps provide hydraulic power enabling simultaneous multi-function capability. One pump provides independent "closed loop" hydraulic power for the swing system. An additional fourth pump is required for free fall. Hydraulic reservoir capacity is 158 gallon and is equipped with breather, sight and electrical level indicator, clean out access, and internal diffuser. Each function is equipped with relief valves to protect the hydraulic circuit from overload or shock. Replaceable, ten micron (absolute) full flow tank filter is furnished in the hydraulic circuit. All oil is filtered prior to return to the hydraulic reservoir. Hydraulic system also includes hydraulic oil cooler.
Operational
Counterweight
Counterweight raising cylinders are mounted in the rotating bed with chain connecting the top of the cylinders and the counterweight tray. The upper counterweight is secured to the rotating bed with hydraulically actuated pins. Upper counterweight consists of a one-piece tray and eight upper counterweight boxes. Series 2 carbody counterweight boxes are attached to carbody (each side) and weigh 22,500 lb Series 1: Upper counterweight (6 pieces+tray) 101,450 lb Series 2: Upper counterweight (8 pieces+tray) 123,500 lb Carbody counterweight (2 pieces) 45,000 lb Total counterweight 168,500 lb
Drum
Two equal width winches are driven by independent variable displacement axial piston hydraulic motors through planetary reduction. Drums are grooved for 26 mm rope. Powered hoisting/lowering operation is standard with automatic (spring applied, hydraulically released) multi-disc brakes, and drum rotation indicators. Optional: free-fall operation for front and/or rear drums. Optional: auxiliary (third) hydraulic powered drum mounted in boom butt. Includes third drum control system. Auxiliary drum may be used as the luffing hoist when machine is equipped with a luffing jib. Optional: auxiliary drum preparation includes electric wiring, controls, hydraulic selector valve and plumbing.
Swing
Independent single swing drive mounted in rotating bed is powered by a hydraulic piston type motor driving a spur gear through a planetary reduction. Internal brake and four position manual swing lock is provided.
Swing Speed
2.5 RPM
Boom
Jib
Max. Fixed: 80 ft. Max. Luffing: 170 ft.
Max Boom Length
275 ft.
Max Jib Length
Luffing: 170’
Max Capacity
182 USt
Fixed Jib on Main Boom
80’
Boom Hoist
Independent boom hoist consists of a single drum grooved for 22 mm diameter wire rope. Includes 22 mm diameter wire rope for 18 part line reeving. Drum is powered by a fixed displacement hydraulic motor coupled to an internal brake and planetary gearbox equipped with ratchet and pawl.
