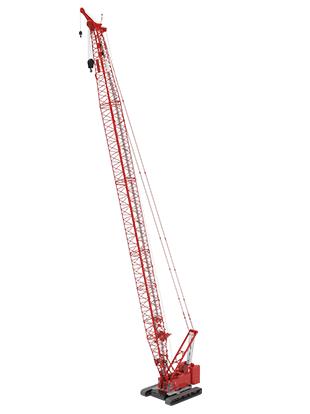

New Manitowoc MLC250 Lattice-Boom Crawler Cranes for Sale The new Manitowoc MLC250 builds on the field-proven 999 to remain unmatched in the 250-ton crawler class. The crawler is updated with the latest Manitowoc Crane Control System (CCS), open loop hydraulics for more responsiveness improved efficiency, and easier service access. The MLC250 shares common components with legacy and current production Manitowoc models that make this a cost-effective investment in your fleet.
Efficient self-assembly
Versatile performance
Comfortable cab design
|
| Body | |
|---|---|
| Cab | New wider cab provides 10% increased operator legroom. Fully enclosed and galvaneeled steel insulated module is equipped with sliding door, large safety glass windows on all sides and roof. Signal horn, cab space heater, front and roof windshield wipers, air conditioning, dome light, sun visor and shade, fire extinguisher and air circulating fan are standard. |
| Car Body | Special 4-axle chassis, all-welded torsion-resistant box type construction in high strength steel. |
| Dimensions | |
|---|---|
| Weight | 95,500 lbs. (shipping) |
| Capacity | 275 USt |
| Engine | |
|---|---|
| Engine Make | Cummins |
| Engine Model | QSL9 |
| Engine Type | Tier 4 Final Stage V Engine |
| Cylinders | 6 |
| Horsepower | 340 HP |
| Control System | The Crane Control System (CCS) offers a user-friendly interface, full graphic display mounted vertically for better visibility, a jog dial for easier data input and ergonomic joysticks. Block-up limit control is standard for hoist and whip lines. Travel and swing alarms are standard. RCL/RCI (Rated Capacity Limiter/Rated Capacity Indicator) system is standard. |
| Hydraulic | |
|---|---|
| Hydraulic Capacity | 145 Gallons |
| Hydraulic System | Three high-pressure pumps are driven by the engine. Two pumps provide “open loop” hydraulic power enabling simultaneous multi-function capability. One pump provides independent “closed loop” hydraulic power for the swing system. An additional pump provides hydraulic power for the cooler fan and an additional pump is included with free fall. |
| Operational | |
|---|---|
| Counterweight | The upperworks counterweight is attached to rotating bed with remote controlled hydraulically actuated pins. The upperworks counterweight consists of a one-piece tray, one center counterweight adapter, and ten upper counterweight boxes. Carbody counterweight boxes are attached to carbody |
| Drum | Two 37 inch (940 mm) width drums are driven by independent variable displacement axial piston hydraulic motors through planetary reduction. Drums are grooved for 26 mm rope and mounted in rotating bed. Powered hoisting/lowering operation is standard with automatic (spring applied, hydraulically released) multi-disc brakes, and drum rotation indicators |
| Swing | Independent single swing drive mounted in rotating bed is powered by a hydraulic motor driving a spur gear through a planetary reduction with internal brake. |
| Swing Speed | 1.8 RPM |
| Mast and Gantry | The 20 part boom hoist reeving is reeved between the 10 sheave gantry and 11 sheave 9,1 m (30 ft) long live mast with the dead end on the gantry. When used with rigging block sheaves in the live mast the machine is capable of installing carbody counterweights, stacking the upperworks counterweights and assembling the boom and jib. The gantry is also utilized to lift the entire upperworks counterweight assembly into place. |
| Boom | |
|---|---|
| Max Boom Length | 290’ |
| Hoist | 1.02” |
| Max Jib Length | 80’ 240’ (Luffing) |
| Boom Hoist | Independent boom hoist consists of a single drum grooved for 22 mm diameter wire rope. Includes 22 mm diameter wire rope for boom hoist reeving. Drum is powered by a fixed displacement hydraulic motor coupled to an internal brake and planetary gearbox equipped with ratchet and pawl. |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Manitowoc |
| MODEL | MLC250 |
