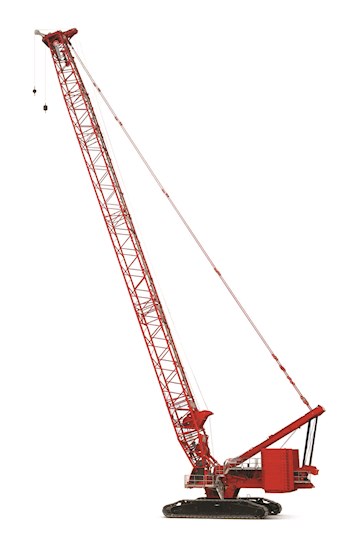

New Manitowoc MLC650 VPC-MAX Crane for Sale

The new Manitowoc MLC650 features a Variable Position Counterweight™ (VPC™) that allows the crane’s counterweight to be positioned automatically while still offering an unmatched level of versatility and capability.  In addition to the VPC™ the optional VPC-MAX™ attachments increase the capacity boom and jib combination lengths while utilizing all of the standard VPC™ components.  The Crane Control System is also a newly-added feature that aids the operator in a quick and easy set-up

Crane Control System: The Crane Control System offers a user-friendly interface, two full graphic displays mounted horizontally for better visibility, a jog dial for easier data input and ergonomic joysticks.

Variable Position Counterweight (VPC): The Manitowoc MLC650 features a counterweight system that automatically positions the crane’s counterweight as required to match lifting demands.  Crane lifting capability is optimized by automatic positioning of the counterweight, eliminating the need for carbody counterweight. Additionally, counterweight boxes are designed to be common across multiple crane platforms and will be utilized on Manitowoc Model MLC300 as well as future new models.

VPC-MAX: Capacity and boom and jib combination lengths can be increased through addition of the exclusive VPC-MAX attachment. The VPC-MAX attachment utilizes all of the standard VPC components, and only requires the addition of a 118.1 ft fixed mast and the VPC-MAX beam. With the VPC-MAX attachment, the load moment of the MLC650 more than doubles its load. The position of the VPC-MAX counterweight is automatically positioned based on lifted load, boom length, or boom and jib length and load radius.

FACT™ Connectors: Manitowoc’s Fast Aligning Connection Technology (FACT™) automatically aligns crane components for fast, easy assembly

CraneSTAR is an exclusive and innovative crane asset management system that helps improve your profitability and reduce costs by remotely monitoring critical crane data.  Visit www.cranestar.com for more information.
Body
Cab The Vision Cab™ is a fully enclosed and insulated galvannealed steel fabricated module mounted to the left front corner of rotating bed. Operator’s cab is equipped with power tilt, sliding door, large safety glass windows, front and roof windshield wipers, dome light, sun visor and shade, fire extinguisher, air conditioning, swing and travel alarms, and radio/CD player. Operator’s station swings over front of rotating bed for transportation.
Optional: Polyethylene protective window covers.
Dimensions
Length 36 ft. 11 in. track
Width 30 ft. 8 in.
Height 19 ft. 1 in. top of cab
Track Width 5 ft.
Capacity 716 T
Engine
Engine Make Cummins
Engine Model QSX15
Engine Type Tier 4 Final Diesel
Horsepower 600 hp @ 1,800
Fuel Tank Capacity 295 gal.
Control System The Crane Control System offers a user-friendly interface, two full graphic displays mounted horizontally for better visibility, a jog dial for easier data input and ergonomic joysticks.
Hydraulic
Hydraulic Capacity 250 Gallons
Hydraulic System High-pressure piston pumps, driven by a multi-pump transmission, provide independent closed-loop hydraulic power for the hoisting drums, boom hoist, swing, left crawler and right crawler. 250 gal hydraulic reservoir is equipped with breather, clean-out access and internal diffuser. Each function is equipped with relief valves to protect the hydraulic circuit from overload or shock. System includes oil cooler and replaceable, full flow return filters. All oil is filtered before entering the hydraulic reservoir.
Operational
Counterweight The Variable Position Counterweight (VPC) system of rotating bed only counterweight maintains optimum crane stability by automatically positioning crane counterweight based on boom angle and length. No carbody counterweight is required. The crane can be equipped with 881,800 lb upperworks only counterweight made up of a single piece counterweight tray and 38 22,000 lb counterweight boxes. Left and right side counterweights are interchangeable and common with MLC300 counterweight.
Drum Basic machine is equipped with two 49 inch wide and 26 inch diameter main hoist drum, mounted in the boom butt and 4 m insert and 32 inch wide and 25 inch diameter whip drum, mounted in the rotating bed. Each drum is driven by a variabledisplacement hydraulic motor through a planetary reduction system. Main hoist drum is grooved for 32 mm rope and whip drum is grooved for 28 mm rope. Powered hoisting/lowering operation is standard with automatic (spring applied, hydraulically released) multi-disc brakes and drum rotation indicators.
Boom
Max Boom Length 479’
Max Jib Length Luffing: 334.6’
Max Capacity 772 USt
Fixed Jib on Main Boom 137.8’
Boom Hoist VPC-MAX is equipped with a 39 inch wide and 22 inch diameter boom hoist drum mounted in the mast butt. The drum is driven by a variable displacement hydraulic motor, through a planetary gearbox with an internal brake. The drum utilizes a ratchet and pawl assembly and is grooved for 28 mm wire rope. Includes 28 mm wire rope for 16-part boom hoist reeving.
Electrical
Electrical System (2) 12V 1,375 CCA batteries; 24V system; 110A alternator
  •  Strongest load charts in its class
  •   Travel, swing and counter rotate with full rated capacity
  •   FACT™ connection technology on boom and crawler connections
  •   Designed to be transported globally by optimizing component weights and dimensions
  •   Improved boom handling lugs (reduced setup time)
  • Self-erect system includes, jacking cylinders with pads, self assembly cylinder and crawler handling chains.
  • Hydraulic Test Kit: required to properly analyze the performance of the CCS.
  • Service Interval Kits for the regularly scheduled maintenance of general crane operations.
  • Special paint color(s) other than Manitowoc standard red and black.
  • Custom vinyl decal(s) of customer name and/or logo from artwork supplied by customer.
  • 24.5 USt swivel hook and weight ball.
  • Carbody jacking cylinders to allow 360° swing with crawler assembly during self erect.
