New Kleemann MCO 110i PRO Mobicone Crusher for Sale
The mobile cone crushers MOBICONE are used in medium-hard to hard and abrasive natural rock, as well as for raw materials processing in mining applications. The cone crushers deliver excellent cubic final grains in the secondary and tertiary crushing stages. The MOBICONE plants are available in different sizes and versions and for different applications. The cone crusher is suitable mainly in the linking with primary crushers and screening plants.

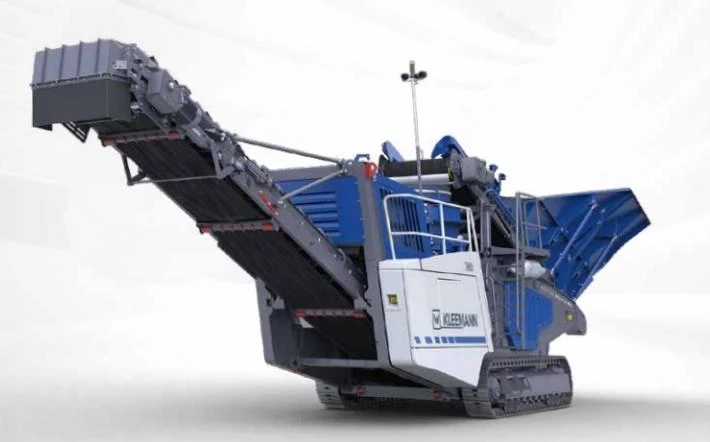

The MOBICONE MCO 110i PRO mobile cone crusher stands out thanks to its extremely robust design and impressive performance. As an option, the plant can be operated via an external power source and impresses with its low-maintenance operation.
The MOBICONE MCO 110 PRO is distinguished by its extremely robust design and very high efficiency. As an option, the plant can be operated via an external power source and impresses with its low-maintenance operation.
Feeding Unit
- Hopper made from wear-resistant steel, filling aid for rear loading by wheel loader
- Support beam to protect the belt and for optimal material guidance during the material feed; robust feeding area with buffered rollers
- Magnetic remover and metal detector in logical sequence for optimal operating reliability
CFS
- Continuous crusher loading thanks to Continuous Feed System (CFS):
- The control is effected by monitoring
- the crusher level
- power consumption at the crusher
- speed of the crusher drive
- stockpile probe at the crusher discharge conveyor (optional)
- Depending on the crusher level, the infinitely variable, frequency-controlled adaptation of the conveying capacity of the feeding conveyor is effected
- Result: Optimal crusher level at all times for maximum performance and excellent final product quality
- Simple slide mechanism enables the adaptation of the material discharge pattern to the crusher for optimal filling
Crusher Unit
- Cone crusher with large stroke for maximum crushing capacity
- Stable crusher design and high crusher drive power
- Large flow area, 3-arm crusher design (integrated drive shaft) for increased throughput
- Reliable overload system for protection in the case of material that cannot be crushed („Tramp Release System“)
- Simple tool change without sealing compound
Gap Setting
- Fully automatic gap setting during operation
- Fully automatic zero point detection
- Can be operated safely and comfortably from the ground, simple and intuitive adjustment via touch panel, no setup times
Drive Unit
- Innovative layout of drive unit:
- Lower level: Diesel engine with generator, lubricating oil supply of crusher, good service accessibility to all key components, can be easily refilled from the ground
- Upper level: Crusher drive, external power supply (optional), drive with cooling
- Good weight distribution
- Efficient and powerful diesel-electric drive for low consumption
- External power supply (optional) for even more efficient use in quarries
- High-performance electric drives of belts; low-consumption, reduced risk of hydraulic leaks
Control System
- Simple and intuitive control concept SPECTIVE
- 12“ touch panel with menu-guided operation and visualization
- Door-in-door system with separate flap in control cabinet – plant can be controlled through small flap
- All components and functions can be controlled; status display of all components such as speed, temperature, pressure, etc.; quick fault detection, display in plain text format
- Perfect protection of control elements by dust-proof and vibration-proof control cabinet
- Radio remote control for operating all key components
- Optional camera system for monitoring crusher and hopper, remote monitor in excavator (optional)
Crusher Discharge Conveyor
- Wide and robust crusher discharge conveyor
- Extended crusher discharge conveyor for higher discharge height available as option; hydraulically foldable for transportation
- Function-monitored crusher discharge conveyor; when at a standstill the material feeding is switched off
- Optional extended belt cover to reduce dust, available for both belts
- External oversize grain returning from downstream mobile screening plant optional, can be mounted on both sides
- Optional stockpile probe
Transport
- Simple transport preparation with hydraulic functions:
- Extended discharge conveyor (incl. cover)
- Filling aids
- Moving the feeding unit
- Extended crusher discharge conveyor can be folded in hydraulically for transportation
- Transport in one unit (except optional return conveyor) on flat-bed truck possible
- Simple slide mechanism of feeding unit for quick setup, no need to dismantle parts for transportation
Safety and Ergonomics
- Fast and convenient service possible thanks to access to all components
- All hydraulic cylinders are equipped with safety valves (lowering/brake holding valves), every cylinder remains in its current position in the event of a shutdown or malfunction
- Simple refuelling from the ground
- Water spray system and LED lighting included in basic plant; advanced lighting optional
- Electric oil level check for diesel engine, can be easily read on display
