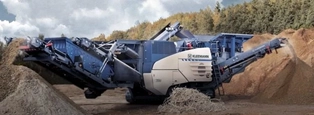

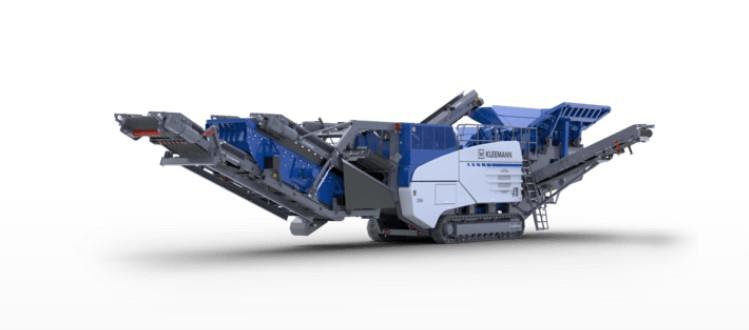

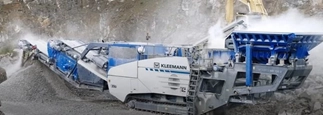

New Kleemann MR 130i EVO2 Mobile Impact Crusher for Sale

The mobile impact crushers MOBIREX are used in soft to medium-hard natural rock and in recycling. The capacity of the plants is enormous - and the focus is not only on pure volume reduction. Cost and environmental awareness, availability, versatility and, above all, the quality of the final product are important aspects. With the MOBIREX plants stone is crushed so that the grain shape, grain size distribution, and cleanliness meet the high requirements of the standards for concrete and asphalt aggregates.

The mobile impact crusher MOBIREX MR 130i EVO2 can be deployed universally as an all-rounder and produces first-class final grain quality. With a crusher inlet width of 1300 mm, it achieves a production rate that until now was only associated with considerably larger crushing plants. This is made possible by outstanding cost effectiveness and performance with a variety of technical highlights. Thanks to its compact design, the plant is easy to transport and can be assembled and disassembled quickly.



Highlights

  • Optimized Material Flow
    • Each sectional component is wider than the last to allow material an unrestricted flow
    • No narrowing of the material flow
    • Higher performance with less fuel consumption
    • Improved life time due to reduced wear
    • No more material bridging
  • Feeding Unit
    • Hydraulically operated hopper folding and locking system, for shortest set-up times and operation safety
    • Can be operated from the ground
    • Additionally secured with mechanical locking elements (also for hopper extension)
    • High wear-resistance due to side walls made of wear resistant steel
    • Optional hopper extension
  • Primary Screening
    • Independent vibrating double-deck pre screen ensures effective screening of fines for optimal final grain quality
    • Reduction of wear in the crusher area by diverting the medium grain directly to the discharge chute
    • Simple and safe replacement of screen mesh in upper and lower deck
    • Reduction of bridging due to levelling of the feed material before the crusher
    • Side discharge conveyor can be fitted either on the left or right
    • Comfortable discharge height of side discharge conveyor avoids damage by wheel loader
  • Continuous Feed System (CFS)
    • Continuous crusher feed through the intelligent feed control CFS:
      • Sensors measure the load on toggle and rotor
      • Depending on the load, feeding chute and pre-screening frequencies are adapted automatically
      • When the load in the crushing chamber is  rebalanced, feeding continues without delay
    • The plant is quickly back at full performance
    • Less load on the downstream components reduces wear
    • Percentage of oversize grain is minimised
  • Crusher Unit
    • Optimized inlet geometry for improved entry of the material, thus increased throughput
    • Reduced bridging in the crusher inlet by means of a hydraulic raising crusher inlet cover and upper impact toggle (controlled by radio remote control)
    • Increased product quality due to C-shape rotor ledges for better impact effects over a longer period
    • Fully hydraulic crusher gap adjustment via touch panel - also possible when rotor is running
    • Effective overload protection with automated reset of gap setting of the impact toggles by sensor controlled hydraulic cylinder
  • Safety System
    • Lock & Turn system for the safe and comfortable operation of the plant when changing rotor ledges, as well as when eliminating material clogging
    • The key transfer safety system permits working only at certain areas of the crusher, while other areas are blocked
    • Connectible lock & turn device: Turn and block the rotor manually from the outside – with maximum safety
    • Innovative rotor ledge clamping system enables simple and quick rotor ledge change
  • Drive
    • Extremely efficient and high-performance diesel direct drive for lowest fuel consumption per ton end product
    • Electric drives of chutes, screens and conveyors –low consumption, no risk of hydraulic leaks
    • High operational reliability thanks to fluid coupling
    • Excellent service accessibility to all key components
  • Control System
    • Simple operation via touch panel with menu-guided user interface SPECTIVE
    • All components and functions can be controlled from the ground
    • Status display of all components such as speed, temperature, pressure etc.
    • Fast error-tracking, display in full text format
    • Protection of control unit by anti-vibration control cabinet with dust protection
    • Additional flap in control cabinet provides easy access to control panel
    • Radio remote control for controlling all key components such as vibrating conveyor, pre screen, crusher inlet cover, impact toggle, return conveyor and magnet
  • Final Screening Unit and Magnetic Separator
    • Final screening unit (optional):
      • Single-deck vibrating screen with extra large screening surface for effective screening, also for gradations smaller than 30 mm
      • Return conveyor can be swivelled out up to 100° for side discharge
      • Hopper integrated slide for oversize grain allows for high operational safety even with inhomogeneous material
    • Magnetic separator (optional):
      • High-performance permanent or electro (option) magnet for maximum output
      • Raise and lower the magnet parallel to the main conveyor; operation via remote control
  • Transportability
    • Increased ground clearance below final screening unit and thus better transportability with different low-bed loaders
    • Simple dismounting of the final screening unit and simplified transport thanks to compact container dimensions
    • Final screening unit located on skids for fast loading by hook-lift system
    • Transport-friendly weight
Crusher
Crusher Weight 650 lbs.
Crusher Capacity 416 HP
Crushing capacity for demolished concrete up to approx.: 331 US t/hr
Crushing capacity for mixed rubble up to approx.: 331 US t/hr
Crushing capacity for demolished asphalt up to approx.: 287 US t/hr
Crushing capacity for limestone up to approx.: 375 US t/hr
Crusher Inlet Width 52”
Crusher Discharge Height 11’12”
Crusher Discharge Width 55”
Crusher Discharge Length 31’10”
37’1” (extended)
Crusher Drive Type Direct
Dimensions
Transport Length 60’4”
70’11” (w/secondary screening unit approx.)
Transport Height 12’4”
Transport Width 9’10”
10’4” (w/secondary screening unit max.)
Transport Weight 108,600 lbs. (basic plant)
142,198 lbs. (max. configuration approx.)
14,330 lbs. (screening unit approx.)
Engine
Gross Horsepower 493 HP
Generator 135 kVA
Operational
Drive Diesel-direct
Crusher Inlet Size 52” x 36”
Feed Height 14’3”
15’5” (w/extension)
Feed Size Max 41” x 26” x 15”
Hopper Width 7’5”
9’10” (w/extension)
Hopper Length 12’2”
Discharge Height 9'6" (side conveyor)
11'12" (extended) (side conveyor)
Hopper Volume 6.5 yd³
11.8 yd³ (w/extension)
Screen Type Double-deck prescreen
Screen Width 48”
Screen Length 7’7”
Vibrating Feeder 39" x 8'7"
Discharge Width 26" (side conveyor)
Discharge Length 13'1" (side conveyor)
19'8" (extended) (side conveyor)
Vibrating Extractor Size 55" x 8'10" (width x length)
Rotor Diameter 47"
  • Drive concept: Diesel-direct
  • Feed capacity: 496 US t/hr
  • Crusher inlet (W x D): 52” x 36”
  • Feed Size max: 44” x 28”
  • Transport Height: 12’4”
  • Transport Length: 60’4”
  • Transport Width: 9’10”
  • Transport Weight: 132,275 lbs.
  • Optimized material flow due to opening system widths
  • Hydraulic gap setting
  • Simple and intuitive SPECTIVE control concept
  • Efficient and powerful diesel direct drive
  • High-performance post screening unit with oversize grain returning (option)
  • SPECTIVE CONNECT displays all important machine information directly on the smartphone
  • Hopper extension: hydraulically folding
  • Side discharge conveyor 4 m, rigid: can be fitted on the left or right, must be disassembled for transport, incl. spray system
  • Extended side discharge conveyor 6 m, rigid: can be fitted on the left or right, must be disassembled for transport, incl. spray system
  • Side discharge conveyor belt cover (canvas, metal) in conjunction with rigid side discharge conveyor
  • Side discharge conveyor, hydraulically folding, can be mounted on both sides, remains on machine during transport, incl. spray system
  • Quick Track for selecting machine operating mode quickly and easily, operation via radio remote control
  • Climate control packages: hot climate or cold climate package
  • Power pack enclosure for insulation of noise sources and minimisation of dust development
  • Raised engine air intake for lower dust load
  • Electromagnetic separator, permanent magnetic separator, magnet preparation
  • Frequency converter for adaptation of the post screening unit‘s frequency, independently of the speed of the diesel generator
  • Hook-lift system for simple transport of the post screening unit
  • Single-deck post screening unit as single deck vibrating screen for classification of a final grain size, available with 500 or 650 mm wide return conveyor (double-deck post screening unit upon request)
  • Belt scale, available for crusher discharge conveyor and fine grain conveyor (post screening unit)
  • Wind sifter for cleaning oversize grain to remove foreign matter and lightweight materials by an 11 kW blower with air outlet under the transfer conveyor, only available in conjunction with the post screening unit option
  • Sockets for supplying electrical users: 16 A: 230 V / 400 V; 32 A: 400 V
  • Water pump with pressure monitoring
  • Line coupling for linking with other KLEEMANN plants
  • Track pads for crawler chassis for protection of the ground
  • Premium lighting for expanded illumination of work areas
