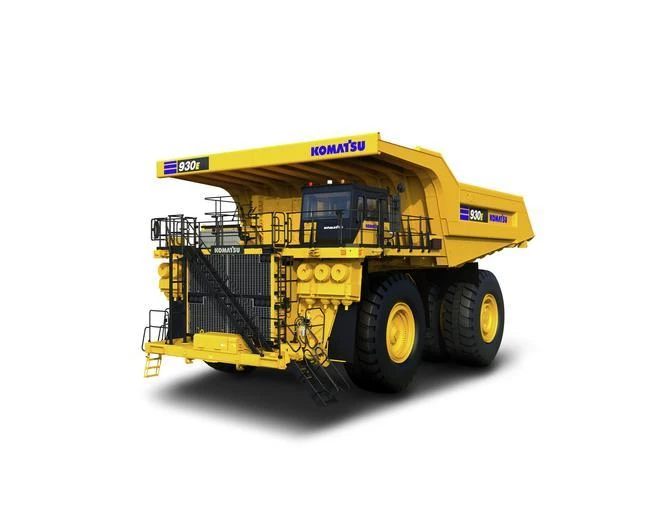

New Komatsu 930E-5SE Electric Dump Truck for Sale Built for performance, operability, and sustainability From its high-horsepower diesel engine and electric-drive powertrain to the ergonomically designed operator cab, the 930E-5SE has been engineered to promote increased productivity, an upgraded driving experience and a reduced carbon footprint.
Features and Benefits
|
Specs | |
---|---|
Component | Above deck, easily accessible with diagnostic test connections (Brake Component Cabinet) |
Body | |
---|---|
Cab | Advanced operator environment with integral 4-post ROPS/FOPS level 2 structure (ISO 3449), adjustable air suspension seat with lumbar support and arm rests, full-size passenger seat, maximum R-value insulation, tilt and telescoping steering column, electric windshield wipers with washer, tinted safety glass, power windows, payload meter IV, 55,000 Btu/hr heater and defroster, 21,600 Btu/hr air conditioning (HFC–134A refrigerant). |
Frame Type | Advanced technology, full butt-welded box sectional ladder-type frame with integral ROPS supports, integral front bumper, rear tubular cross members, steel castings at all critical stress transition zones, rugged continuous horsecollar. |
Material | Plate: 70,000 PSI tensile strength steel Casting: 90,000 PSI tensile strength steel |
Material Thickness | 1.77” (top and bottom plate thickness) 0.98” rear/1.26” front (side plate) |
Rail Width | 12” |
Rail Depth | 34” |
Drive Axle | Mounting: Pin and spherical bushing Alignment: Swing link between frame and axle |
Sheet | Floor: 0.63” outer/0.75” center 200,000 PSI tensile strength steel Front: 0.39” outer/0.47” center 200,000 PSI tensile strength steel Side: 0.39” 1379 MPa 200,000 PSI tensile strength steel Canopy: 0.24” 690 MPa 200,000 PSI tensile strength steel |
Body Type | All-welded steel flat floor body with horizontal bolsters and full canopy. Rubber mounts on frame, eyebrow and body up sling are standard. Extended canopy and pivot exhaust heating are optional. |
Dimensions | |
---|---|
Weight | 1,150,000 lbs. |
Payload | 320 sT |
Weight on Tires | 57,000 lbs. |
Ratio | 32.62:1 |
Circle Diameter | 105’ (turning) |
Engine/Drivetrain | |
---|---|
Engine Make | Komatsu |
Engine Model | SSDA18V170 |
Engine Type | Diesel |
Horsepower | 3500 HP |
Fuel Tank Capacity | 1200 Gallons (Tier IV) 1400 Gallons (non-emissionized) |
Speed | 40 MPH |
Filtration System | In-line replacement elementsvvvv |
Front Stroke | 12.92" |
Rear Stroke | 9.40" |
Operational | |
---|---|
Pump | Two pumps, single package, in-line |
Hydraulic Reservoir | 250 US Gallons |
Brakes | Service: Oil-cooled, hydraulic actuated, multiple disc brakes at each wheel Total friction area per brake: 15,038 in² Secondary Brake System: Complies w/ ISO-3450 standards Wheel Brake Lock: switch-activated Parking Brakes: Multiple disc, spring-applied, hydraulically released, dry brakes on inboard end of each wheel motor rotor shaft. Rated to hold on ±15% grade at maximum gross vehicle weight |
Suspension | Variable rate hydropneumatics with integral rebound control |
Tires | 53/80 R63 (rock service, tubeless, radial tires) |
Steering | Accumulator assisted with twin double acting cylinders provide constant rate steering; secondary steering automatically supplied by accumulator |
Suction | Single, full flow, 100 mesh |
Wheels | GDY106-C |
Hoist | Dual, in-line, high pressure (Hoist & Steering) Two 3-stage dual-acting outboard cylinders, internal cushion valve, over-center dampening |
Hydraulic System Capacity | 350 Gallons |
Oscillation | ±6.5° (max. rear axle) |
Traction System | Wheel spin-slide control |
Operating Cycle | 4 cycle |
Hoist Time | 21 seconds |
Service Apply Pressure | 2500 PSI |
Auto Apply System | Automatically applied prior to hydraulic system pressure dropping below level required secondary stopping requirements |
Electrical | |
---|---|
Impeller | 127.4 m3/min (4,500 cfm) (Single impeller in-line blower) |
Lighting | 24 V |
Alternator | GTA-62 24 V, 275 A |
Drive Control | AC torque control system |
Note: Optional equipment may change operating weight.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
Main Technical Specifications | |
---|---|
MAKE | Komatsu |
MODEL | 930E-5SE |
