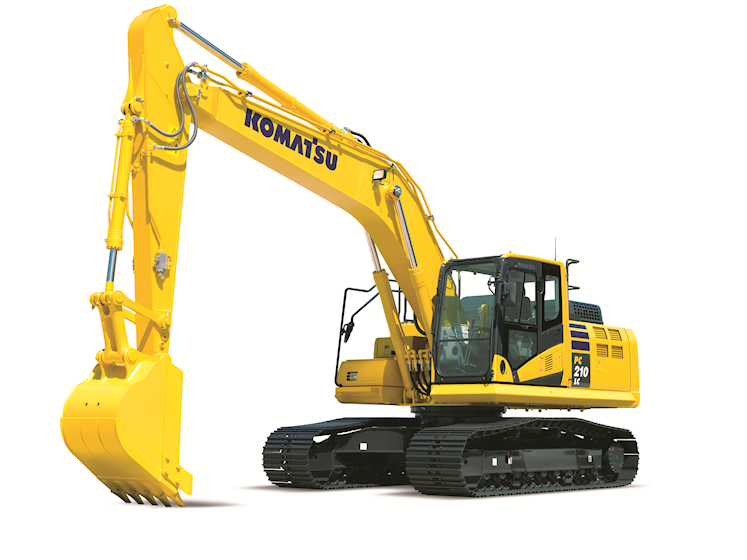

New Komatsu PC210LC-11 Excavator for Sale Performance & Fuel Economy New engine with up to 4% more horsepower and up to 6% better fuel consumption than the PC210LC-10.
|
| Body | |
|---|---|
| Frame | Center: X-Frame Track: Box-section |
| Steering | Two levers with pedals |
| Dimensions | |
|---|---|
| Length | 31 ft. 10 in. (9,705 mm) |
| Width | 10 ft. 1 in. (3,080 mm) |
| Height | 10 ft. (3,045 mm) top of cab 10 ft. 3 in. (3,135 mm) top of handrail |
| Weight | 51,397 - 53,882 lbs. (24,160 - 24,440 kg) operating 55,029-55,646 lbs. (Super Long Front Operating) |
| Ground Clearance | 3 ft. 7 in. ( 1,085 mm) counterweight 1 ft. 5 in. (440 mm) minimum |
| Fuel Tank Capacity | 105.7 gal. (400 l) |
| Engine | |
|---|---|
| Engine Make | Komatsu |
| Engine Model | SAA6D107E-3 |
| Engine Type | Water-cooled, 4-cycle, direct injection |
| Cylinders | 6 |
| Horsepower | 165 @ 2000 rpm |
| Net Horsepower | 164.6 hp (122.8 kW) @ 2,000 rpm |
| Cooling | Water-cooled |
| Bore x Stroke | 4.21 x 4.88 in. (107 x 124 mm) |
| Displacement | 408 cu. in. (6.69 l) |
| Fuel Type | Diesel |
| Rated Speed | 3.4 mph (5.5 km/h) high 2.5 mph (4.1 km/h) mid 1.9 mph (3 km/h) low |
| Governor | All-speed control, electronic |
| Rated RPM | 2000 |
| Aspiration | Komatsu Variable Geometry Turbocharged, aftercooled, cooled EGR |
| Piston Displacement | 408 in³ |
| DEF Tank Capacity | 6.1U.S. gal |
| Drivetrain | |
|---|---|
| Number of Speeds | 3 |
| Track Width | 28 in. (700 mm) shoes |
| Brakes | Service brake: Hydraulic lock Parking brake: Mechanical disc brake |
| Gradeability | 70%, 35° |
| Track Length | 14 ft. 7 in. (4,450 mm) 12’ (on ground) |
| Drawbar Pull | 45,349 lbf |
| Track Type | Sealed track |
| Track Rollers | 9 each side |
| Ground Pressure | 5.9-6.7 PSI |
| Carrier Rollers | 2 each side |
| Track Adjuster | Hydraulic |
| Hydraulic | |
|---|---|
| Pump | Variable displacement piston type 5 Pumps: Boom, arm, bucket swing, travel circuits |
| Std Pump Flow | 125.5 gpm (475 lpm) |
| Hydraulic Tank Capacity | 34.9 gal. (132 l) |
| Hydraulic Cylinders | 2 - 5.1 x 52.5 x 3.5 in. (130 x 1,333 x 89 mm) boom 1 - 5.3 x 58.7 x 3.7 in. (135 x 1,491 x 94 mm) arm 1 - 4.5 x 44.1 x 3.2 in. (114 x 1,120 x 81 mm) bucket |
| Relief Valve Setting | Implement circuits: 5,400 psi Travel circuit: 5,400 psi Swing circuits: 4,190 psi Pilot circuit: 470 psi |
| Hydraulic Working Modes | 6 |
| Hydraulic Motors | Travel: 2 x axial piston motor with parking brake Swing: 1 x axial piston motor with swing holding brake |
| Hydraulics | HydrauMind (Hydraulic Mechanical Intelligence) system, closed-center system with load sensing valve and pressure compensated valve |
| Operational | |
|---|---|
| Dig Depth | 21 ft. 9 in. (6,620 mm) |
| Dig Height | 32 ft. 9 in. (10,000 mm) |
| Arm Length | 9 ft. 7 in. (2,925 mm) |
| Bucket Reach | 32 ft. 5 in. (9,875 mm) digging |
| Bucket Digging Force | 29,762 lbs. (13,500 kg) |
| Dump Height | 23’4” |
| Bucket Capacity | 0.66 – 1.57 yd³ 0.6 yd³ (Super Long Front) |
| Boom Length | 18 ft. 8 in. (5,691 mm) |
| Tail Swing Radius | 9 ft. 11 in. (2,947 mm) |
| Swing Torque | 49,907 ft lbs |
| Swing Speed | 12.4 rpm |
| Shoes | 49 each side |
| Track Gauge | 7’10” |
| Swing Reduction | Planetary gear |
| Swing Circle Lubrication | Grease-bathed |
| Swing Lock | Mechanical disc brake |
| Drive Method | Hydrostatic |
| Digging Reach | 32’5” 31’10” (at ground level) |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Komatsu |
| MODEL | PC210LC-11 |
