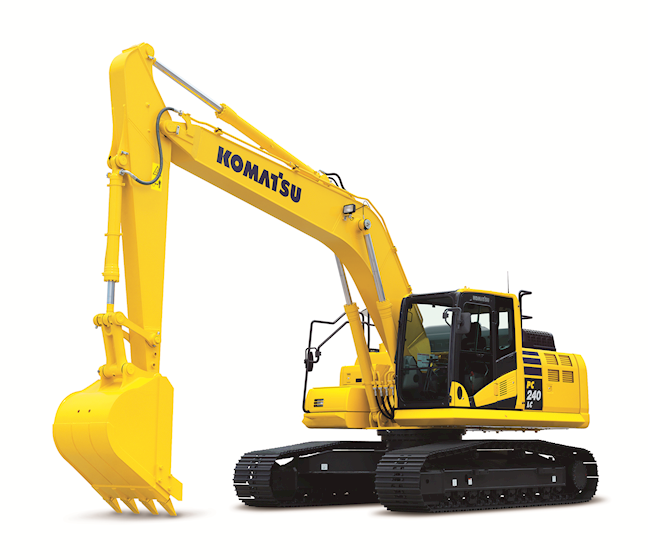

New Komatsu PC240LC-11 Excavator for Sale Komatsu's Closed Center Load Sensing (CLSS) with hydraulic system provides quick response and smooth operation to maximize productivity. Enhanced controller logic and new Tier 4 Final engine technology improve performance and fuel efficiency.
|
| Body | |
|---|---|
| Frame | Center Frame; X-frame Track frame; Box-section |
| Steering | Two levers with pedals |
| Dimensions | |
|---|---|
| Length | 32 ft. 8 in. - 32 ft. 9 in. (9,965 - 9,990 mm) |
| Width | 10 ft. 9 in. (3,280 mm) |
| Height | 10’-10’9” |
| Weight | 55,763 - 56,360 lbs. (25,294 - 25,574 kg) operating 58,618-59,235 lbs. (Super Long Front Operating) |
| Ground Clearance | 3 ft. 7 in. (1,100 mm) counterweight 1 ft. 5 in. (440 mm) minimum |
| Fuel Tank Capacity | 105.7 gal. (400 l) |
| Transport Length | 16’3”-17’8” |
| Engine | |
|---|---|
| Engine Make | Komatsu |
| Engine Model | SAA6D107E-3 |
| Engine Type | Water-cooled, 4-cycle, direct injection |
| Cylinders | 6 |
| Horsepower | 189 hp (141 kW) @ 2,000 rpm |
| Net Horsepower | 177 hp (132 kW) @ 2,000 rpm |
| Cooling | Water-cooled |
| Bore x Stroke | 4.21 x 4.88 in. (107 x 124 mm) |
| Displacement | 408 cu. in. (6.69 l) |
| Fuel Type | Diesel |
| Rated Speed | 3.4 mph (5.5 km/h) high 2.5 mph (4.1 km/h) mid 1.9 mph (3.0 km/h) low |
| Governor | All-speed control, electronic |
| Rated RPM | 2000 RPM |
| Aspiration | Turbocharged, aftercooled, cooled EGR |
| Piston Displacement | 408 in³ |
| DEF Tank Capacity | 10.4 U.S. gal |
| Drivetrain | |
|---|---|
| Number of Speeds | 3 |
| Track Width | 2 ft. 4 in. (700 mm) shoes |
| Brakes | Service: Hydraulic lock Parking: Mechanical disc brake |
| Gradeability | 70%, 35° |
| Track Length | 15 ft. 3 in. (4,648 mm) 12’7” (on ground) |
| Drawbar Pull | 45,349 lb |
| Track Type | Sealed track |
| Track Rollers | 10 each side |
| Ground Pressure | 5.91-6.68 PSI |
| Carrier Rollers | 2 each side |
| Track Adjuster | Track adjuster |
| Hydraulic | |
|---|---|
| Pump | Variable displacement piston type 5 Pumps: Boom, arm, bucket, swing, travel circuits |
| Std Pump Flow | 125.5 gpm (475 lpm) |
| Control Valve | Self-reducing valve |
| Hydraulic Tank Capacity | 34.9 gal. (132 l) |
| Hydraulic Cylinders | 2 - 5.3 x 52.6 x 3.5 in. (135 x 1,335 x 90 mm) boom 1 - 5.5 x 64.4 x 3.9 in. (140 x 1,635 x 100 mm) arm 1 - 5.1 x 40.2 x 3.5 in. (130 x 1,020 x 90 mm) bucket |
| Relief Valve Setting | Implement circuits: 5,400 psi Travel circuit: 5,400 psi Swing circuits: 4,190 psi Pilot circuit: 470 psi |
| Hydraulic Working Modes | 6 |
| Hydraulic Motors | Travel: 2 x axial piston motor with parking brake Swing: 1 x axial piston motor with swing holding brake |
| Operational | |
|---|---|
| Bucket Width | 24 - 48 in. (610 - 1,219 mm) |
| Dig Depth | 22'8" ft. 8 in. - 24 ft. (6,910 - 7,315 mm) |
| Dig Height | 32 ft. 10 in. - 33 ft. 10 in. (10,010 - 10,310 mm) |
| Arm Length | 10 ft. - 11 ft. 6 in. (3,048 - 3,505 mm) |
| Bucket Reach | 33 ft. 5 in. - 34 ft. 9 in. (10,190 - 10,580 mm) digging |
| Bucket Digging Force | 34,171 lbs. (15,500 kg) SAE 38,667 lbs. (17,500 kg) ISO |
| Dump Height | 23 ft. 1 in. - 24 ft. 2 in. (7,035 - 7,367 mm) |
| Bucket Capacity | 0.76-1.85 yd³ 0.75 yd³ w/Super Long Front |
| Boom Length | 19 ft. 2 in. (5,843 mm) |
| Tail Swing Radius | 9’11” |
| Swing Torque | 58,334 ft lbs |
| Swing Speed | 11.7 rpm |
| Shoes | 51 each side |
| Track Gauge | 8’6” |
| Swing Reduction | Planetary gear |
| Swing Circle Lubrication | Grease-bathed |
| Swing Lock | Mechanical disc brake |
| Drive Method | Fully hydrostatic |
| Hydraulic Type | HydrauMind (Hydraulic Mechanical Intelligence) system, closed-center system with load sensing valve and pressure compensated valve |
| Digging Reach | 33’5”-34’9” 32’10”-34’2” (at ground level) |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Komatsu |
| MODEL | PC240LC-11 |
