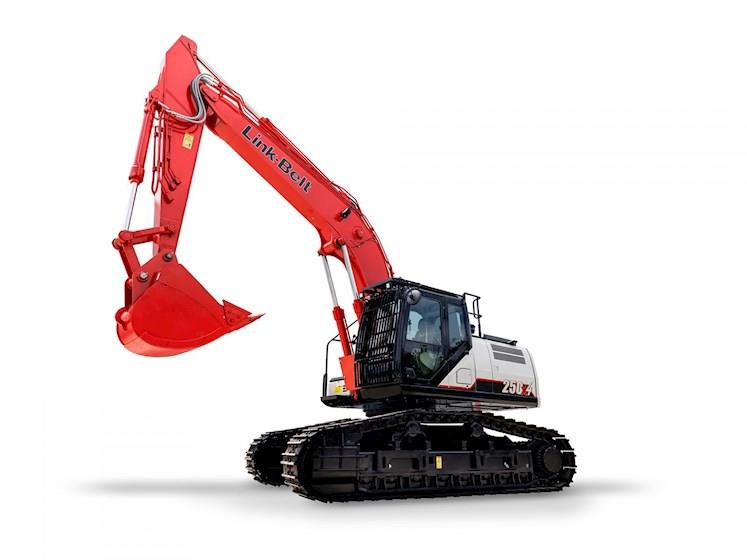

New Link-Belt 250 X4 Heavy Duty Excavator for Sale Link-Belt X4 Heavy Duty excavators are purpose-built and approved for tough applications like demolition, land clearing, heavy-duty excavating, and pipeline work. The Link-Belt 250 X4 Heavy Duty excavator is factory equipped with a high-wide and heavy-duty undercarriage with larger components for added durability, strength, and performance. Compared to our standard excavators, these models have an 11-17% wider stance and 40-50% higher ground clearance giving them excellent stability and increased lift capacities to handle the rugged work they were designed for. |
| Body | |
|---|---|
| Cab | ROPS and FOPS Level 1 certified with automatic climate control A/C and heat with defroster, 7″ LCD Hi-Definition color monitor with full time rear view camera display, fuel efficiency gauge, low-effort joysticks, dual halogen cab lights, dual cab lights, control pattern changer, safety glass windows, sunroof with sunshade, shockless cab suspension with four fluid cab mounts, SCM High-Back reclining, tilting, air-suspension seat with heat, sliding 4-position tilting control consoles, Bluetooth technology, AM/FM sound system with USB and MP3 auxiliary input jack, digital clock, dome light, seat belt, coat hook, cup holder, storage compartments, floor mat, footrests, ashtray, 24V cigarette lighter, 12V outlet, travel alarm, handrails, mirrors, side-entry cab filter, spare parts kit. |
| Undercarriage | Retractable carbody with 16′ 0″ (4.87 m) undercarriage by 9′ 6″ (2.89 m) track gauge, Sealed and strutted track chain with double track guide, Sealed rollers and idlers, Two-speed independent hydrostatic travel with compact planetary final drive, Disc type brakes, Adjustable track tension, Carbody belly pan, full-length track guards. |
| Dimensions | |
|---|---|
| Length | 32’3” |
| Width | 9’3” |
| Height | 11’5” |
| Weight | 68,400 lbs. |
| Ground Clearance | 2’1” |
| Fuel Tank Capacity | 108 Gallons |
| Working Height | 38’1” |
| Maximum Reach Ground | 33’ |
| Engine | |
|---|---|
| Engine Make | Isuzu |
| Engine Model | AQ-4HK1X |
| Engine Type | Final Tier 4 turbocharged diesel engine |
| Cylinders | 4 |
| Horsepower | 177 HP |
| Cooling | Water-cooled |
| Displacement | 317 cu in |
| Torque | 458 lbf-ft (621 Nm) @ 1,800 rpm |
| DEF Tank Capacity | 31.7 Gallons |
| Drivetrain | |
|---|---|
| Starter | 24V-5.0kW |
| Gradeability | 70% (35°) |
| Drawbar Pull | 58,900 lbf. |
| Alternator | 85 amp |
| Track Rollers | 8 per side |
| Ground Pressure | 7.4 PSI |
| Carrier Rollers | 2 per side |
| Hydraulic | |
|---|---|
| Pump | 2 x 61.8 GPM (output) |
| Std Pump Flow | Pilot Pump Max Flow: 5.3 GPM Rotate Pump (gear) Max Flow: 16.4 GPM |
| Hydraulic Tank Capacity | 39 Gallons |
| Hydraulic System | Open-center system, two variable-displacement electronically controlled axial-piston pumps and one gear pump for pilot controls, main control valve with one 4-spool section and one 5-spool section with auxiliary spool: stackable, one gear pump for rotate, one spool valve for rotate, Auxiliary Control System, oil cooler, Auto-Power boost, anti-drift valves, 6 micron return f lter, firewall, hydraulic oil sample port. Combination multifunction hydraulics w/ proportional controls and in-cab pressure setting control |
| Hydraulic Cylinders | Number of Cylinders – bore x rod x stroke: Boom: 2-5.1” x 3.5” x 52.6” Arm: 1-5.7” x 4.1” x 65.4” Bucket: 5.1” x 3.5” x 42.1” |
| Relief Valve Setting | Boom/Arm/Bucket: 4,970 PSI In Power Boost: 5,410 PSI Swing Circuit: 4,190 PSI Travel Circuit: 4,970 PSI |
| Hydraulic Working Modes | Three selectable work modes, RemoteCARE Telematics GPS system, anti-theft password protection system, onboard self-diagnostic system with memory and service interval reminders, auto idling system, one-touch decelerator, auto-idle engine shutdown, auto-power boost, neutral safety start, gate-lock safety shutoff. |
| Operational | |
|---|---|
| Dig Depth | 17’3” |
| Dig Height | 38’1” |
| Bucket Digging Force | 39,570 lbf. |
| Dump Height | 27’9” |
| Bucket Capacity | 0.79-2.43 yd³ |
| Travel Speed - Forward | 1.6-2.7 MPH |
| Maximum Reach | 33’10” |
| Max. Arm Digging Force | 29,230 lbf |
| Swing Torque | 55,300 lbf-ft |
| Swing Speed | 10.6 RPM |
| Track Link Pitch | 8.5” |
| Shoes | 47 per side |
| Shoe Width | 27.5” |
| Tail Swing | 9’8” |
| Bucket Rotation | 175° |
| Swing System | Planetary reduction powered by axial-piston motor, Internal ring gear with grease cavity for swing pinion, Swing bearing is single-row, shear type ball bearing, Mechanical disc swing brake, Auto-power swing. |
| Battery | |
|---|---|
| Battery | (2) 12-volt 92 amp hours |
CAB
ENGINE
HYDRAULICS
UNDERCARRIAGE
UPPERSTRUCTURE
ATTACHMENT
PARTS KIT
CAB
ENGINE
ATTACHMENT
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Link-Belt |
| MODEL | 250 X4 Heavy Duty |
