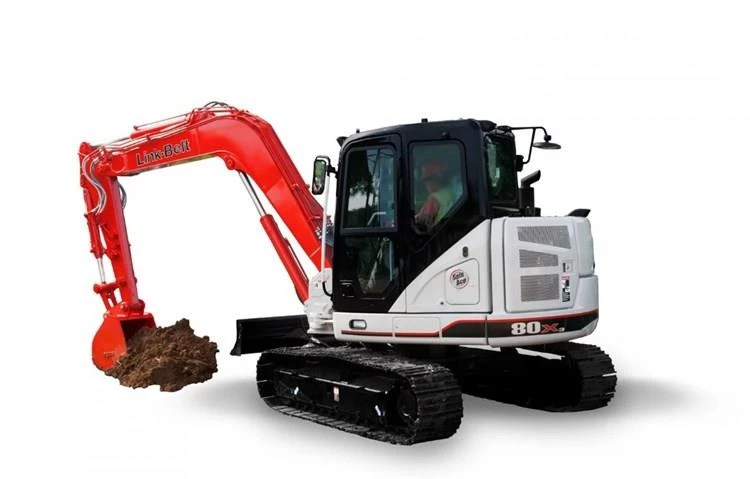

New Link-Belt 80 X3 SA Excavator for Sale Spin Ace Minimum Swing Radius Excavators get you in and out of tight work spaces easily. Spin Ace® excavators are packed with all the power, productivity, and fuel-efficiency you’ve come to expect from us…along with a minimum swing radius design for better maneuverability at sites where work space is at a premium. Thoughtful redesign of counterweights and boom placement makes them ideal for urban construction sites, traffic-restricted road maintenance, utility work or other jobs with limited maneuvering space. Built with simplicity in mind, these excavators are no-nonsense workhorses powered by dependable Isuzu engines. Spin-Ace cabs feature wide, low-noise interior space, excellent all-around visibility and comfortable operator's seats. |
| Body | |
|---|---|
| Cab | ROPS certified cab with climate control A/C and heat with defroster, Control panel with LCD Hi-Definition color monitor, Rearview camera display, Fuel-efficiency gauge, Low-effort joysticks pre-wired for auxiliary hydraulics, Control pattern changer, Safety glass windows, Sunroof with sunshade, Shockless cab suspension with four fluid mountings, SCM reclining suspension seat, AM/FM sound system with MP3 auxiliary input jack, Digital clock, Dome light, Seat belt, Coat hook, Cup holder, Storage compartments, Floor mat, Footrests, 12-volt outlet, Travel alarm, Handrails, Mirrors, Cab light, Side-entry cab filter, Spare parts kit. |
| Controls | Three selectable working modes, Anti-theft password protection system, On-board selfdiagnostic system with memory and service interval reminders, Auto-idling system, Onetouch decelerator, Auto-idle engine shutdown, Neutral safety start, Gate-lock safety shutoff. |
| Dimensions | |
|---|---|
| Length | 11’2”-21’11” |
| Width | 7’7” |
| Height | 6’1” |
| Weight | 18,900 lbs. (Swing Boom Excavator) |
| Fuel Tank Capacity | 31.7 Gallons |
| Maximum Reach Ground | 22’9” (5'7" Arm) 24’4” (7'2" Arm) |
| Engine | |
|---|---|
| Engine Make | Isuzu |
| Engine Model | AP-4LE2X |
| Engine Type | Final Tier 4 Turbocharged diesel engine w/electronic control (ECM) and high pressure common-rail fuel injection |
| Cylinders | 4 |
| Net Horsepower | 54 HP |
| Cooling | Water-cooled |
| Displacement | 133 cu in |
| Torque | 142 lbf-ft @ 1800 rpm |
| Drivetrain | |
|---|---|
| Starter | 24V-3.2kW |
| Gradeability | 70% (35°) |
| Drawbar Pull | 13,400 lbf |
| Alternator | 50 amp |
| Track Rollers | 5 per side |
| Ground Pressure | 5.51 psi |
| Carrier Rollers | 1 per side |
| Hydraulic | |
|---|---|
| Pump | Pump Output: 2 x 19.6 GPM Pilot Pump Max. Flow: 4.8 GPM Blade Pump Max. Flow: 9.4 GPM |
| Hydraulic Tank Capacity | 13.5 Gallons |
| Hydraulic System | Open-center system, Two variable-displacement axial-piston pumps and one gear pump for pilot controls, Main control valve with one 4-spool section and one 5-spool section with auxiliary spool, One-spool valve for blade, Auxiliary Control System, Oil cooler, Boom holding valve, 6 micron return filter, Firewall. |
| Hydraulic Cylinders | Number of cylinders-bore x rod x stroke Boom: 1-4.5” x 2.9” x 33.5” Arm: 1-3.9” x 2.5” x 29.7” Boom Swing: 1-3.7” x 2.2” x 26.6” Bucket: 1-3.3’ x 2.2” x 26.2” Blade: 1-4.3” x 2.8” x 7.1” |
| Relief Valve Setting | Boom/Arm/Bucket: 4,260 PSI Swing Circuit: 3,280 PSI Pilot Pump Working Circuit Pressure: 570 PSI Blade Pump Working Circuit Pressure: 3,410 PSI Travel Circuit: 4,260 PSI |
| Operational | |
|---|---|
| Dig Depth | 13’9” (5'7" Arm) 15’4” (7'2" Arm) |
| Dig Height | 21’7” (5'7" Arm) 22’7” (7'2" Arm) |
| Bucket Digging Force | 12,800 lbf |
| Dump Height | 14’10” (5'7" Arm) 15’11” (7'2" Arm) |
| Bucket Capacity | 0.24-0.71 cu yds |
| Travel Speed - Forward | 2.0-3.2 mph |
| Maximum Reach | 23’3” (5'7" Arm) 24’10” (7'2" Arm) |
| Tail Swing Radius | 5’6” |
| Swing | Planetary reduction powered by axial-piston motor, Internal ring gear with grease cavity for swing pinion, Swing bearing is single-row, shear type ball bearing, Mechanical disc swing brake, Auto-power swing. |
| Max. Arm Digging Force | 8,800 lbf |
| Swing Torque | 12,500 lbf-ft |
| Swing Speed | 10.4 rpm |
| Track Link Pitch | 6.06” |
| Shoes | 39 per side |
| Shoe Width | 17.7” |
| Tail Swing | 5’6” |
| Bucket Rotation | 177° |
| Battery | |
|---|---|
| Battery | (2) 12-volt 64 amp hours |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Link-Belt |
| MODEL | 80 X3 SA |
