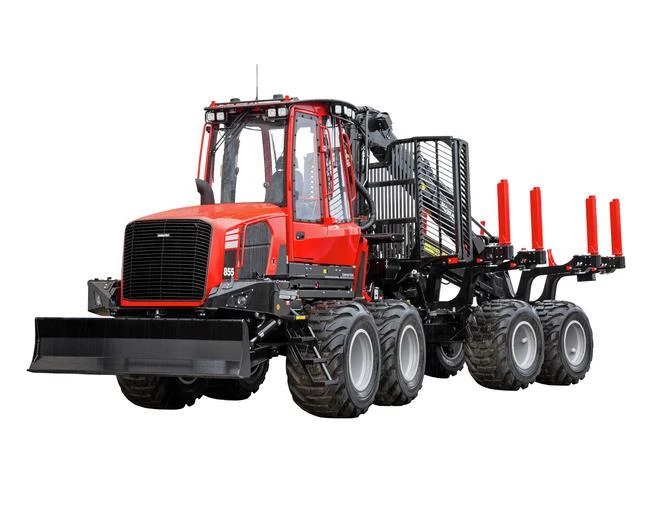

New Komatsu 855-3 Forwarder for Sale Tackle tough forestry jobs with confidence using Komatsu wheeled harvesters, forwarders, log loaders, swing machines, felling heads and harvesting heads. Forestry work is often in the most rugged terrain and brutal conditions — and Komatsu forestry equipment is engineered for the task. Equip your operators to drive productivity day after day in this 14-metric-ton class forwarder that features power, nimbleness and smart features. Hydraulic retarder overspeed protection ensures the driveline won't run too fast, and the flat FlexGate headboard increases load space. The Komatsu 855 makes it easy to deliver. With its power, nimbleness and smart solutions, the Komatsu 855 is a forwarder that offers you longterm productivity in all situations
Features and Benefits
|
Body | |
---|---|
Cab | Several alternative seat options. Ergonomically designed with headrest, armrests, hand controllers and waist safety belt. Depending on seat selection, different options are available for individual adjustment of the seat cushion, backrest and lumbar support. Seat column with 0–180° working range. Windows: Polycarbonate windows throughout. Heating/ventilation: Fully automatic heating and cooling unit, ACC. Filtered intake air Other: Windscreen wipers and washers on windscreen and rear window. Fire extinguisher, 2 kg (standard in EEA countries in compliance with applicable EU Directive). |
Frame Type | Several rear frame options. Frame with smooth V-shaped bottom made of high-strength steel. Sturdy balanced portal bogie. Damping bogie stops. Towing points front and rear |
Load Bunk | Mounted on runners, movable. |
Grapple | Komatsu G28 |
Crane Tip | ProTec |
Dimensions | |
---|---|
Length | 33’1” (w/shortest rear frame) 5’11” (front axle to middle joint) 10’10” (w/shortest rear frame, middle joint to rear axle) |
Width | 8’11” (with 600/55x26,5 tires) 9’8” (with 710/45x26,5 tires) |
Weight | 36,156 lbs. (6WD) 39,683 lbs. (8WD) |
Ground Clearance | 1’10” (6WD) at steering coupling 2’1” (8WD) at steering coupling |
Steering Angle | ±42° |
Transport Height | 12’9” (hoses included and with tire compression) |
Reach | Komatsu Loader 130F: 26’3”/32’10” |
Bunk Area | 6.3-63.5 sq. ft. depending on options and market |
Stroke Volume | 1.7 Gallons |
Engine | |
---|---|
Engine Make | 66 AWF |
Engine Type | Diesel engine w/turbo and intercooler. EU Stage IV and EPA Tier 4 Final |
Horsepower | 228 HP |
Hydraulic Capacity | 31 Gallons |
Rotator | G121 ProTec and slewing dampened link |
Drive Speed | 0-5/12.4 mph (terrain/road) (max speed with steering wheel) |
Engine Displacement | 1.7 Gallons |
Fuel Capacity | 42.3 Gallons |
Working Pressure | 3,771 PSI |
Drivetrain | |
---|---|
Transmission | Computer-controlled, hydrostatic mechanical transmission. 6/8-wheel drive. Transfer case with 2 positions (high and low). Disengageable drive operation. Differential locks front and rear. |
Hydraulic | |
---|---|
Cylinders | 6 |
Torque | 950 Nm at 1,500 RPM |
Hydraulic System | Single-circuit load-sensing system with variable piston pump. |
Hydraulic Flow | 74 gpm at 2,000 rpm |
Operational | |
---|---|
Brakes | Fully hydraulic multi-disc brakes. Hydraulic accumulator charging valve. Driving brakes/ Multi-disc brakes in oil bath. Working brake: Automatically/manually engaged when working. Parking brake: Spring-action brake with electro-hydraulic control. Emergency brake. Braking performance: Conforms to ISO 11169 and VVFS 2003:17. |
Steering | Hydraulic articulated joint with two dual-acting hydraulic cylinders. Lever steering: Load-sensing (LS) proportional steering with steering rocker. Electric steering: Finger-controlled miniature steering wheel on right armrest. |
Generator | 2 x 100 A |
Loading Capacity | 30,856 lbs. |
Tractive Force | 42,038 lbf. |
Slewing Torque | Komatsu Loader 130F: 21,168 lbs.-ft. |
AdBlue Tank Capacity | 9.2 Gallons |
Gross Bunk Load | 30,865 lbs. |
Lifting Torque | Komatsu Loader 130F: 93,670 lbs.-ft. |
Load Gates | Komatsu FlexGate; hydraulic, flexible, full-height gate in fixed or hydraulically manoeuvrable version. |
Electrical | |
---|---|
Voltage | 24 V |
Battery Capacity | 2 x 180 Ah |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
Main Technical Specifications | |
---|---|
MAKE | Komatsu |
MODEL | 855-3 |
