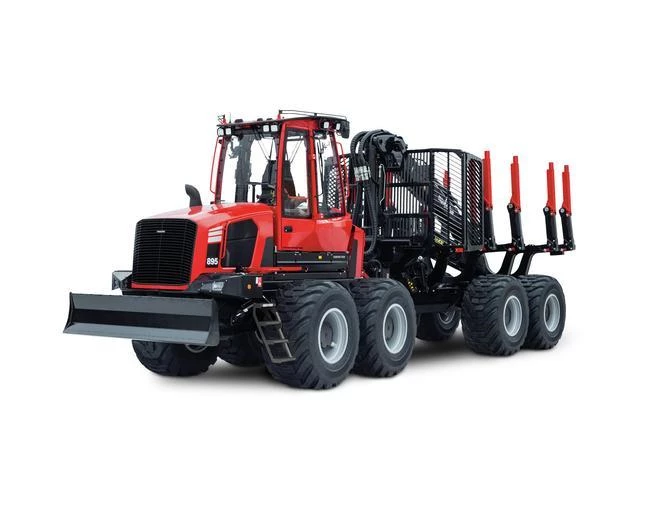

New Komatsu 895-2 Forwarder for Sale Tackle tough forestry jobs with confidence using Komatsu wheeled harvesters, forwarders, log loaders, swing machines, felling heads and harvesting heads. Forestry work is often in the most rugged terrain and brutal conditions — and Komatsu forestry equipment is engineered for the task. For your big log-hauling challenges, the 895 is designed to be your most trusted partner. Each component was developed to confidently handle a load up to 20 metric tons. Hydraulic retarder overspeed protection ensures the driveline won’t run too fast. The Komatsu 895 is designed to forward productively. Every component has been developed for a load capacity of 20 metric tons. No other forwarder matches this performance. It’s as simple as that.
Features and Benefits
|
Body | |
---|---|
Cab | Several alternative seat options. Ergonomically designed with headrest, armrests, joystick panels and waist safety belt. Depending on seat selection, different capabilities are available for individual adjustment of the seat cushion, backrest and lumbar support. Seat column with 0–180-degree working range. Windows: Polycarbonate windows throughout. Heating/ventilation: Fully automatic heating and cooling unit, ACC. Filtered intake air. Other: Windscreen wipers and washers on windscreen and rear window. Fire extinguisher, 2 kg (standard in EEA countries in compliance with applicable EU Directive). |
Frame Type | Several rear frame options. Frame with smooth V-shaped bottom made of high-strength steel. Sturdy balanced portal bogie. Damping bogie stops. Towing points front and rear. |
Load Bunk | Mounted on runners, movable. |
Grapple | Komatsu G36 |
Crane Tip | ProTec (standard) |
Dimensions | |
---|---|
Length | 35’5” (w/shortest rear frame) 6’7” (front axle to middle joint) 12’10” (w/shortest rear frame, middle joint to rear axle) |
Width | 10’4” (with 780/50x28,5 tires) |
Weight | 44,974 lbs. (6WD) 52,029 lbs. (8WD) |
Ground Clearance | 2’7” (8WD) at steering coupling |
Steering Angle | ±42° |
Transport Height | 13’3” (hoses included and with tire compression) |
Reach | Komatsu Loader 165F: 24’7”/27’11” |
Bunk Area | 56-77.5 sq. ft. depending on options and market |
Stroke Volume | 1.95 Gallons |
Engine | |
---|---|
Engine Make | AGCO Power |
Engine Type | Diesel engine w/turbo and intercooler. Tier 4 F |
Horsepower | 287 HP |
Hydraulic Capacity | 39 Gallons |
Rotator | G121/G141/G171 ProTec 2 |
Drive Speed | 0-14.3 mph |
Engine Displacement | 1.9 Gallons |
Fuel Capacity | 58.1 Gallons |
Working Pressure | 24.5 MPa (245 bar) |
Drivetrain | |
---|---|
Transmission | Computer-controlled, hydrostatic mechanical transmission. 6/8-wheel drive. Transfer case with 2 positions (high and low). Disengageable drive operation. Differential locks front and rear |
Hydraulic | |
---|---|
Cylinders | 6 |
Torque | 1,280 Nm at 1,500 RPM |
System Pressure | 3,553 PSI |
Hydraulic System | Single-circuit load-sensing system with variable piston pump. |
Hydraulic Flow | 95 gpm at 2,000 rpm |
Operational | |
---|---|
Brakes | Fully hydraulic multi-disc brakes. Hydraulic accumulator charging valve. Driving brakes/ Multi-disc brakes in oil bath. Working brake: Automatically engaged when working. Parking brake: Spring-action brake with electro-hydraulic control. Emergency brake. Braking performance: Conforms to ISO 11169 and VVFS 2003:17 |
Steering | Hydraulic articulated steering with two dualacting hydraulic cylinders. Lever steering: Load-sensing (LS) proportional steering with steering rocker. Electric steering: Finger-controlled miniature steering wheel on right armrest. |
Generator | 2 x 100 A |
Loading Capacity | 44,092 lbs. |
Tractive Force | 58,900 lbf. |
Slewing Torque | Komatsu Loader 165F: 32,010 lbs.-ft. |
AdBlue Tank Capacity | 5.8 Gallons |
Gross Bunk Load | 44,092 lbs. |
Lifting Torque | Komatsu Loader 165F: 11,698 lbs.-ft. |
Load Gates | Komatsu FlexGate; hydraulic, flexible, full-height gate in fixed or hydraulically manoeuvrable configuration |
Electrical | |
---|---|
Voltage | 24 V |
Battery Capacity | 2 x 180 Ah |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
Main Technical Specifications | |
---|---|
MAKE | Komatsu |
MODEL | 895-2 |
