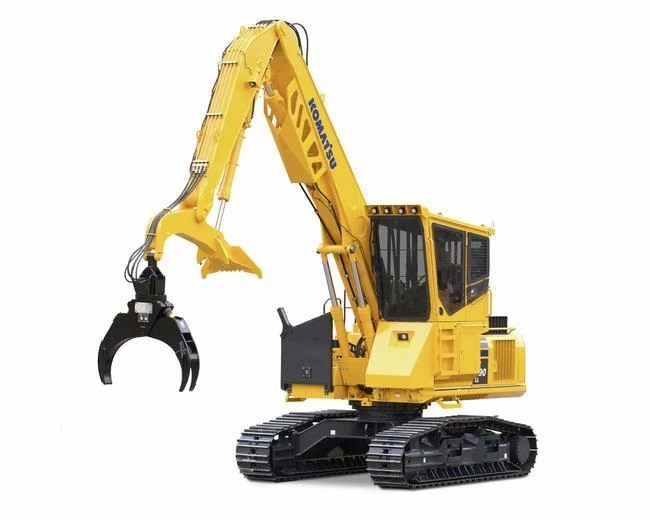

New Komatsu PC290LL-11 Swing Machine for Sale Tackle tough forestry jobs with confidence using Komatsu wheeled harvesters, forwarders, log loaders, swing machines, felling heads and harvesting heads. Forestry work is often in the most rugged terrain and brutal conditions — and Komatsu forestry equipment is engineered for the task. Designed for log loading and processing Rugged front work equipment, high and wide undercarriage, powerful swing system and special cooling system deliver high performance in demanding truck loading, shovel logging, processing (available with our 398 head) and road building applications.
Features and Benefits
Specialty: Processor, Road Builder, Shovel Logger, Truck Loader |
| Body | |
|---|---|
| Frame | X-frame (Center) |
| Number of Delimbing Knives | 398 Processing Head: 1 moveable top, 2 upper with proportional pressure control, 1 fixed bottom |
| Number of Carrier Rollers | 2 each side |
| Number of Shoes | 48 each side |
| Number of Track Rollers | 6 each side |
| Number of Working Modes | 6 |
| Seal of Track | Sealed track |
| Supply for Control circuit | Self-reducing valve |
| Track Frame | Box-section |
| Dimensions | |
|---|---|
| Length | Log Loader: 48’5” Processor: 33’5” Road Builder: 33’6” |
| Width | 11’7” (steps in working position); 11’5” (steps in transport position) 10’11” (cab width w/handrail w/tree deflector rotated or removed) 398 Processing Head: 71” |
| Height | Log Loader: 9’6” (to top of boom); 16’5” (to top of cab upright w/grouser height); 11’6” (to top of handrail w/grouser height); Engine Hood height-10’8” Processor: 10’9” (to top of boom); 13’2” (to top of cab upright w/grouser height); 11’6” (to top of handrail w/grouser height); Engine Hood height-10’8” Road Builder: 11’0” (to top of boom); 12’10” (to top of cab upright w/grouser height & light guard removed); 11’6” (to top of handrail w/grouser height); Engine Hood height-10’8” 398 Processing Head: 80” (to top knife); 97” (including rotator) |
| Weight | Log Loader: 87,370 lbs. Log Loader: Includes: Forestry cab with 48 in riser, 28 in double grouser shoes, Komatsu 40 ft. reach live heel forestry front, heavy counterweight, rated capacity of lubricants, coolant, full fuel tank, operator, and standard equipment (no grapple). Processor: 81,571 lbs. Processor: Includes: Forestry cab with 7 in riser, 28 in double grouser shoes, 20 ft. 2 in one-piece processor boom, 11 ft. 6 in processor arm, variable pitch reversing fan, heavy counterweight, rated capacity of lubricants, coolant, full fuel tank, operator, and standard equipment (no head). Road Builder: 82,410 lbs. Road Builder: Includes: Forestry cab with 7 in riser, 28 in double grouser shoes, 20 ft. 2 in one-piece boom, 10 ft. 6 in arm, 50.9 in bucket, heavy counterweight, rated capacity of lubricants, coolant, full fuel tank, operator, and standard equipment. 398 Processing Head: 6,140 lbs. |
| Ground Clearance | 2’4” min 4’6” counterweight |
| Transport Height | Log Loader: 11’4” (to top of cab tilted w/grouser height) |
| Final Drive | 2.4 US gallons |
| Working Height | Processor wo/head: 34’6” (to arm pin); 34’4” (to Komatsu adapter pin) |
| Transport Ground Length | Log Loader: 47’ Processor: 17’3” Road Builder: 18’6” |
| Engine | |
|---|---|
| Engine Make | Komatsu |
| Engine Model | SAA6D107E-3 |
| Engine Type | Direct injection |
| Horsepower | 196 HP |
| Bore x Stroke | 4.21” x 4.88” |
| Governor | All-speed control, electronic |
| Rated RPM | 2050 RPM |
| Aspiration | Komatsu Variable Geometry Turbocharged, aftercooled, cooled EGR |
| Cycles | 4 |
| Piston Displacement | 408 in³ |
| Fan Drive Type | Mechanical with viscous fan clutch |
| Fuel Capacity | 105.7 US gallons |
| DEF Tank Capacity | 6.1 US gallons |
| Cooling System | Water-cooled |
| Coolant Capacity | 9.5 US gallons |
| Travel Speed | Low: 168 MPH Mid: 2.2 MPH High: 3.0 MPH |
| Engine Capacity | 6.1 US gallons |
| Drivetrain | |
|---|---|
| Track Length | 16’4”; on ground 13’2” |
| Ground Pressure | Log Loader: 9.24 PSI Processor: 8.68 PSI Road Builder: 8.68 PSI |
| Grouser Height | 1’9” |
| Track Adjuster | Hydraulic |
| Hydraulic | |
|---|---|
| Cylinders | 6 |
| Pump | Boom, arm, bucket, swing, and travel circuits |
| Hydraulic Tank Capacity | 34.9 US gallons |
| Hydraulic Cylinders | Number x Bore x Stroke x Rod Diameter Log Loader: -Boom: 2 x 5.9” x 49.1” x 4.3” -Arm: 1 x 7.3” x 55.9” x 4.7” -Bucket: 1 x 5.5” x 41.9” x 3.9” Processor/Road Builder: -Boom: 2 x 5.5” x 51.2” x 3.9” -Arm: 1 x 5.9” x 64.3” x 4.3” -Bucket: 1 x 5.5” x 39.7” x 3.9” |
| Relief Valve Setting | Implement circuits: 5,400 PSI Travel circuit: 5,400 PSI Swing circuit: 4,050 PSI Pilot circuit: 470 PSI Grapple rotate circuit: 1,420 PSI Grapple open/close circuit: 4,340 PSI |
| Hydraulic Motors | Travel: 2 x axial piston motors with parking brake Swing: 1 x axial piston motor with swing holding brake |
| Hydraulics | HydrauMind (Hydraulic Mechanical Intelligence New Design) system, closed-center system with load sensing valves and pressure compensated valves |
| Hydraulic System Capacity | 66.8 US gallons |
| Operational | |
|---|---|
| Dig Depth | Road Builder: 21’11”; 19’11” (vertical wall) |
| Dig Height | Road Builder: 34’6” |
| Bucket Digging Force | Road Builder: 39,463 lbs. (SAE rating); 44,533 lbs. (ISO rating) |
| Dump Height | Road Builder: 25’3” |
| Brakes | Service: hydraulic lock Parking: Mechanical disc brake |
| Steering | Two levers with pedals |
| Gradeability | 70%, 35° |
| Feeder System | 398 Processing Head: 4 motors with 3-driven rollers |
| Working Depth | Processor wo/head: 13’6” (to arm pin); 15’4” (to Komatsu adapter pin) |
| Maximum Reach | Log Loader: 39’1”; 39’7” (at ground level); 14’9” (below grade depth); 46’5” (above grade height) Processor (wo/head): 31’7” (to Komatsu adapter pin); 30’6” (to arm pin) |
| Flow | 126.5 US gpm |
| Tail Swing Radius | 9’10” |
| Drawbar Pull | 64,520 lbf. |
| Swing Torque | 75,902 lbs.-ft. |
| Swing Speed | 9.4 RPM |
| Shoe Width | 2’4” |
| Track Gauge | 9’2” |
| Swing Reduction | Planetary Gear |
| Swing Circle Lubrication | Grease-bathed |
| Pump Type | Variable displacement piston type |
| Drive Method | Hydrostatic |
| Digging Reach | Road Builder: 34’9”; 34’1” (at ground level) |
| Arm Crowd Force | Road Builder: 28,881 lbs. (SAE rating); 27,876 lbs. (ISO rating) |
| Opening Upper Knives | 398 Processing Head: 32” |
| Roller Opening | 398 Processing Head: 30” |
| Max Cut | 398 Processing Head: 28” |
| Swing Center to Rear End | 9’10” |
| Swing Drive Capacity | 3.6 US gallons |
| Swing Drive Method | Hydrostatic |
| Swing Holding Brake/Swing Lock | Mechanical disc brake |
| Swing Radius | Road Builder: 12’ |
| Swing Service Brake | Hydraulic lock |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Komatsu |
| MODEL | PC290LL-11 |
