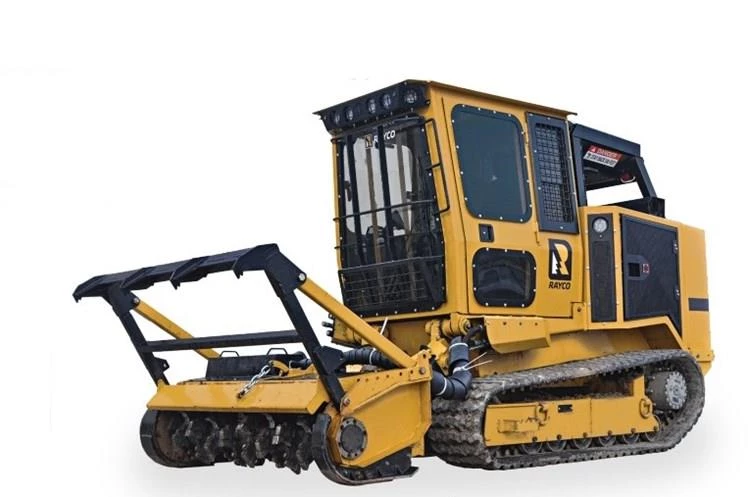

New Rayco C120 Forestry Mulcher for Sale Rayco’s C120 Forestry Mulcher is the answer if you’re looking for a purpose-built mulcher but need the versatility of rubber tracks. It rides on a 18-inch (450 mm) wide steel-imbedded rubber track. A reliable, 120-HP (89.4-kW) Cummins diesel engine supplies power, while Rayco’s exclusive Super Flow, closed-loop hydrostatic system delivers mulching power not found in ordinary Compact Track Loaders. Purpose-built for mulching, the C120 features a heavy-duty rear door, hydraulic winch, and Rayco’s exclusive elevated cooling design, which places engine radiators in both the rear of the engine compartment and in the limbriser for maximum cooling performance in the harshest climates. The cab is certified ROPS/OPS/FOPS with escape hatches in the roof and rear window.
Models
|
Specs | |
---|---|
Cab Certifications | ROPS ISO 8082; FOPS ISO 8083; OPS ISO 8084 |
Dimensions | |
---|---|
Length | 204.4” (Carrier w/FM120-6R Mulcher) 120RA & 120SA: 17’ |
Width | 120RA, 120SA & FM120-6R/Predator Mulching Head: 7’ FM120-6C/Denis Cimaf Mulching Head: 7’3” |
Height | 120RA & 120SA: 8’6” |
Weight | 17,725 lbs. (Carrier w/winch & FM120-6R Mulcher) 120RA: 16,725 lbs. (Carrier w/Mulcher) 120SA: 17,660 lbs. (Carrier w/Mulcher) Predator Mulching Head: 3,465 lbs. Denis Cimaf Mulching Head: 3,075 lbs. |
Rotor Diameter | FM120-6R/Predator Mulching Head: 16.75” FM120-6C/Denis Cimaf Mulching Head: 18” |
Engine | |
---|---|
Engine Make | Cummins |
Engine Model | QSF 3.8L, T4F |
Horsepower | 120 HP |
Fuel Type | Diesel |
Hydraulic Capacity | 14 Gallons |
Fuel Capacity | 45 Gallons |
Travel Speed | 4.7 MPH (High) 2.6 MPH (Low) |
High Flow Hydrostatic | 57 GPM/5800 PSI (Super Flow Circuit) |
Drivetrain | |
---|---|
Track Width | Rubber 18” 120RA: 18” 120SA: 20” |
Ground Pressure | FM120-6R: 5.65 PSI FM120-6C: 5.87 PSI |
Track Speeds | 7 MPH (optional on 120RA) |
Operational | |
---|---|
Cutting Width | FM120-6R/Predator Mulching Head: 6’ FM120-6C/Denis Cimaf Mulching Head: 6’2” |
Rotor Speed | FM120-6R: 2200 RPM FM120-6C: 2500 RPM Predator Mulching Head: 2200 RPM Denis Cimaf Mulching Head: 2500 RPM |
Mowing Height | 7’5” |
Cutter Teeth | FM120-6R/Predator Mulching Head: 36 Carbide Tipped Reversible FM120-6C/Denis Cimaf Mulching Head: 27 Sharpenable Planar |
Attachment Flow | 40 GPM/3770 PSI (High) 20 GPM/3770 PSI (Low) |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
Main Technical Specifications | |
---|---|
MAKE | Rayco |
MODEL | C120 Forestry Mulcher |
