Multiquip DA7000SSA3

New Multiquip Generator for Sale

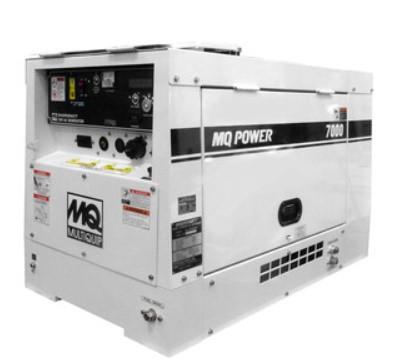

New Multiquip DA7000SSA3 Portable Generator for Sale

MQ Power WhisperWatt Super-Silent Generators are built to withstand the toughest jobs no matter how challenging the application.  Some of the features include a heavy-duty steel housing, a patented open delta winding, and an automatic voltage regulator.  Our generators range from 6 kW to 600 kVA and they provide unmatched reliability in portable power.

Our compact and portable single-phase WhisperWatt Super-Silent Generators come fully equipped with just about every control and convenience feature imaginable. They are great sources of power for many applications including construction and residential.

The DA7000SSA3 series generator is proven to handle the toughest applications in the most extreme environments with remarkable results. This model is available with a magnitude of options which assist in making this the perfect choice for any job site requirements.

The DA7000SSA3 is a 7kW Single phase generator with a 1.0 power factor, 120/240 volt output and has a 2-pole field. It features a mechanical governor that maintains a steady state 60 Hz within 3-5% from no load to full load. Its comprehensive analog control panel includes instruments such as an lamps, volt meter, and hour meter along with a Main GFCI circuit breaker.  A single-side maintenance design provides direct access to all filters. At 534 lbs (242 kg), the DA7000SSA3 is the lightest model in the series of WhisperWatt Super-Silent Generators.
Dimensions
Gross Vehicle Wt Rating (GVWR) 2,000 lbs.
Gross Axle Wt Rating (GAWR) 2,000 lbs.
Engine
Engine Make Kubota
Engine Model Z482-E3B
Cylinders 2
Cooling Liquid cooled
Bore x Stroke 2.52” x 2.68”
Displacement 29.23 in³
Fuel Type ASTM-D975-No. 1 & No.2-D
Fuel Consumption 0.69 GPH (At full load)
0.55 GPH (At ¾ load)
0.48 GPH (At ½ load)
0.37 GPH (At ¼ load)
Fuel Tank Capacity 6.6 Gallons
Battery 12V 35Ah x 1
Starting System Electric
Oil Capacity .66 Gallons
Cycles 4-cycle
Emission Standards EPA Tier 4 Final Certified
Engine Speed 3600 RPM
Phase Single Phase (3-wire)
Armature Connection Series
Excitation Solid state, Statically excited system
Power Factor 1.0
Engine Power Output 12.5 bhp
Coolant Capacity .74 Gallons
Engine Design Vertical, diesel engine
Drivetrain
Voltage Regulation ±2.5% (No Load to Full Load)
Frequency Regulation No Load to Full Load: ±3-5% under varying loads from no load to 100% rated load
Steady State: ±2.5% of mean value for constant loads from no load to full load
Operational
Frequency 60 Hz
Poles 2-pole
Prime Rating 6 kW
Standby Rating 7 kW
Generator RPM 3600 RPM
Generator Design Revolving field, Self-ventilated, Drip-proof, Single bearing
Standby Output 7 kW
Prime Output 6 kW
Battery
Voltage Single Phase: 120/240 V
Amps 120 Volt: 58.3 Max & 50 Continuous
240 Volt: 29.2 Max & 25 Continuous
Rated Voltage 120/240V
Measurements
Length 44.9” (skid-mount)
99.97” (trailer-mount)
Width 25.6” (skid-mount)
Height 31.3” (skid-mount)
52.63” (trailer-mount)
Weight 533 lbs. (Dry Weight)
1,041 lbs. (Dry Weight w/TRLRMPXF)
597 lbs. (Wet Weight)
1,105 lbs. (Wet Weight w/TRLRMPXF)
Fits to Model DA7000, DCA10SPX, DCA15SPC, TLG8SSK4F2
Generator can be placed on MQ Trailer Models: TRLR10W, TRLRMP, TRLRMPXF, TRLR75XF2
Other
Trailer Skid-Mount
Trailer-Mount
Insulation Class F
Tire Size ST175/80D13 LR-C
Sound Level 65 dB(A) (Full Load at 23 ft.)
Winding Pitch 11/16
Leads 4
Compression Ratio 23:1
Tire Load Rating 1,360 lbs. (each)
Wheel Bolt Pattern 5 Lug on 4.5”
  • Heavy duty, 4-cycle, liquid-cooled diesel engine provides maximum reliability.
  • EPA emissions certified — Tier 4 Final emissions compliant.
  • Single-side Maintenance Design — Quick, direct access to all filters. External fluid drain extensions allow fast, easy service.  Ideal for Ground Heater applications and confined areas.
  • Automatic safety shutdown system — Monitors low oil pressure, high water temperature and battery charge via warning lamp display module.
  • Excellent voltage regulation — Power is controlled within ±2.5% of mean voltage. Self-regulated.
  • Full load acceptance of standby namplate rating in a single step.
  • Sound attenuated, weather resistant, steel housing provides operation at 65 dB(A) at 23 feet. Fully lockable enclosure allows safe unattended operation.
  • E-coat primer with polyurethane enamel finish coat.
  • Internal fuel tank — Holds 6.6 gallons (25 liters).
  • Brushless Generator Design — Reduces services and maintenance requirements.
  • Complete power panel — Fully covered single phase receptacles allow fast and convenient hookup for most applications including temporary power boxes, tools and lighting equipment. All are NEMA standard.
  • Complete generator instrumentation — Includes 2-pole GFCI circuit breaker, AC voltmeter, hour meter, idle control switch, full power switch, warning lamp display, and ignition switch.
  • Main Line Circuit Breaker — Provides full panel GFCI protection, OSHA and NEC compliant, 25 Amp rating.
  • Wheel Kit
  • Single Axle Trailer
  • Single Axle Trailer with an Integral 28 Gallon Capacity Fuel Cell
  • Auto Start
  • Battery Tender
  • Water Heater
  • Fuel Heater
  • Emergency Stop
  • Audible Alarm
  • Subbase Fuel Tanks (Custom size configurations)

OPTIONAL GENERATOR FEATURES

  • Automatic Start/Stop Control — Automatically starts and monitors generator during power failure when used in conjunction with a transfer switch.
  • Jacket Water Heater — For easy starting in cold climates.
  • Solid State Battery Charger — Provides fully automatic and self-adjusting charging to the generator’s battery system.
  • Fuel/Water Separator — Effectively separates damaging condensation from fuel.
  • Emergency Stop Switch — When manually activated, shuts down generator in the event of an emergency.
  • Trailer Mounted Package — Highway legal trailer with electric brakes with single axle configuration. Extra capacity fuel tank is also available.

OPTIONAL FUEL CELL FEATURES

  • Sub-base Cells (Single Wall or Double Wall) — Additional fuel cell for extended run time. Available in a variety of configurations.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Multiquip
MODEL DA7000SSA3

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Multiquip DA7000SSA3

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Multiquip DA7000SSA3 Portable Generator for Sale

MQ Power WhisperWatt Super-Silent Generators are built to withstand the toughest jobs no matter how challenging the application.  Some of the features include a heavy-duty steel housing, a patented open delta winding, and an automatic voltage regulator.  Our generators range from 6 kW to 600 kVA and they provide unmatched reliability in portable power.

Our compact and portable single-phase WhisperWatt Super-Silent Generators come fully equipped with just about every control and convenience feature imaginable. They are great sources of power for many applications including construction and residential.

The DA7000SSA3 series generator is proven to handle the toughest applications in the most extreme environments with remarkable results. This model is available with a magnitude of options which assist in making this the perfect choice for any job site requirements.

The DA7000SSA3 is a 7kW Single phase generator with a 1.0 power factor, 120/240 volt output and has a 2-pole field. It features a mechanical governor that maintains a steady state 60 Hz within 3-5% from no load to full load. Its comprehensive analog control panel includes instruments such as an lamps, volt meter, and hour meter along with a Main GFCI circuit breaker.  A single-side maintenance design provides direct access to all filters. At 534 lbs (242 kg), the DA7000SSA3 is the lightest model in the series of WhisperWatt Super-Silent Generators.
GENERAL INFORMATION
Manufacturer
Multiquip
Model Year
Model
DA7000SSA3
Condition
NEW
Dimensions
Gross Vehicle Wt Rating (GVWR)
2,000 lbs.
Gross Axle Wt Rating (GAWR)
2,000 lbs.
Engine
Engine Make
Kubota
Engine Model
Z482-E3B
Cylinders
2
Cooling
Liquid cooled
Bore x Stroke
2.52” x 2.68”
Displacement
29.23 in³
Fuel Type
ASTM-D975-No. 1 & No.2-D
Fuel Consumption
0.69 GPH (At full load) 0.55 GPH (At ¾ load) 0.48 GPH (At ½ load) 0.37 GPH (At ¼ load)
Fuel Tank Capacity
6.6 Gallons
Battery
12V 35Ah x 1
Starting System
Electric
Oil Capacity
.66 Gallons
Cycles
4-cycle
Emission Standards
EPA Tier 4 Final Certified
Engine Speed
3600 RPM
Phase
Single Phase (3-wire)
Armature Connection
Series
Excitation
Solid state, Statically excited system
Power Factor
1.0
Engine Power Output
12.5 bhp
Coolant Capacity
.74 Gallons
Engine Design
Vertical, diesel engine
Drivetrain
Voltage Regulation
±2.5% (No Load to Full Load)
Frequency Regulation
No Load to Full Load: ±3-5% under varying loads from no load to 100% rated load Steady State: ±2.5% of mean value for constant loads from no load to full load
Operational
Frequency
60 Hz
Poles
2-pole
Prime Rating
6 kW
Standby Rating
7 kW
Generator RPM
3600 RPM
Generator Design
Revolving field, Self-ventilated, Drip-proof, Single bearing
Standby Output
7 kW
Prime Output
6 kW
Battery
Voltage
Single Phase: 120/240 V
Amps
120 Volt: 58.3 Max & 50 Continuous 240 Volt: 29.2 Max & 25 Continuous
Rated Voltage
120/240V
Measurements
Length
44.9” (skid-mount) 99.97” (trailer-mount)
Width
25.6” (skid-mount)
Height
31.3” (skid-mount) 52.63” (trailer-mount)
Weight
533 lbs. (Dry Weight) 1,041 lbs. (Dry Weight w/TRLRMPXF) 597 lbs. (Wet Weight) 1,105 lbs. (Wet Weight w/TRLRMPXF)
Fits to Model
DA7000, DCA10SPX, DCA15SPC, TLG8SSK4F2 Generator can be placed on MQ Trailer Models: TRLR10W, TRLRMP, TRLRMPXF, TRLR75XF2
Other
Trailer
Skid-Mount Trailer-Mount
Insulation
Class F
Tire Size
ST175/80D13 LR-C
Sound Level
65 dB(A) (Full Load at 23 ft.)
Winding Pitch
11/16
Leads
4
Compression Ratio
23:1
Tire Load Rating
1,360 lbs. (each)
Wheel Bolt Pattern
5 Lug on 4.5”
