Multiquip DCA15SPXU4F-Super-Silent (7 to 36kW)

Multiquip DCA15SPXU4F-Super-Silent (7 to 36kW)

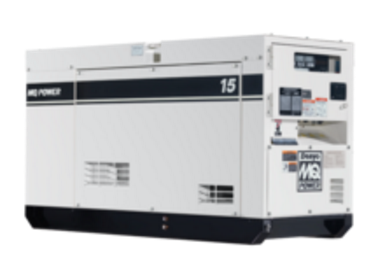

New Multiquip DCA15SPXU4F Portable Generator for Sale

Our compact and portable single-phase WhisperWatt Super-Silent Generators come fully equipped with just about every control and convenience feature imaginable. They are great sources of power for many applications including construction and residential.

The DCA15SPXU4F is a 15 kilowatt single phase generator with 1.0 power factor and 120/240 volt output. The unit features a steel, sound attenuated, weatherproof and lockable housing. Its easy to maintain design offers quick and direct access to all filters and drain extensions. An electronic governor control maintains steady state 60 Hertz within 0.25 percent from no load to full load. Its comprehensive analog control panel includes several instruments including an ammeter, frequency meter, AC circuit breaker and much more.
Engine
Engine Make Kubota
Engine Model D1503
Engine Type 4-cycle, swirl chamber
Horsepower 24.8 bhp (18.3 kW)
Cooling Water
Fuel Type Diesel
Fuel Consumption Full Load: 1.09 gph (4.1 lph)
3/4 Load: 0.08 gph (3 lph)
1/2 Load: 0.64 gph (2.4 lph)
1/4 Load: 0.41 gph (1.6 lph)
Fuel Tank Capacity 16.4 gal. (62 l)
Battery 12V 70 Ah x 1
Starting System Electric
Oil Capacity 1.48 gal. (5.6 l)
Operational
Maximum AC Output 14.7 kW
Rated AC Output 14 kW
AC Frequency 60 Hz
Noise Level 64 dBA at 23 ft.
DC Voltage 120/240V
Prime Rating 14 kW
Measurements
Length 98.6 in. (2,504.4 mm)
Width 55.5 in. (1,409.7 mm)
Height 22 in. (558.8 mm)
Weight 713 lbs. (323 kg) with fuel
513 lbs. (233 kg) without fuel
Other
Tires ST175/80D13 LR-C
  • Heavy duty, 4-cycle, direct injection, heated crankcase vent, turbocharged diesel engine provides maximum reliability.
  • EPA emissions certified — Tier 4 final emissions compliant.
  • Single-side Maintenance Design — Quick, direct access to all filters. External fluid drain extensions allow fast, easy service. Ideal for confined applications.
  • Automatic safety shutdown system monitors the water temperature, engine oil pressure, battery charge. Warning lights indicate abnormal conditions.
  • Electronic Governor Control — isochronous control, maintains frequency to within ±0.25% from no load to full load.
  • Full load acceptance of standby nameplate rating in a single step.
  • Sound attenuated, weather resistant, steel housing provides operation at 64 dB(A) at 23 feet. Fully lockable enclosure allows safe unattended operation.
  • E-coat and powder coat paint provides durability and weather protection.
  • Internal fuel tank — Holds 16.4 gallons (62 liters).
  • Brushless generator design — reduces service and maintenance requirements.
  • Complete Power Panel — Output terminal lugs and single phase receptacles allow fast and convenient hookup for most applications including temporary power boxes, tools and lighting equipment. All are NEMA standard.
  • Complete generator analog instrumentation including voltage regulator control, ammeter phase selector switch, voltmeter phase selector switch, AC voltmeter, AC ammeter, frequency meter, panel light, key switch and circuit breaker.
  • Main Line Circuit Breaker — OSHA and NEC compliant, 70 amp rating.
  • Single Axle Trailer
  • Single Axle Trailer with an integral 28 gallon capacity fuel cell
  • Auto Start
  • Water Heater
  • Battery Charger
  • Emergency Stop
  • Audible Alarm
  • Fuel Filter/Water Separator
  • Subbase Fuel Tanks (Custom size configurations)
