Multiquip TLG8SSK4F2-Super-Silent (7 to 36kW)

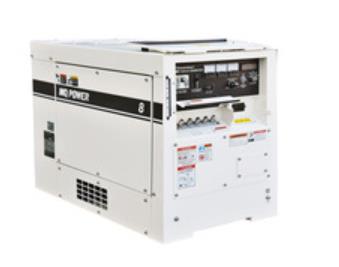

New Multiquip TLG8SSK4F2 Portable Generator for Sale

The TLG8SSK4F2 series generator is designed to handle the toughest applications in the most extreme environments with remarkable results. This model is available with a magnitude of options which assist in making this the perfect choice for any job site requirements.

The TLG8SSK4F2 is a 6kW Three phase generator with a 0.8 power factor, 208/240 volt output and has a 2-pole field. It features a mechanical governor that maintains a steady state 60 Hz within 2.5% from no load to full load. Its comprehensive analog control panel includes instruments such as an amperage, frequency, voltage, and hour meters along with a Main circuit breaker. At 646 lb (263 kg), the TLG8SSK4F2 is the lightest model in the series of three phase WhisperWatt Super-Silent Generators.
Dimensions
Wheels Bolt Pattern: 5 lug on 4.5”
Gross Vehicle Wt Rating (GVWR) 2760 lbs.
Gross Axle Wt Rating (GAWR) 3500 lbs.
Engine
Engine Make Kubota
Engine Model Z482-E3B
Engine Type EPA Tier 4 Final Certified; Vertical, 4-cycle, diesel engine
Cooling Liquid
Fuel Consumption Full load: 0.69 gph
¾ load: 0.55 gph
½ load: 0.48 gph
¼ load: 0.37 gph
Fuel Tank Capacity 6.8 gallons
Battery 12V 35Ah x 1
Oil Capacity .66 gallons
Armature Connection Wye
Excitation Brushless with AVR
Power Factor .8
Engine Power Output 12.3 bhp
Drivetrain
Voltage Regulation ±2.5% (No Load to Full Load)
Frequency Regulation ±0.25% of means valve for constant loads from no load to full load % (steady state load)
Operational
Frequency 60 Hz
Generator Revolving field, Self-ventilated, Drip-proof, Single bearing
Noise Level 64 dB(A) (Full load at 23 ft.)
Poles 2
Prime Rating 6kW
Standby Rating 6.4kW
Generator RPM 3600 RPM
Battery
Voltage 120/127/139 V (Single Phase)
208/220/240 V (Three Phase)
Measurements
Length 43.3”
TRLRMP: 98.6”
Width 24”
TRLRMP: 55.5”
Height 28.3”
TRLRMP: 22"
Weight 580 lbs. (dry)
646 lbs. (wet)
TRLRMP: With Fuel-713 lbs. & Without Fuel-513 lbs.
Fits to Manufacturer Multiquip
Fits to Model DA7000SSA2, DCA10SPXU4C, TLG855K4F2 & DCA15SPXU4F
Other
Tires Size: ST175/80D13 LR-C
Load Rating (ea.): 1,380 lbs.
  • Excellent voltage regulation — Power is controlled within ±0.5% of mean voltage. Self-regulated.
  • Brushless Generator Design — Reduces services and maintenance requirements.
  • Sound attenuated, weather resistant, steel housing provides operation at 64 dB(A) at 23 feet. Fully lockable enclosure allows safe unattended operation.
  • Internal fuel tank — Holds 6.8 gallons (26 liters).
  • E-coat and powder coat paint provides durability and weather protection.
  • Single-side Maintenance Design — Quick, direct access to all filters. External fluid drain extensions allow fast, easy service. Ideal for Ground Heater applications and confined areas.
  • Automatic safety shutdown system — Monitors low oil pressure, high water temperature and battery charge via warning lamp display module.
  • Complete generator instrumentation — Includes 2-pole GFCI circuit breaker, AC voltmeter, AC ammeter, frequency meter, voltage regulator,hour meter, idle control switch, warning lamp display, and ignition switch.
  • Complete power panel — Fully covered; three-phase terminals and single phase GFCI receptacle allow fast and convenient hookup for most applications including temporary power boxes, tools and lighting equipment. All are NEMA standard.
  • EPA emissions certified — Tier 4 Final emissions compliant.
  • Wheel Kit
  • Single Axle Trailer
  • Single Axle Trailer with an Integral 28 Gallon Capacity Fuel Cell
  • Auto Start
  • Battery Tender
  • Water Heater
  • Fuel Heater
  • Emergency Stop
  • Audible Alarm
  • Subbase Fuel Tanks (Custom size configurations)
  • Automatic Start/Stop Control — Automatically starts and monitors generator during power failure when used in conjunction with a transfer switch.
  • Solid State Battery Charger — Provides fully automatic and self-adjusting charging to the generator’s battery system.
  • Fuel/Water Separator — Effectively separates damaging condensation from fuel.
  • Emergency Stop Switch — When manually activated, shuts down generator in the event of an emergency.
  • Single Wall or Double Wall Sub-base Fuel Tanks — Additional fuel cell for extended run time. Available in a variety of configurations.
  • Trailer Mounted Package — Highway legal trailer with electric brakes with single axle configuration. Extra capacity fuel tank is also available.
