Allmand Night-Lite GR-Series Liquid-Cooled 3kW

New Light Tower for Sale

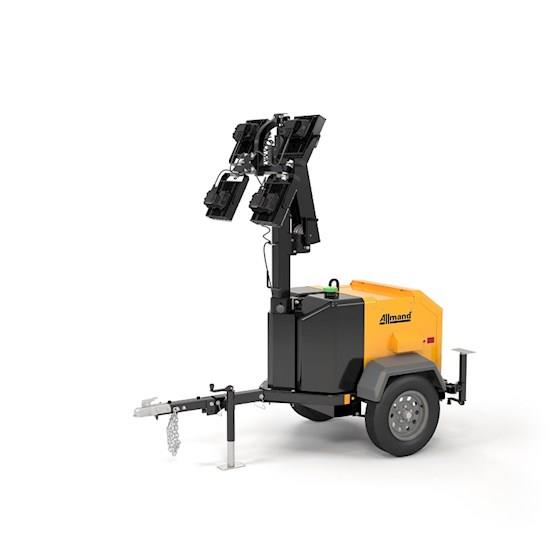

New Allmand Night-Lite GR-Series Liquid-Cooled 3kW Light Tower for Rental

The Night-Lite™ GR-Series Liquid-Cooled 3kW light tower: bigger, brighter light and longer run times—so you get more done on the jobsite.

  • Kubota diesel engine with 63-gallon fuel tank: 313-hour run time with 350-watt lights; 360-hour run time with optional 250-watt lights.
  • Four 350-watt LED fixtures produce 204,488 total lumens and 38,610 ft 2 area at 0.5 ft-c: 19% more lumen output and 19,084 ft 2 more light area than the leading competitor.
  • Best-in-class 1,000-hour oil change interval: lower maintenance expenses.
Body
Number of Units 20 (48’ Flatbed)
22 (53’ Flatbed)
Dimensions
Length 82.5”
Width 98”
50.5” (Transport)
Height 276”
98.5” (Transport)
Weight 1,200 lbs. (shipping – No Fuel)
1,155 lbs. (Net – Dry)
1,580 lbs. (Net – Wet)
Engine
Engine Make Kubota
Engine Model Z482
Engine Type Tier 4 Final
Horsepower 5.1 HP
Fuel Tank Capacity 63 Gallons
Watts 250 W & 350 W
Outlets Single 120V/20A GFI
Prime Power 3kW
Operational
Lumens 152,324 (250W)
204,488 (350W)
Operating Time 360 Hrs (250 W LED)
313 Hrs (350 W LED)
Shipping 20 units on a 48’ flatbed trailer
22 units on a 53’ flatbed trailer
LED Life 50,000 hrs.
Light Output 51,122 Lumens Per Lamp (350W)
38,081 Lumens Per Lamp (250W)
  • Mast: Flexible lighting with a vertical mast extending to 23 feet
  • Deep Sea L401 Controller:
    • 16 Event Scheduler programmable to operate up to 4 load outputs
    • Configurable to run automatically between sunset and sunrise
    • Heated display option ensures operation in extreme cold weather
  • Compact Design: Fit 20 units on a 48 ft flatbed, 22 units on a 53 ft flatbed, more units for the same shipping cost
  • Heavy-duty Leveling Jacks
  • Vertical Tower: Easy to raise and lower with a dual‑handle manual winch
  • Controls: Simple, easy to use
  • Easy Access: Wide area rear door for ease of access maintenance
  • SMD Style LEDs
  • Forklift Pockets: Easily load and unload equipment
  • Lifting Eye
  • 359 degree rotation: Increase flexibility in light spread
  • Standard Trailer Coupler 2” ball
  • Stabilizers: Steel tongue jack foldable with dual pins, 3 point outriggers
  • Service Interval: 1000 hour oil change interval
  • Fuel Tank: 63-gallon fuel tank extends operation
  • Up to 360 hour run time
  • Liquid-Cooled Engine
  • Operating Temperatures: Of -40 degrees Fahrenheit (Arctic Package required) to 120 degrees Fahrenheit
  • Welded Steel Frame with Lockable Door
  • (4) LED Light Fixtures 350W: Each 51,112 per lamp, 204,488 total
  • (4) LED Light Fixtures 250W: Each 38,081 per Lamp, 152,324 Total
  • Arctic Package (includes 120V immersion style block heater & HD battery)
  • 250W LED Lights
  • LED Diffuser Panels
  • Custom Paint
  • Telematics Package (customer supplied - standard factory lead time for design)

All machines are not available at all locations.
