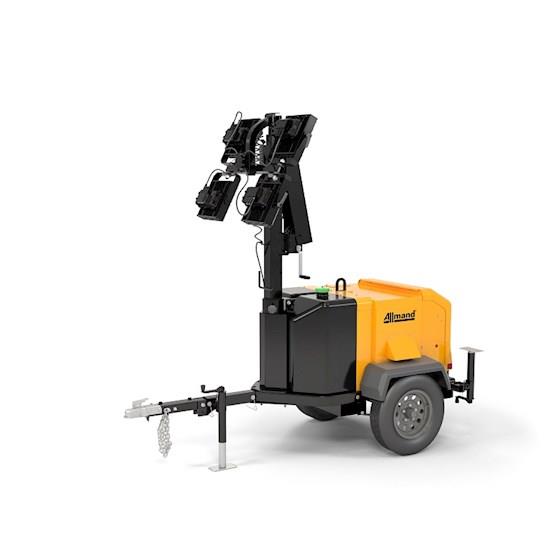

Allmand Night-Lite GR-Series Liquid-Cooled 6kW

New Allmand Light Tower for Sale

New Allmand Night-Lite GR-Series Liquid-Cooled 6kW Light Tower for Rental

The Night-Lite™ GR-Series Liquid-Cooled 6kW light tower: bigger, brighter light and longer run times—so you get more done on the jobsite.

  • 63-gallon fuel tank: 195 to 215-hour run time with 350-watt lights
  • Four 350-watt LED fixtures produce 2,488 total lumens and 38,610 ft2 area at 0.5 ft-c: 19% more lumen output and 13,0102
  • Best-in-class 1,000-hour oil change interval: lower maintenance expenses.
Body
Number of Units 18 (48’ Flatbed)
20 (53’ Flatbed)
Dimensions
Length 87.5” (w/tongue up)
107.25” (w/tongue down)
Width 98”
50.5” (Transport)
Height 276”
98.5” (Transport)
Weight 1,355 lbs. (shipping – No Fuel)
1,310 lbs. (Net – Dry – Cat)
1,345 bs. (Net – Dry – Kubota)
1,750 lbs. (Net – Wet – Cat)
1,790 lbs. (Net – Wet – Kubota)
Engine
Engine Make Kubota & Cat
Engine Model Kubota D1005 & Cat C1.1
Engine Type Tier 4 Final
Horsepower 11.6 HP (Kubota)
13.8 HP (Cat)
Fuel Tank Capacity 63 Gallons
Watts 250 W & 350 W
Outlets Single 120V/20A Duplex GFCI, Single 120V/30A RV, Single 240V/30A 4 Prong Twistlock
Prime Power 6kW
Operational
Lumens 204,488
Operating Time Kubota: 214 Hrs (350 W LED)
Cat: 195 Hrs (350 W LED)
Shipping 18 units on a 48’ flatbed trailer
20 units on a 53’ flatbed trailer
LED Life 50,000 hrs.
Light Output 51,122 Lumens Per Lamp (Cat)
  • Mast: Flexible lighting with a vertical mast extending to 23 feet
  • Deep Sea L401 Controller
    • 16 Event Scheduler programmable to operate up to 4 load outputs
    • Configurable to run automatically between sunset and sunrise
    • Heated display option ensures operation in extreme cold weather
  • Compact Design: Fit 18 units on a 48 ft flatbed, 20 unit on a 53 ft flatbed, more units for the same shipping cost
  • Heavy-duty Leveling Jacks
  • Vertical Tower: Easy to raise and lower with a dual‑handle manual winch
  • Controls: Simple, easy to use
  • Easy Access: Wide area rear door for ease of access maintenance
  • SMD Style LEDs
  • Forklift Pockets: Easily load and unload equipment
  • Lifting Eye
  • 359 degree rotation: Increase flexibility in light spread
  • Standard Trailer Coupler 2” ball
  • Stabilizers: Steel tongue jack foldable with dual pins, 3 point outriggers
  • Service Interval: 1000 hour oil change interval
  • Fuel Tank: 63-gallon fuel tank extends operation
  • 195 to 214 hour run time with 350 watt LED
  • Liquid-Cooled Engine
  • Operating Temperatures: Of -40 degrees Fahrenheit (Arctic Package required) to 120 degrees Fahrenheit
  • Welded Steel Frame with Lockable Door
  • (4) LED Light Fixtures 350W: Each 51,112 per lamp, 204,488 total
  • (4) LED Light Fixtures 250W: Each 38,081 per Lamp, 152,324 Total
  • Arctic Package (includes 120V immersion style block heater & HD battery)
  • 250W LED Lights
  • LED Diffuser Panels
  • Custom Paint
  • Telematics Package (customer supplied - standard factory lead time for design)
  • Galvanized Tower
  • Electric Winch
  • Reversible Coupler Ball and Lunette Ring (no Bulldog)
  • Lunette Ring (no Reversible Coupler)
  • Bulldog Hitch (no Reversible Coupler)

All machines are not available at all locations.

View Brochure

Main Technical Specifications
MAKE Allmand
MODEL Night-Lite GR-Series Liquid-Cooled 6kW

Why rent when you can own?

Call us to see if ownership makes economical sense for you and your organization.

Allmand Night-Lite GR-Series Liquid-Cooled 6kW

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Allmand Night-Lite GR-Series Liquid-Cooled 6kW Light Tower for Rental

The Night-Lite™ GR-Series Liquid-Cooled 6kW light tower: bigger, brighter light and longer run times—so you get more done on the jobsite.

  • 63-gallon fuel tank: 195 to 215-hour run time with 350-watt lights
  • Four 350-watt LED fixtures produce 2,488 total lumens and 38,610 ft2 area at 0.5 ft-c: 19% more lumen output and 13,0102
  • Best-in-class 1,000-hour oil change interval: lower maintenance expenses.
GENERAL INFORMATION
Manufacturer
Allmand
Model Year
Model
Night-Lite GR-Series Liquid-Cooled 6kW
Condition
NEW
Body
Number of Units
18 (48’ Flatbed) 20 (53’ Flatbed)
Dimensions
Length
87.5” (w/tongue up) 107.25” (w/tongue down)
Width
98” 50.5” (Transport)
Height
276” 98.5” (Transport)
Weight
1,355 lbs. (shipping – No Fuel) 1,310 lbs. (Net – Dry – Cat) 1,345 bs. (Net – Dry – Kubota) 1,750 lbs. (Net – Wet – Cat) 1,790 lbs. (Net – Wet – Kubota)
Engine
Engine Make
Kubota & Cat
Engine Model
Kubota D1005 & Cat C1.1
Engine Type
Tier 4 Final
Horsepower
11.6 HP (Kubota) 13.8 HP (Cat)
Fuel Tank Capacity
63 Gallons
Watts
250 W & 350 W
Outlets
Single 120V/20A Duplex GFCI, Single 120V/30A RV, Single 240V/30A 4 Prong Twistlock
Prime Power
6kW
Operational
Lumens
204,488
Operating Time
Kubota: 214 Hrs (350 W LED) Cat: 195 Hrs (350 W LED)
Shipping
18 units on a 48’ flatbed trailer 20 units on a 53’ flatbed trailer
LED Life
50,000 hrs.
Light Output
51,122 Lumens Per Lamp (Cat)
