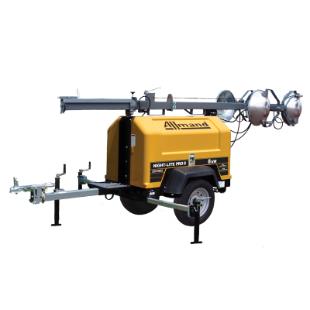

New Allmand Night-Lite Pro II LD-Series Light Tower for Rental The Allmand Night-Lite Pro II® LD-Series™, features the SHO-HD lamp fixtures that provide 135,500 lumens per lamp, more than competitive light towers. The 30 gallon polyethylene fuel tank, this eliminates contamination from rust and corrosion to keep your light tower running longer. The optional full fluid containment system also holds up to 110% of all on-board fluids, protecting sensitive environments from inadvertent leaks and spills. This dependable light tower will maximize your jobsite and keep it running all through the night while providing a number of other features that makes it the obvious choice compared to industry competitors. |
| Body | |
|---|---|
| Frame | Formed, welded steel frame |
| Axles | Tubular axle with elliptical leaf springs |
| Lighting | Sequenced Lighting System (SLS). System automatically turns on lights after engine start and delays engine shutdown to turn off lights first to prevent generator from shutting down while under load. |
| Trailer | Standard features: -Remote engine oil drain easily accessible at rear of trailer -Forklift pockets -Lift ring -Tie down rings -Removable tongue Optional: -Fluid Containment System (FCS) holding up to 110% of all on-board fluids only with Arctic Package |
| Stabilizers | Four-point design - Tongue jack, two retractable side outriggers at front of trailer, rear jack |
| Light Type | Metal Halide SHO-HD fixture |
| Tower Features | Structure-3 section tubular steel design Actuation-manual winch to bring tower to vertical position, and second manual winch to raise tower Guide pads-polyethylene self lubricating |
| Towing Connection | Adjustable height combination 2 in. ball, 3 in. pintle towing hitch / Standard - 2 in (50.8 mm) ball coupler |
| Legacy Material Number | NLPLD2 |
| Door | Reaction Injection Molded (RIM) gull-wing style with lockable latch |
| Dimensions | |
|---|---|
| Length | Outriggers-125.2 in Transport-176.3 in |
| Width | Transport-58.3 in Outriggers-98.8 in |
| Height | Mast Lowered-73.3 in Tower Raised/Maxim-350 In (8,890 mm) or 29' - 2" (8.9 m)* |
| Weight | Shipping: 1,695 lbs. |
| Gross Vehicle Wt Rating (GVWR) | 2,200 |
| Engine | |
|---|---|
| Engine Make | Kubota |
| Engine Model | D1005 |
| Horsepower | 11.7 HP |
| Fuel Tank Capacity | 30 gallons |
| Battery | 550 CCA @ 0°F Optional: 775 CCA @ 0°F only with Arctic Packages |
| Electrical System | 12 volt electric; glow plug cold starting system |
| Watts | 1250 |
| Emission Standards | Tier 4 Final |
| Phase | 1-phase |
| Outlets | Standard - 20 A 120 VAC duplex GFCI outlet / 30 A 240 VAC 4-Wire Twist Lock (NEMA L14-30R) |
| Power Cable | Straight cable secured at top of each section to minimize possibility of tangling |
| Operational | |
|---|---|
| Tires | ST175/80D13 lad range 'C' |
| Frequency | 60 Hz |
| Generator | Standard - 120 / 240 VAC capacitor regulated |
| Trailer Lights | Stop, turn, tail lights Side marker lights Illuminated license plate bracket Standard - 4-way flat connector |
| Operating Speed | Operating Wind Speed: 55 MPH |
| Lumens | 135,500 per lamp 542,000 total lumens LED Lumens (total)-175 |
| Operating Time | 48.4 hours |
| Number of Luminaires | 4 |
| Fixture Positioning | Fixtures can be adjusted with tower in lowered position. Light tower with fixtures can be rotated 359° at any height. |
| Shipping | 12 units on a 48' or 53' flatbed |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
