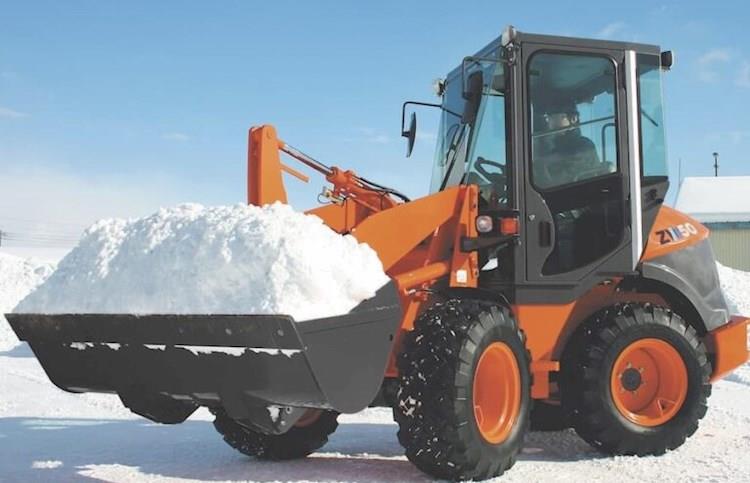

Hitachi ZW50-5B Loader for Sale THIS COMPACT LOADER DELIVERS. The Hitachi ZW50 is a compact loader that delivers on all levels: productivity, comfort, advanced technology, environmental performance and easy maintenance. |
| Dimensions | |
|---|---|
| Length | 17’11” |
| Width | 5’5” (outside tire) 5’7” (outside bucket) |
| Height | 8’5” (up to cab top canopy) 8’6” (up to cab top cab) 13’6” (bucket fully raised) |
| Wheelbase | 6’1” |
| Ground Clearance | 12” |
| Turning Radius | 10’3” |
| Operating Weight | 8,810 lbs. (canopy-bucket) 9,350 lbs. (cab-bucket) 8,860 lbs. (canopy-fork) 9,370 lbs. (cab-fork) |
| Tread | 4'2" |
| Loader Clearance Radius | 13'2" (fork in carry position) |
| Fork Tine Length | 3'11" |
| Fork Height | 4'10" (Max Reach) |
| Fork Width | 4' |
| Engine | |
|---|---|
| Engine Make | Kubota |
| Engine Model | D1803-CR-TIE4 |
| Engine Type | Diesel Engine; direct injection with turbocharger and air cooled intercooler |
| Cylinders | 3 |
| Gross Horsepower | 44 HP |
| Net Horsepower | 42 HP |
| Cooling | Water-Cooled |
| Bore x Stroke | 3.4” x 4.0” |
| Displacement | 112 in³ |
| Speed - Foreward | Low: 5.0 MPH (Normal Mode) Auto: 10.6 MPH (Normal Mode) |
| Speed - Reverse | Low: 5.0 MPH (Normal Mode) Auto: 10.6 MPH (Normal Mode) |
| Gears | Limited slip differential (LSD) |
| Air Cleaner | Dry type (double element) with restriction indicator |
| Fuel Type | #2 Diesel (Requires ultra-low sulfur fuel) |
| Fuel Tank Capacity | 11.1 Gallons |
| Starter | DC 12V-2.7 HP |
| Battery | 12V-800CCA (70Ah), 2 units |
| Alternator | DC 12V-70A |
| Governor | All speed electrical type |
| Rated RPM | 2400 RPM |
| Cycles | 4 |
| Fuel Injection Pump | Electronically controlled, common rail type |
| Cooling Module Type | Forced circulation type |
| Final Reduction Gear | Inboard mounted, heavy duty planetary gear |
| Drivetrain | |
|---|---|
| Axles | Semi-floating type, fixed to the front frame, trunnion support |
| Transmission Type | Hydrostatic transmission (HST) automatically controls power and 2-speed |
| Drive System | 4-wheel drive |
| Brakes | Service Brakes: Wet disc in reduction gear box Parking/Emergency Brakes: Spring-applied, hydraulically-released wet disc |
| Tires | 15.5/60-118 8PR (L-2) |
| Hydraulic | |
|---|---|
| Pump | 13.9 GPM/1000 PSI @ 2400 RPM (Main Oil Pump) 4.0 GPM/3260 PSI @ 2400 RPM (HST charging pump) |
| Hydraulic Tank Capacity | 7.1 Gallons |
| Hydraulic Cylinders | Lift (Boom) cylinder: Two (2) double-acting piston type: 2.8” x 20.9” Tilt (Bucket) cylinder: Two (2) double-acting piston type: 2.8” x 17.7” Steering cylinder: Two (2) double-acting piston type: 2.4” x9” |
| Hydraulic Cycle Time | 5.0 sec. (Lifting time at full load) 3..0 sec. (Lowering time – empty) 1.0 sec. (Bucket Dumping Time) 9.0 sec. Total |
| Relief Valve Setting | 2987 PSI, 20.6 MPa |
| Operational | |
|---|---|
| Dig Depth | 2” |
| Tipping Load | 4,040 lbs. (Straight Tip—ROPS/FOPS Canopy) 3,200 lbs. (Full Turn Tip—ROPS/FOPS Canopy) 4,260 lbs. (Straight Tip—ROPS/FOPS Cab) 3,420 lbs. (Full Turn Tip—ROPS/FOPS Cab) |
| Bucket Capacity | 0.8 yd³ |
| Dump Reach | 3’3” |
| Steering | Articulated frame steering. Full hydraulic power steering unit, pilot operation |
| Max. Reach | 4’10” |
| Breakout Force | 5,530 lbf. |
| Oscillation Angle | Total 16 (+8, -8)° |
| Operating Load | 1,600 lbs. |
| Operating Capacity | 0.8 yd³ (heaped) 0.7 yd³ (struck) |
| Dump Clearance | 7’10” |
| Hinge Pin Height | 10’4” (bucket) 2’6” (reach) 10’2” (fork height) |
| Clearance Circle | 10’3” (outside of bucket) 12’8” (outside of tire) |
| Static Tipping Load | 5,510 lbs. (ROPS/FOPS canopy-Straight) 4,480 lbs. (ROPS/FOPS canopy-Full Turn) 5,840 lbs. (ROPS/FOPS cab-Straight) 4,760 lbs. (ROPS/FOPS cab-Full Turn) |
| Steering Mechanism | Double-acting piston type |
| Operating Height | 8'5" |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Hitachi |
| MODEL | ZW50-5B |
