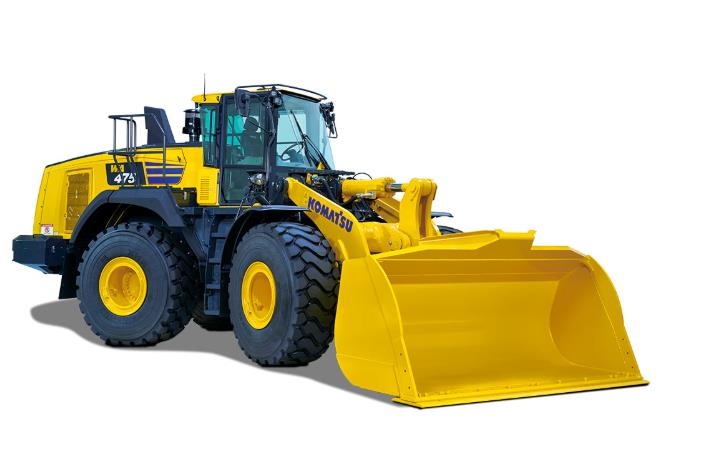

New Komatsu WA475-10 Loader for Sale The newly designed WA475-10 features next-generation technology developed with input from customers like you to deliver improved productivity and lower fuel costs. Ideal for quarry, waste, infrastructure, forestry, and non-residential construction applications.
Fuel efficient yet powerful: Dual-mode engine power selector offers two operating modes: economy and power. The innovative Komatsu Hydraulic Mechanical Transmission (KHMT) improves fuel economy by up to 30% versus the prior model while providing 18 more horsepower. Simplified, fuel-saving controls: Independent work equipment control separates the accelerator pedal from the speed of the work equipment. Your operators operate the bucket with levers only for greater control, and can approach trucks with no brake dragging, thus improving fuel economy. Steering choices for operators: Choose a standard steering wheel or the new optional Advanced Joystick Steering System (AJSS), designed to minimize operator fatigue. AJSS provides precise wrist and finger steering and control, even during full speed travel. Multi-function load meter: Measure the weight in the bucket by simply pressing a switch. Dump monitoring allows for real-time monitoring of the weight of any material in the bucket after dumping. Empty bucket calibration can be done anytime to ensure accuracy. Bucket engineered for productivity: A redesigned bucket focused on boosting productivity. Generous curves on the side wall better retain material, and a wrap angle enhances pile penetration to make the bucket easy to fill. Material retention has been improved in load and carry operations. Cab blends comfort and utility: A redesigned cab for a spacious, ergonomic comfortable environment. Additional glass in key areas improves visibility. Frequently used switches are at eye level, allowing operators to stay focused on the work environment. Comfortable seat helps fight fatigue: A more comfortable ride to reduce fatigue over long shifts with a new air suspension seat that enhances support on rough roads and dampens machine vibrations. Optional Multi-Function Monolever is also available. Fast recall of boom positions: Designed for convenience and efficiency, boom positions are adjustable in the cab with the push of a button. The bucket positioner can memorize three horizontal settings so the operator can easily change attachments without having to reset the bucket position. Monitor system offers full rear view: An exceptional view behind the machine with a full color monitor placed at eye level in the cab. The monitor can be set “always on” or only when the loader goes into reverse. Visual reference guidelines offer an additional safeguard. Less fuel lost when idling: Save fuel by reducing idle time with the Komatsu Auto Idle Shutdown. It shuts the engine off and applies the barking brake and hydraulic lock after a preset idle time limit. Full front and rear fenders: Full access to the engine compartment with standard full front and rear fenders that raise when the engine hood is opened. Front fenders are equipped with an extension that minimizes debris strike when operating in reverse. Electronic tilting engine hood: Easy access and service with a one-piece engine hood that can quickly be opened with a switch located on the left side of the machine near the battery box. Two side doors allow easy access for daily checks. |
Dimensions | |
---|---|
Length | 30’2”-31’10” |
Width | 10’-10’4” |
Height | 11’4” (top of the stack) 11’5” (ROPS cab) 11’8” (top of roof rail) |
Weight | 56,239-60,759 lbs. |
Wheelbase | 11’4” |
Ground Clearance | 1’8” |
Turning Radius | 21’9” |
Steering Angle | 35° (40° to max end stop) |
Bucket Weight | 4,647-5,456 lbs. |
Engine | |
---|---|
Engine Make | Komatsu |
Engine Model | SAA6D125E-7 |
Cylinders | 6 |
Gross Horsepower | 291 HP |
Net Horsepower | 290 HP |
Cooling | Water-cooled |
Bore x Stroke | 4.9” x 5.9” |
Displacement | 674 in³ |
Gears | Reduction: Spiral bevel gear Differential: Conventional type Final reduction: Planetary gear, single reduction |
Air Cleaner | Dry type with double elements and dust evacuator, plus dust indicator |
Fuel Tank Capacity | 100.3 Gallons |
Governor | All-speed, electronic |
Rated RPM | 1600 RPM |
Lubrication System | Method: Gear pump, force-lubrication Filter: Full-flow type |
Aspiration | Turbo-charged, after-cooled, cooled EGR |
Fuel System | Direct injection |
Cycles | 4-cycle |
Fan Drive Type | Hydraulic |
Drivetrain | |
---|---|
Axles | Front: Fixed, semi-floating Rear: Center-pin support, semi-floating, 26° total oscillation |
Transmission Type | Hydraulic Mechanical planetary type |
Drive System | Four-wheel drive |
Brakes | Service: Hydraulically actuated, wet disc brakes actuate on four wheels Parking: Wet multiple-disc brake Emergency: One of dual service brake circuits is commonly used |
Hydraulic | |
---|---|
Control Valve | 2 spool type |
Hydraulic Tank Capacity | Steering: 41.7 Gallons Loader: 88.00 Gallons |
Hydraulic Cylinders | Double-acting, piston type Number of cylinders x bore x stroke Steering: 2 x 3.7” x 17.4” Loader Lift Cylinder: 2 x 5.9” x 30” Loader Bucket Cylinder: 1 x 7.0” x 21.2” |
Hydraulic Cycle Time | Raise: 5.8 secs Dump: 1.8 secs Lower (Empty): 3.1 secs |
Relief Valve Setting | Steering: 3,555 PSI Loader: 5,120 PSI |
Hydraulic Pump | Steering: Piston Type Loader: Piston Pump |
Operational | |
---|---|
Bucket Width | 10’5”-10’6” |
Dig Depth | 4.1”-9” at 0° 1’3”-1’7” at 10° |
Tipping Load | Straight: 45,283 lbs. (General Purpose Bucket) & 44,511 lbs. (Loose Material Bucket) 40° full turn: 39,176 lbs. (General Purpose Bucket) & 38,481 lbs. (Loose Material Bucket) |
Bucket Capacity | 5-6.8 yd³ (heaped) 4.2-5.9 yd³ (struck) |
Bucket Breakout Force | General Purpose Bucket-44,332 lbs. Loose Material Bucket-42,713 lbs. |
Steering | Articulated type, fully-hydraulic power steering |
Travel Speed - Forward | 1.9-23.6 MPH |
Travel Speed - Reverse | 1.9-17.4 MPH |
Max. Reach | 4’5”-4’11” |
Breakout Force | 38,465-46,405 lbs. |
Control Positions | Boom: Raise, hold, lower, and float Bucket: Tilt-back, hold, and dump |
Dump Clearance | 9’7”-12’ |
Hitch Height | 3’11” (Standard Boom) 4’ (High Lift Boom) |
Hinge Pin Height | 14’4” (Standard Boom Max. Height) 16’ (High Lift Boom Max. Height) 1’11” (Standard Boom Carry Position) 2’4” (High Lift Boom Carry Position) |
Static Tipping Load | 39,820-49,185 lbs. (Straight) 34,238-42,439 lbs. (40° full turn) |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
Main Technical Specifications | |
---|---|
MAKE | Komatsu |
MODEL | WA475-10 |
