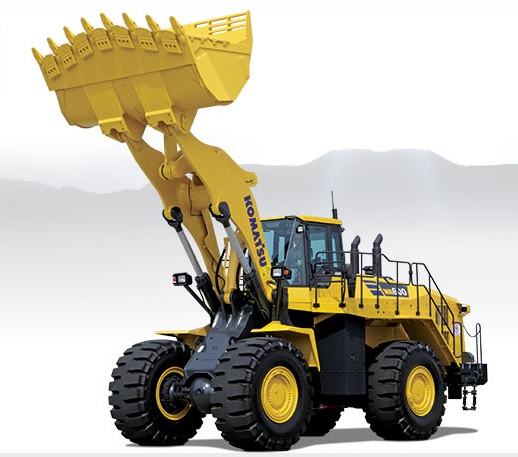

New Komatsu WA600-8 Loader for Sale High breakout force makes this wheel loader ideal for tough digging applications. A quiet cab and the advanced joystick steering system enhance operator comfort.
New bucket design: A new bucket design helps make this loader up to 7% more productive. Easy to operate: The Advanced Joystick Steering System (AJSS) and Electronic Pilot Control (EPC) work equipment controls work in tandem to make this wheel loader easy to operate. Variable traction control system: Maximum rimpull can be adjusted from 100% to 20% to match ground conditions and reduce tire slippage. Throttle lock: The engine’s RPM can be set to a constant speed for faster cycle times, while the auto-deceleration feature lowers the engine to low idle when an operator command is not sensed, which can help reduce fuel consumption. Smooth approaches: The modulation clutch controls the tractive effort with the left brake pedal from 100% to 20% of available rimpull output, enabling smooth approaches and speed reduction when loading haul trucks. Comfortable: A newly designed, low-noise cab features an air suspension, heated seat that increases operator comfort. Electronically Controlled Suspension System: An electronically controlled suspension system absorbs shock from the boom which helps reduce operator fatigue and material spillage. SmartLoader Logic: To reduce fuel consumption, SmartLoader Logic senses the power requirement and matches torque output to application. Integrated payload meter: A payload meter displays a variety of data on the cab’s monitor panel. Payload data can also be accessed remotely with Komtrax Plus. Two operating modes: Dual operating modes allow the operator to select Power for enhanced engine performance or Economy for lower fuel consumption. Rearview monitor: A rearview monitoring system features a dedicated color monitor. This monitor can always be on, or only on when the loader moves in reverse. Easy Maintenance: To promote equipment longevity, onboard diagnostics alert you when your wheel loader needs to be serviced. A swing-out, reversible hydraulic fan and a modular radiator core make cleaning and maintenance easy. |
| Dimensions | |
|---|---|
| Length | 39’6”-40’1” |
| Width | 11’9” |
| Height | 14’4” (top of the stack) 14’9” (ROPS cab) |
| Weight | 122,136-126,678 lbs. |
| Wheelbase | 14’9” |
| Ground Clearance | 1’9” |
| Turning Radius | 23'3" |
| Steering Angle | 43° (each direction) |
| Bucket Weight | 12,767-13,563 lbs. |
| Engine | |
|---|---|
| Engine Make | Komatsu |
| Engine Model | SAA6D170E-7* |
| Cylinders | 6 |
| Gross Horsepower | 530 HP |
| Net Horsepower | 529 HP |
| Cooling | Water-cooled |
| Bore x Stroke | 6.69" x 6.69" |
| Displacement | 1413 in³ |
| Gears | Reduction: Spiral bevel gear Differential: Conventional type Final reduction: Planetary gear, single reduction |
| Air Cleaner | Dry type with double elements and dust evacuator, plus dust indicator |
| Fuel Tank Capacity | 189.7 Gallons |
| Governor | All-speed, electronic |
| Rated RPM | 1800 rpm |
| Lubrication System | Method: Gear pump, force lubrication Filter: Full-flow type |
| Aspiration | Variable geometry, turbo-charged, after-cooled, cooled EGR |
| Fuel System | Direct injection |
| Fan Drive Type | Hydraulic |
| Torque Converter | 3-elements, 1-stage, 2-phase |
| Drivetrain | |
|---|---|
| Axles | Front: Fixed, semi-floating Rear: Center-pin support, semi-floating, 22° total oscillation |
| Transmission Type | Automatic full-powershift, planetary type |
| Drive System | Four-wheel drive |
| Brakes | Service: Hydraulically actuated, wet multiple-disc brakes actuate on four wheels Parking: Wet multiple-disc brake Emergency: One of dual service brake circuits is commonly used |
| Hydraulic | |
|---|---|
| Control Valve | 2-spool type |
| Hydraulic Tank Capacity | Steering: 43.1 Gallons Loader: 63.1 + 63.1 Gallons |
| Hydraulic Cylinders | Double-acting, piston type Number of cylinders x bore x stroke Steering: 2 x 4.5” x 20” Loader Boom Cylinder: 2 x 7.9” x 42” Loader Bucket Cylinder: 1 x 8.9” x 30.6” |
| Boom | Raise, hold, lower, and float |
| Bucket | Tilt-back, hold and dump |
| Hydraulic Cycle Time | Raise: 8.7 secs Dump: 2.3 secs Lower (Empty): 4.1 secs |
| Relief Valve Setting | 4,980 PSI |
| Hydraulic Pump | Steering: Piston Type Loader: Piston Pump |
| Operational | |
|---|---|
| Bucket Width | 12’6” |
| Dig Depth | 5” at 0° 1’9”-1’10” at 10° |
| Bucket Capacity | 8.4-10.2 yd³ (heaped) 6.9-8.6 yd³ (struck) |
| Steering | Articulated type, fully-hydraulic power steering |
| Travel Speed - Forward | 1st: 4.2 MPH 2nd: 7.3 MPH; 7.7 MPH with lock-up clutch on 3rd: 12.6 MPH; 13.5 MPH with lock-up clutch on 4th: 21 MPH; 23.4 MPH with lock-up clutch on |
| Travel Speed - Reverse | 1st: 4.5 MPH 2nd: 8.0 MPH; 8.4 MPH with lock-up clutch on 3rd: 13.7 MPH; 14.7 MPH with lock-up clutch on 4th: 23.0 MPH; 25.5 MPH with lock-up clutch on |
| Max. Reach | 6’-6’7” |
| Breakout Force | 79,807-87,083 lbs. |
| Control Positions | Boom: Raise, hold, lower, and float Bucket: Tilt-back, hold, and dump |
| Dump Clearance | 11’10”-13’ |
| Hitch Height | 4’4” |
| Hinge Pin Height | 18’7” (Standard Boom Max. Height) 19’4” (High Lift Boom Max. Height) 2’2” (Standard Boom Carry Position) 2’4” (High Lift Boom Carry Position) |
| Static Tipping Load | 83,434-95,383 lbs. (Straight) 71,964-81,747 lbs. (40° full turn) |
