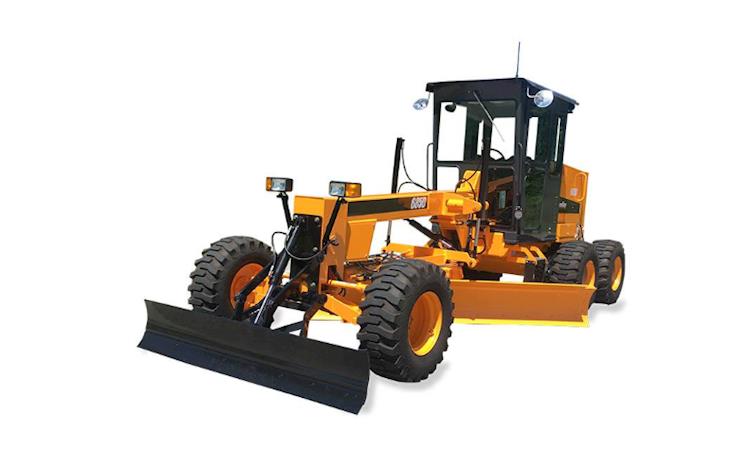

LeeBoy 685D

New LeeBoy 685D Motor Grader/Scraper for Sale

Designed with the functionality of a large motor grader, the more compact 685D can be used in many versatile and specialized applications including spreading base materials, ditch/shoulder projects, fine grading, medium cutting or even snow removal. The noticeable power provided by a Cummins engine merged with smooth transition and hydrastatic-controlled drive, makes this motor grader an all-around must have on any job site. Whether you decide a cab or canopy suits your needs, you can rest assured your visibility will remain unobstructed.
Body
Drawbar 4” x 6” x 0.5” tube
Circle Centered w/six adjustable bolts
Rotates 64° by two hydraulic cylinders
Turn cushion valve protects components from damage
Diameter: 30” heavy-duty circle
Moldboard 11’ x 21” x 5/8”
Replaceable end bits and cutting edge
Float controls, cuts 1’2” below grade w/13” of ground clearance
Tilts 30°, shifts 3’ left or right
Controlled by two hydraulic cylinders mounted to ball joints at turntable
Fully enclosed turntable
Each trunnion mounted to frame by six Excelite bushings
Frame Articulated frame: steel channel and rectangle tubing, articulated 24° in each direction
Pivot shaft 2.5” diameter, supported by two tapered roller bearings
Dimensions
Length 22’3”
Width 7’8”
Height 10’2”; with beacon flipped down-9’7”
Weight 16,000 lbs.
Wheelbase 16’1”
Ground Clearance 14” at the center
Turning Radius 22’ (to center of outside front tire w/frame articulated)
Engine
Engine Make Cummins
Engine Model Tier 4 Final diesel engine, turbocharged
Horsepower 130 HP
Cooling Water-cooled
Fuel Tank Capacity 45 Gallons
Starting System Electric
Powertrain
Speed - Foreward Working: 0-10 MPH
Travel: 0-20 MPH
Brakes Foot operated primary and service brakes
Hydrostatic traction drive system secondary brakes
Control panel switch actuated parking brakes
Spring apply, hydraulic release parking brakes automatically apply when ignition is in “off” position or if system pressure is lost
Pump is de-stroked for secondary braking
Tires Six 15 x 19.5, TL, G-2, 8-ply pneumatic tires
Front Axle Fully welded steel plate design
Traction Drive Hydrostatic drive using a variable pump that drives a variable motor connected to a 2-speed tandem axle. Variable volume hydrostatic drive system provides infinite speed selection in each of the two-speed ranges
Hydraulic
Hydraulic Capacity 30 Gallons
Operational
Hitch 15 ton, heavy-duty, forged rear pintle hitch (rear)
Oscillation Angle Front Axle: 40° supported by tapered roller bearings and bushings with wheel lean of 15° left or right (30° total)
Electrical
Battery Two 12 volt batteries
Altenator 135 amp alternator
Lighting Two rear LED working lights
Two front LED moldboard lights
Two front headlights, signals, flashers
Two rear LED tail lights, signals
Amber LED strobe beacon
  • 130 hp (97 kw) Cummins Tier 4 Final Diesel Engine
  • 11’ (3.35 m) Moldboard
  • Back-up alarm
  • Moldboard Shifts 3’ (.91 m) left or right
  • Hydrostatic Transmission, 2-Speed Tandem Axle
  • Tandem Drive
  • Electronic Gauge Package
  • Fail Safe Braking
  • ROPS/FOPS Cab or ROPS/FOPS Canopy
  • Cushioned, Fully Adjustable Suspension Seat
  • Vandalism Protection Package
  • High temperature, low oil pressure shut down
  • Horn
  • Slow-moving vehicle sign
  • 12V DC power outlet
  • Mounting provisions for Topcon control system sensors
  • Front or Rear Mounted Scarifier Optional
  • All-wheel drive
  • Air conditioning (cab only)
  • Front-mounted V-bar scarifier, includes float control
  • Rear-mounted scarifier, includes 9 ripper shanks w/ teeth
  • 8’ (2.43 m) front blade
  • Front blade mounted flip-down 4 shank scarifier, requires 8’ front blade option
  • Dead engine steering
  • Cold weather engine package
  • Rear wiper and washer (cab only)
  • 12’ (3.65 m) moldboard
  • Circe side shift
  • Radio/CD/Bluetooth w/ dual speakers and remote
  • Back-up/reverse camera with color display
  • Topcon options
    • Topcon Ready Package provides control valve with hydraulic plumbing, sensor cables, and bolt-on brackets for Topcon components.  (Requires customer-supplied Topcon control box, smart knobs, and sensors)
    • Complete factory-installed Topcon System Five, 2D control system
