Fecon FTX300

New Fecon Mulching Tractor for Sale

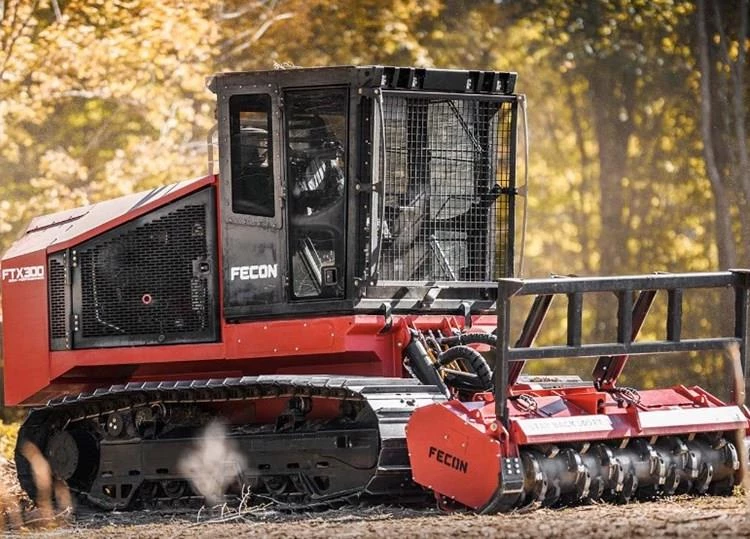

New Fecon FTX300 Mulching Tractor for Sale

This low-ground pressure (3.9 psi) tractor features an oscillating carriage with 30” track shoes, providing balanced traction in hard or soft conditions. A spacious cab features air suspension, heated seat, new larger touchscreen IQAN display, and keyless ignition with security for operator comfort and control. A tilting cab and wide engine compartment doors on the side and read, simplify access for maintenance and service. The FTX300 also features the Fecon Power Management System for unrivaled power and performance in the 300HP class.

  • CUMMINS 6.7L TIER 4 FINAL, STAGE V ENGINE
  • FECON POWER MANAGEMENT SYSTEM
  • FACTORY SERVICE REMOTE CONNECTIVITY STANDARD
  • LARGE 7” TOUCHSCREEN DISPLAY
  • OSCILLATING UNDERCARRIAGE & 30” TRACK SHOES
  • FECON STANDARD WARRANTY 12 MONTHS / 1,000 HRS
  • IMPROVED DURABILITY & SERVICEABILITY
    • Large engine bay doors provide easy access to the entire engine compartment without interference and provides easy access to all points of the FTX300
    • All filters and service points can be reached from the ground, making servicing the FTX300 simple and easy to do in the field
  • FTX300 COOLING CAPACITY
    • Oversized cooling capabilities allow the FTX300 to work at full power in the harshest applications
    • The FTX300 cooling system keeps entire machine in optimal temperature range, prolonging life of both engine and hydraulic components
    • Automatic Hydraulic Reversing Fans for both coolers keep the radiators clean and running at peak efficiency, even in dusty and debris-filled applications
  • FTX300 UNDERCARRIAGE
    • The D4 undercarriage in the FTX300 is designed for the toughest mulching applications, resulting in longer track life and less downtime
    • Ground clearance on the FTX300 is 23”
  • ADVANCED TECHNOLOGY
    • The 7” Touchscreen IQAN controller controls everything from HVAC to the Fecon Power Management System
    • IQAN remote connectivity through a smartphone app allows troubleshooting from anywhere, and on-board troubleshooting enables easy diagnostics, helping operators get back to work quickly
    • Preset operator levels allow for lift arm and tilt speed adjustment, helping to shorten the machine learning curve
  • FECON POWER MANAGEMENT
    • Constant monitoring of the hydraulic circuits allows for engine horsepower to be routed to where it is needed most
    • The system allows for the FTX300 to mulch uphill while maintaining control over both the loader arms and track system
Specs
Class D4
Manufacturer Berco
Mounting Style Pin-On (RK8620 Bullhog Attachment & SH300 Stump Grinder)
Body
ROPS, FOPS & OPS ROPS (ISO 8082, FOPS (ISO 8083) and OPS (ISO 8084)
Attachment TK8620 Bullhog & SH300 Stump Grinder
Dimensions
Length 15’5”
19’4” (w/Bullhog)
Width 7’10”
8’5” (w/Bullhog)
Height 10’5”
Weight 26,980 lbs.
32,092 lbs. (w/Bullhog)
Engine
Engine Make Cummins
Engine Model QSB6.7
Engine Type Tier 4 Final, Stage V
Cylinders 6
Horsepower 310 HP
Displacement 6.7L
Torque 950 ft-lb @ 1500 RPM
Fuel Consumption 7-9 GPH
Fuel Tank Capacity 100 Gallons
DEF Tank Capacity 15 Gallons
Def Consumption 0.4-0.5 GPH
Hydraulic
Hydraulic Tank Capacity 49 Gallons
Mulcher Circuit 115 GPM @ 5400 PSI
Operational
Ground Clearance 23”
Track Width 30”
Travel Speed - Forward 4.5 MPH
Max. Reach 55” (RK8620 Bullhog)
Ground Pressure 4.1 PSI (SAE J1309) (w/Bullhog)
Rollers Top/Bottom 2 top/9 bottom
Grade 32” (Below Grade w/Bullhog) (RK8620 Bullhog)
Slope Rating 50° fore/aft, 43° side/side
Standard Grouser Single
Lift Style Radial Lift Gear (RK8620 Bullhog & SH300 Stump Grinder)
Electrical
Battery Dual 24V
Electrical System 24V
  • Large engine bay doors and open engine bay allows for access to all components without interference and provides easy access to all points of the FTX300
  • All filters and service points on the FTX300 can be reached from the ground, making servicing the machine simple and easy to do in the field
  • Pressurized Cab
  • Air Suspension Seat – Heated
  • Bluetooth Radio
  • USB Charging Ports
  • 15,000lbs Winch
  • Rearview Camera
  • 7” Touch Screen Monitor
  • Job Timers
  • Fecon Power Management
  • Dual Engine Air Cleaner with Pre-Cleaner
  • Reversing Cooling Fan - Hydraulic Driven
  • 3 Points of Egress
  • Roof Skylight
  • Adjustable Joystick Pods
  • Clipped Corner Grousers
  • Trapezoidal Track Mud Reliefs
  • 4 Single, 4 Double Flange Rollers
  • SALT Track Chain
  • Forward and Rear LED Lights
  • Cab Debris Screen
  • Connectivity with Phone App
  • Large Service Doors on Engine Compartment - Lockable
  • In Cab Fire Extinguisher
  • Emergency Stop Button
  • Keyless Start with PIN Protection
  • High Capacity HVAC with Climate Control
  • Standard Forestry Features
  • Final Drive Towing Disconnect
  • Tinted Polycarbonate Windows



  • Severe Duty Forestry Skids
  • Fire Suppression System
  • Auxiliary Engine Heater
  • Positive Air Shut Off
  • CE Certification
  • 1.25” Thick Windshield
  • Auxiliary Battery Group
  • Side Mirrors
