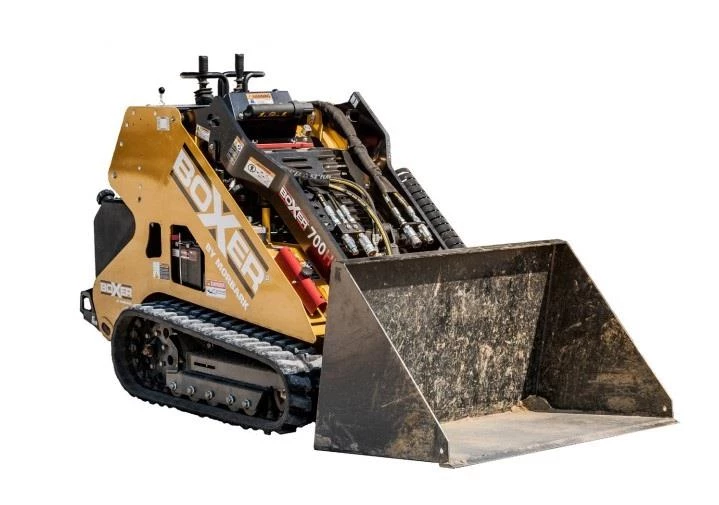

Boxer 700HDX Mini Skid Steer

Boxer 700HDX Mini Skid Steer

New Boxer 700HDX Mini Skid Steer for Sale

The 700HDX features a unique hydraulically expandable undercarriage — from 35″ (89 cm) to 43.5″ (111 cm) — allowing the operator to retract the undercarriage for passages as narrow as 36″ (91 cm) wide then expand for increased stability while in operation by simply pulling or pushing a control lever. With a 24.8-HP (18.5-kW) diesel engine and 11.3 gpm (8.7 lpm) hydraulic auxiliary flow, the 700HDX provides all the power you need for tough jobs. The 700HDX boasts a variety of features, including a redesigned platform with added creature comforts, hydrostatic drive, piloted joystick controls, rubber-isolated engine and hydraulic components, tightened boom tolerances and a whole lot more!
Specs
Warranty Engine: 2 years
Product: 1 year
Dimensions
Length 77” (no attachment)
Width 34.5” (fully retracted)
43.5” (fully extended)
Height 54” (Boom Lowered)
98” (Boom Raised)
Weight 2,880 lbs. (no attachment)
Ground Clearance 5”
Bucket Length 96”
Reach 34”
Engine
Engine Make Kubota
Horsepower 24.8 HP
Fuel Type Diesel
Hydraulic Capacity 24 Gallons
Fuel Capacity 9 Gallons
Cooling System Liquid
Drivetrain
Track Width 9”
Ground Pressure 4.21 PSI
Ground Speed 4.5 MPH
Hydraulic
Hydraulic Flow 27.1 GPM (Total)
11.3/8.7 GPM (Aux-Hi/Low)
7.1 GPM (Drive)
Operational
Dump Height 60”
Dump Angle 37 Degrees
Track Gauge 33.75”
Operating Capacity 707 lbs. (35% of tip load)
Hinge Pin Height 77”
Tip Capacity 2,020 lbs.
  • 24.8-HP (18.5 kW) Kubota D1105 Diesel Engine
  • 2,020 lb (915 kg) tip capacity
  • 707 lb (320 kg) operation capacity (35% tip load)
  • Stand-on platform with generous hip padding and added creature comforts for operator safety and comfort
  • Dual hydrostatic operating system
  • Piloted joystick controls with rocker-activated auxiliaries
  • 2-button pressure relief block
  • 2.5" (64 mm) bore-welded tilt cylinder and two 2" (50 mm) bore-welded lift cylinders
  • 0.25" (6 mm) thick laser-cut base sides and 0.75" (19 mm) thick boom arms
  • Well-balanced and stable, with excellent ground speed
  • Universal compact utility loader mounting plate and quick-attach system to quickly and easily switch between any standard attachment
